Unidesk

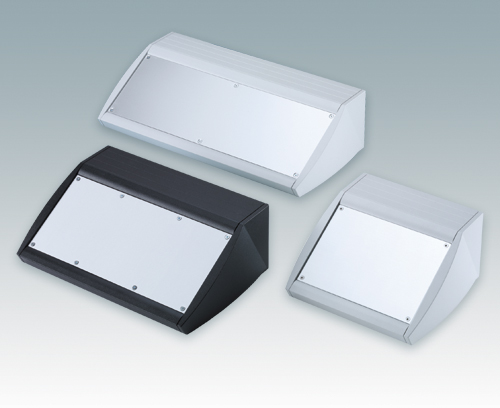

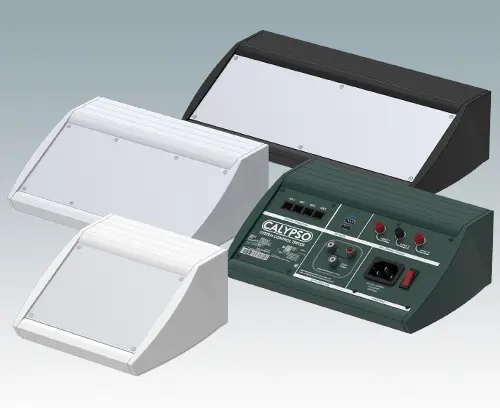

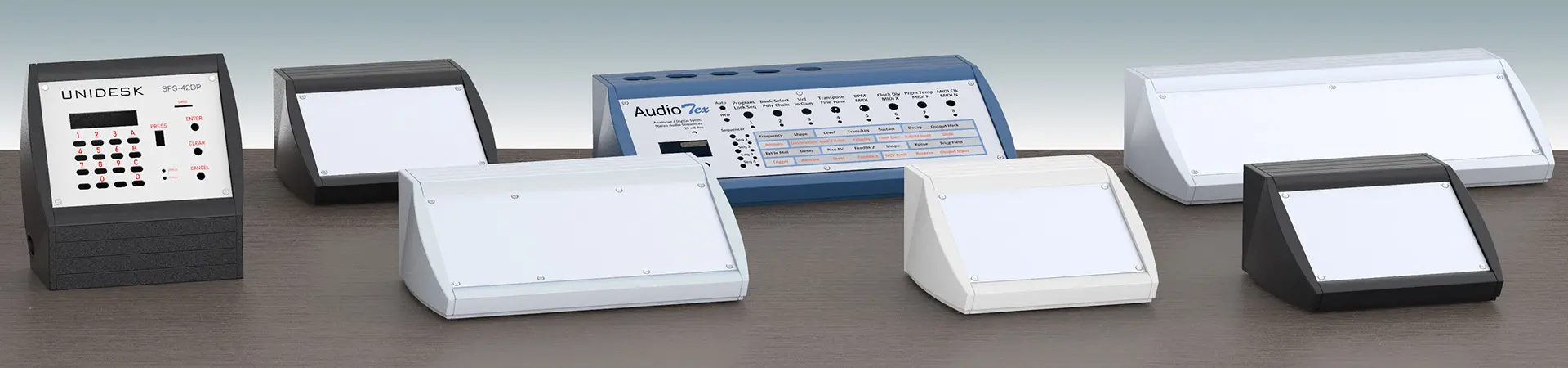

Sloping front terminal enclosures
- Ergonomic aluminum instrument enclosures for desktop and wall mounted applications
- Very robust design in three standard sizes and three colors: traffic white, light gray and black

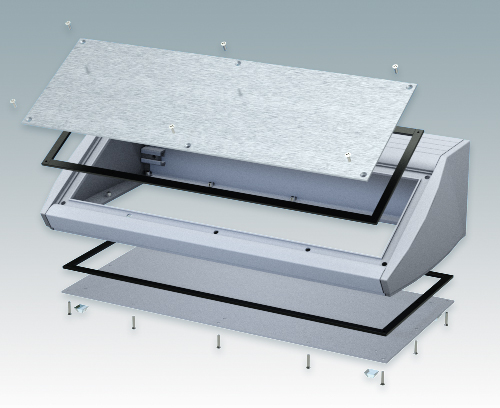

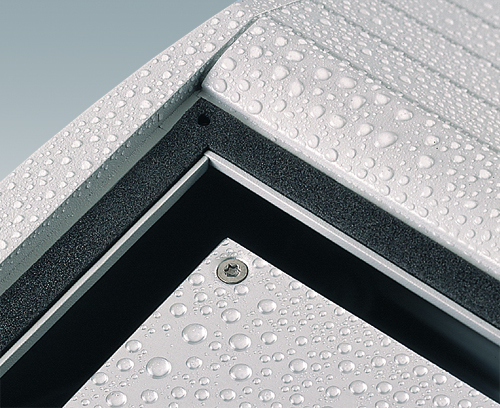

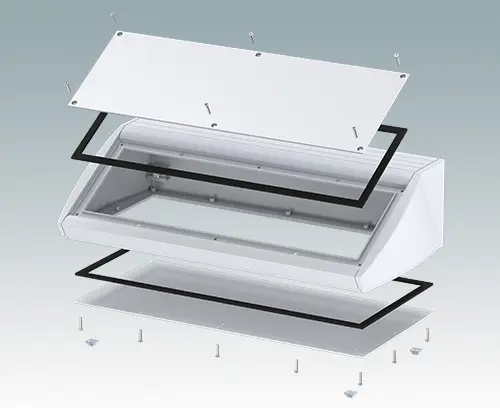

- Optional IP 54 models (VDE tested) with gaskets for the front and base panels

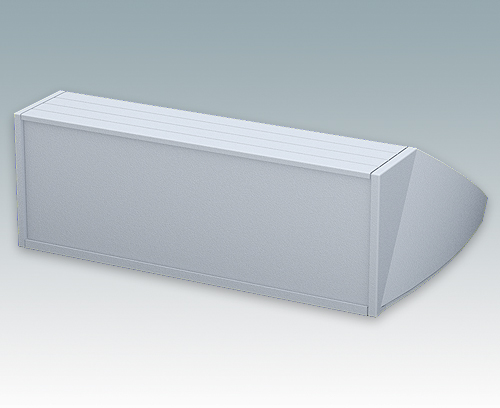

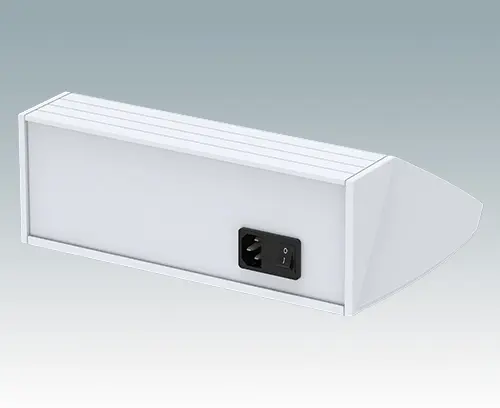

- Pre-assembled aluminum case body with flat rear panel for connectors, switches, power inlets etc.
- Stainless steel M3 Torx® T10 and MS M3 Pozidriv fixings supplied
- Four non-slip rubber feet included

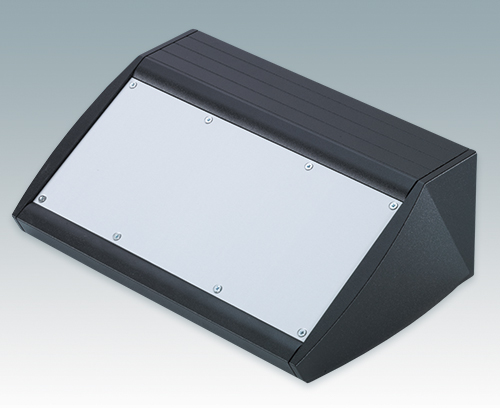

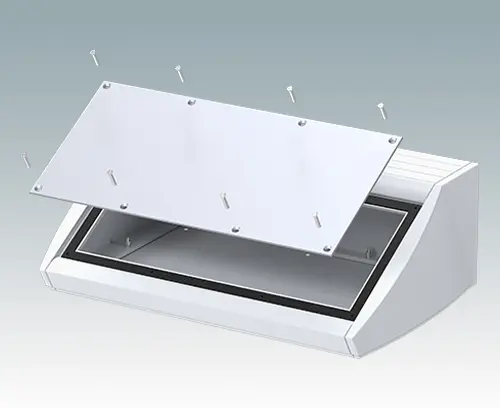

- Accessory front panel is recessed for a membrane keypad

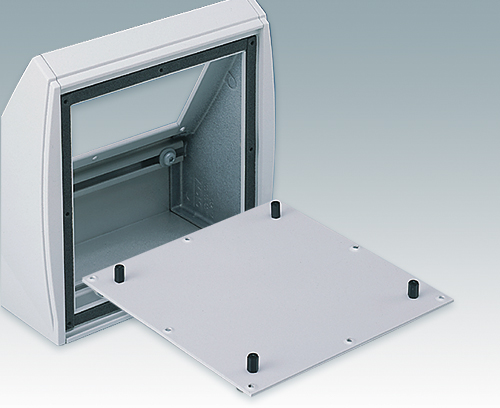

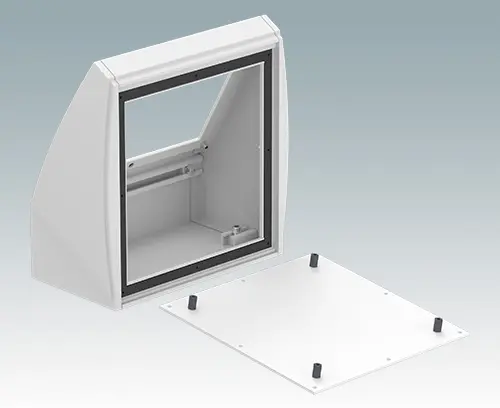

- Pre-punched PCB fixing points in base
- For IP 54 protection accessory PCB pillars are required
- Accessory wall mounting kit.

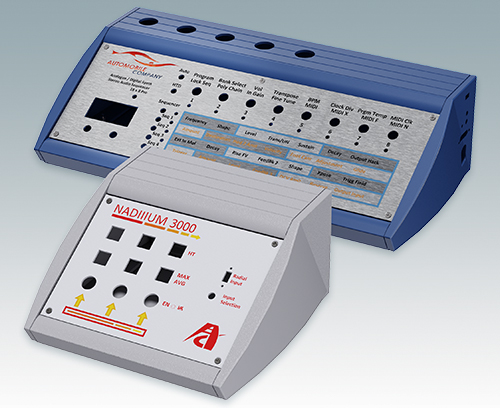

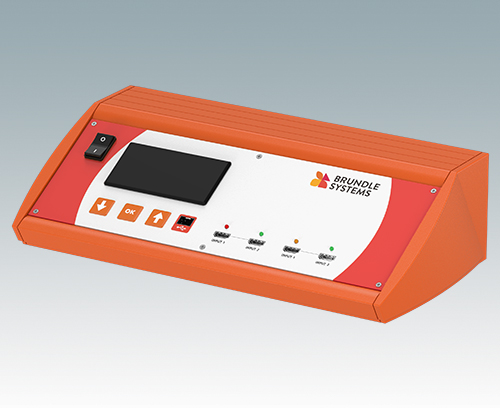

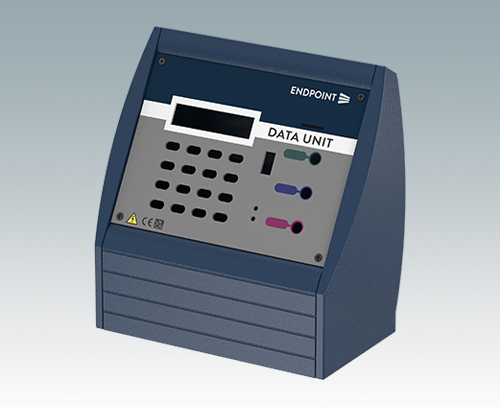

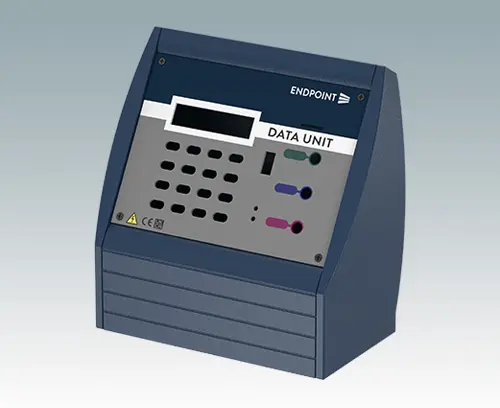

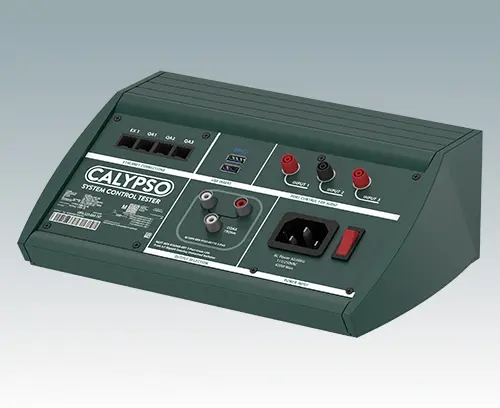

Order your own fully customized version learn more here >>
Application Fields

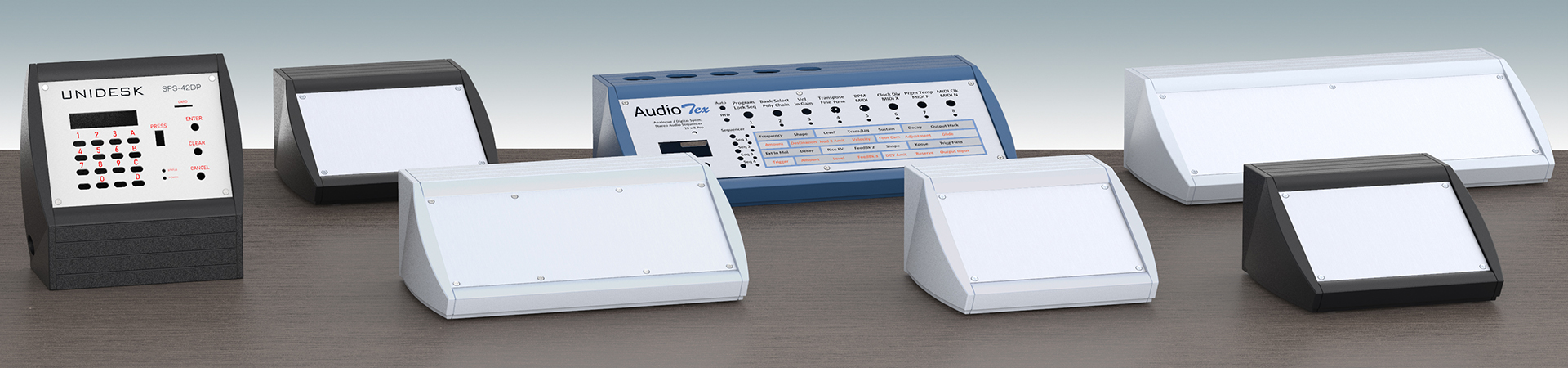

These robust and attractive desktop enclosures are designed for housing modern office systems, point-of-sale terminals, medical devices, industrial control equipment, security units, machine controllers and many other types of electronics and electro-technical terminals.

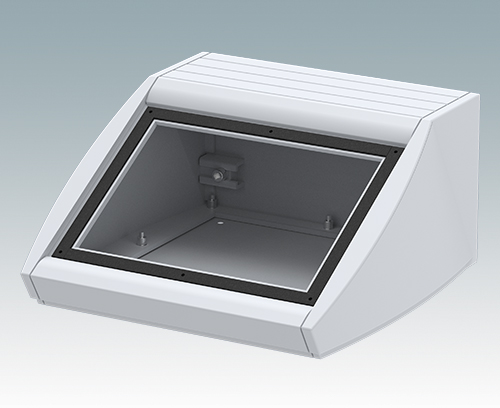

M5320105
UNIDESK M200 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5320105
UNIDESK M200 IP 54product added to your basket
Light gray RAL 7035
7.87″x7.87″x4.02″
M5320106
UNIDESK M200 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5320106
UNIDESK M200 IP 54product added to your basket
Traffic white RAL 9016
7.87″x7.87″x4.02″

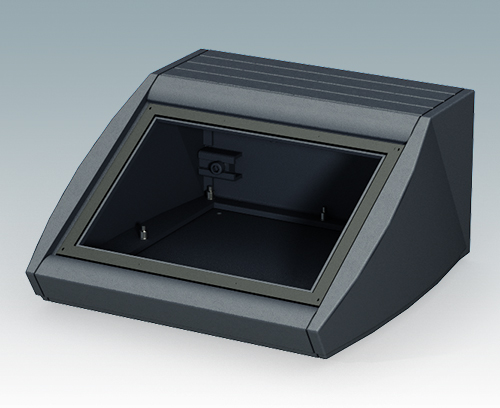

M5320109
UNIDESK M200 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5320109
UNIDESK M200 IP 54product added to your basket
Black RAL 9005
7.87″x7.87″x4.02″

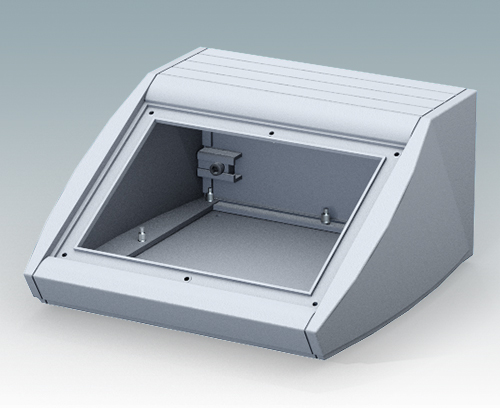

M5320115
UNIDESK M200
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5320115
UNIDESK M200product added to your basket
Light gray RAL 7035
7.87″x7.87″x4.02″
M5320116
UNIDESK M200
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5320116
UNIDESK M200product added to your basket
Traffic white RAL 9016
7.87″x7.87″x4.02″

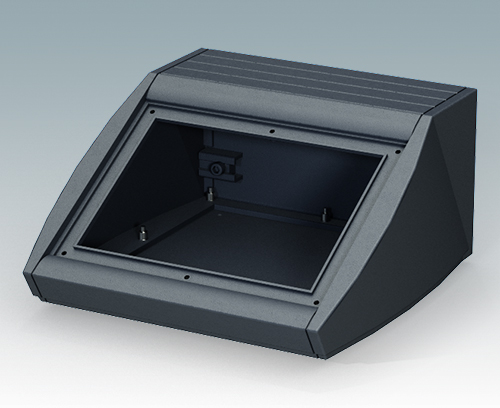

M5320119
UNIDESK M200
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5320119
UNIDESK M200product added to your basket
Black RAL 9005
7.87″x7.87″x4.02″

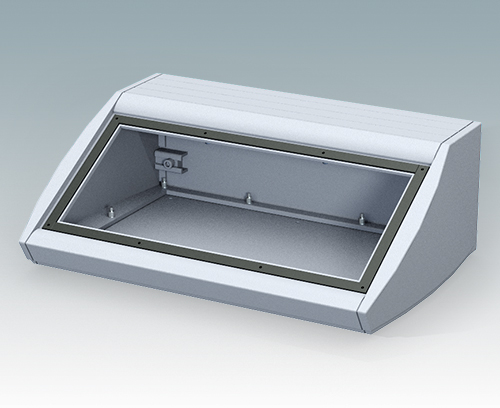

M5330105
UNIDESK M300 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5330105
UNIDESK M300 IP 54product added to your basket
Light gray RAL 7035
11.81″x7.87″x4.02″
M5330106
UNIDESK M300 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5330106
UNIDESK M300 IP 54product added to your basket
Traffic white RAL 9016
11.81″x7.87″x4.02″

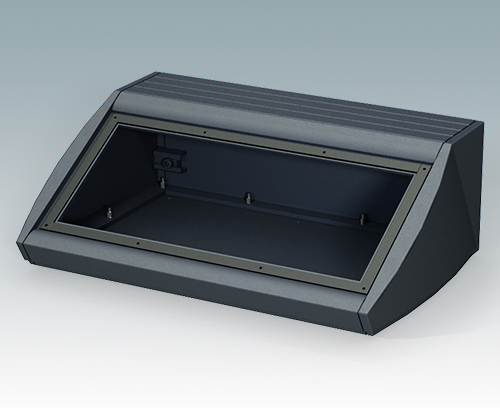

M5330109
UNIDESK M300 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5330109
UNIDESK M300 IP 54product added to your basket
Black RAL 9005
11.81″x7.87″x4.02″

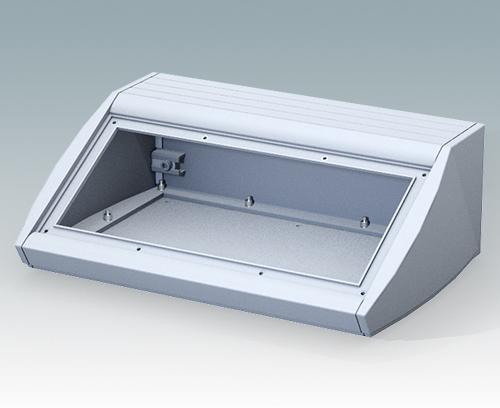

M5330115
UNIDESK M300
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5330115
UNIDESK M300product added to your basket
Light gray RAL 7035
11.81″x7.87″x4.02″
M5330116
UNIDESK M300
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pre-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5330116
UNIDESK M300product added to your basket
Traffic white RAL 9016
11.81″x7.87″x4.02″

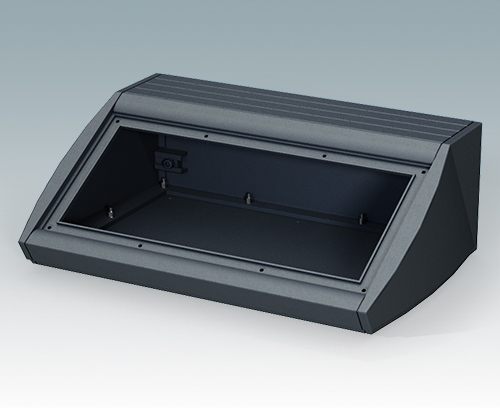

M5330119
UNIDESK M300
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5330119
UNIDESK M300product added to your basket
Black RAL 9005
11.81″x7.87″x4.02″

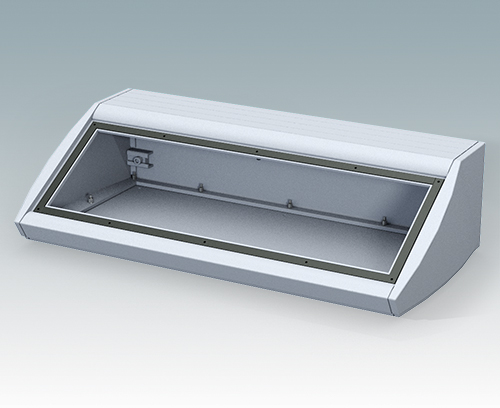

M5340105
UNIDESK M400 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5340105
UNIDESK M400 IP 54product added to your basket
Light gray RAL 7035
15.75″x7.87″x4.02″
M5340106
UNIDESK M400 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5340106
UNIDESK M400 IP 54product added to your basket
Traffic white RAL 9016
15.75″x7.87″x4.02″

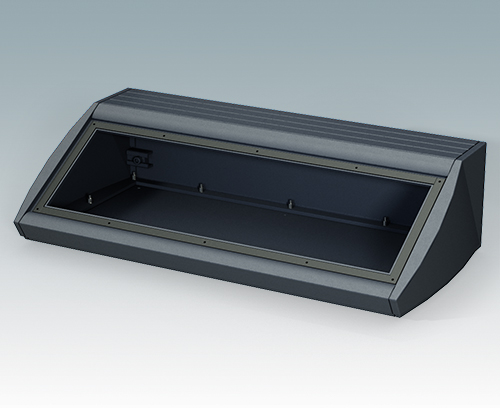

M5340109
UNIDESK M400 IP 54
Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.
Version With sealing gaskets (IP 54)
Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5340109
UNIDESK M400 IP 54product added to your basket
Black RAL 9005
15.75″x7.87″x4.02″

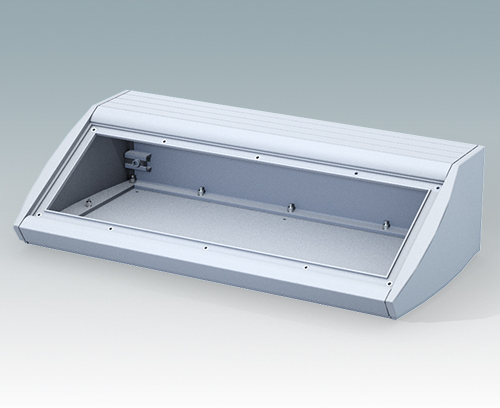

M5340115
UNIDESK M400
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5340115
UNIDESK M400product added to your basket
Light gray RAL 7035
15.75″x7.87″x4.02″
M5340116
UNIDESK M400
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5340116
UNIDESK M400product added to your basket
Traffic white RAL 9016
15.75″x7.87″x4.02″

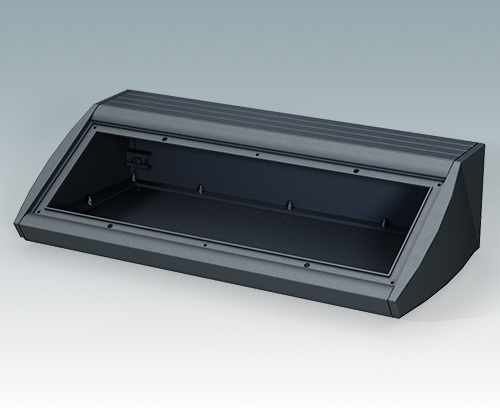

M5340119
UNIDESK M400
Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminum case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections.
Version Without sealing gaskets
Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.
M5340119
UNIDESK M400product added to your basket
Black RAL 9005
15.75″x7.87″x4.02″

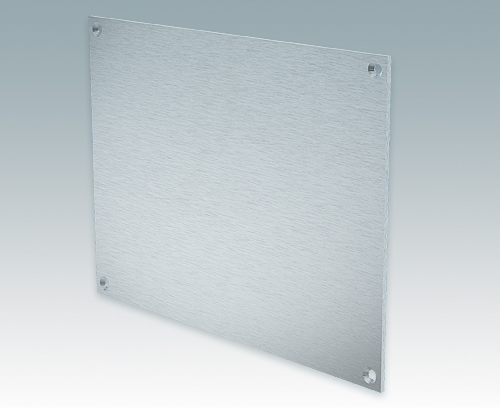

M5301502
Front panel M200
Anodized aluminum front panel for UNIDESK M200 cases
Supply Panel (fixing screws supplied with cases).
M5301502
Front panel M200product added to your basket
Matt anodized
6.69″x0.08″x4.84″
M5301503
Front panel M300
Anodized aluminum front panel for UNIDESK M300 cases
Supply Panel (fixing screws supplied with cases).
M5301503
Front panel M300product added to your basket
Matt anodized
10.63″x0.08″x4.84″

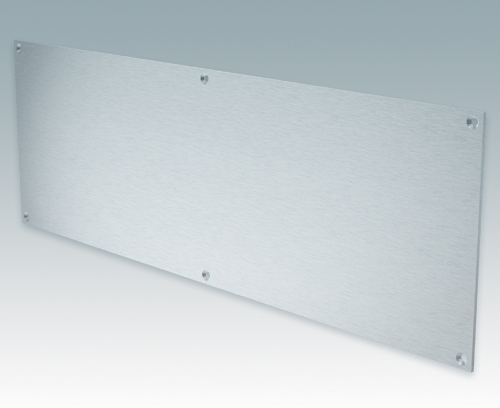

M5301504
Front panel M400
Anodized aluminum front panel for UNIDESK M400 cases
Supply Panel (fixing screws supplied with cases).
M5301504
Front panel M400product added to your basket
Matt anodized
14.57″x0.08″x4.84″

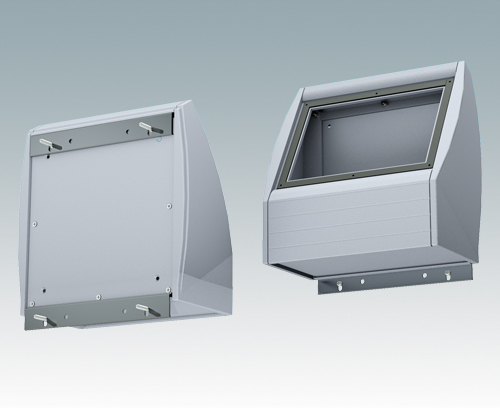

M5302212
Wall mount kit M200
Wall mounting kit for UNIDESK M200 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.
Supply 2 anodized extrusion profiles
M5302212
Wall mount kit M200product added to your basket
Matt anodized
M5302213

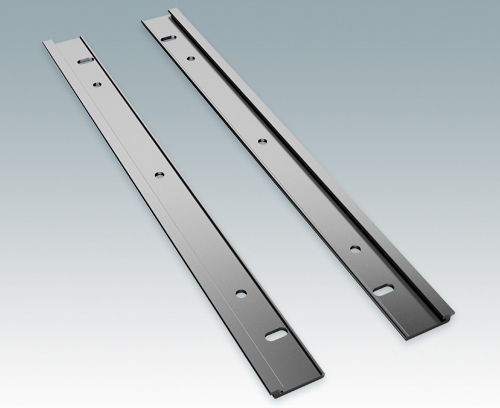

Wall mount kit M300
Wall mounting kit for UNIDESK M300 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.
Supply 2 anodized extrusion profiles
M5302213
Wall mount kit M300product added to your basket
Matt anodized
M5302214

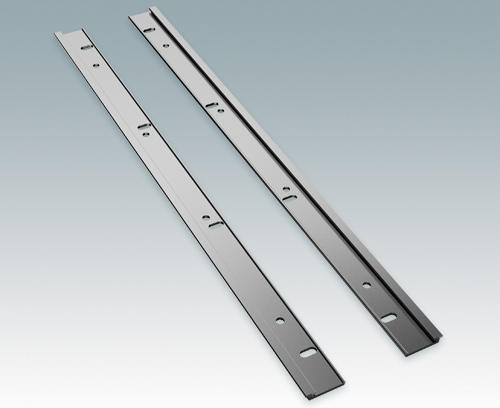

Wall mount kit M400
Wall mounting kit for UNIDESK M400 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.
Supply 2 anodized extrusion profiles
M5302214
Wall mount kit M400product added to your basket
Matt anodized
M5600001
PCB mounting kit
Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.
If PCB or mounting plate fixing screws are required please see our screw kit M5600010.
If PCB or mounting plate fixing screws are required please see our screw kit M5600010.
Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.
M5600001
PCB mounting kitproduct added to your basket
Black RAL 9005
M5600010
PCB Fixing Screws, M3
Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET
Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.
Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.
Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).
M5600010
PCB Fixing Screws, M3product added to your basket
Zinc coated
0.24″
- UNIDESK catalog (English) 3,237 KB
- Catálogo UNIDESK (Español) 3,304 KB
- UNIDESK assembly instructions 422 KB
