Datamet

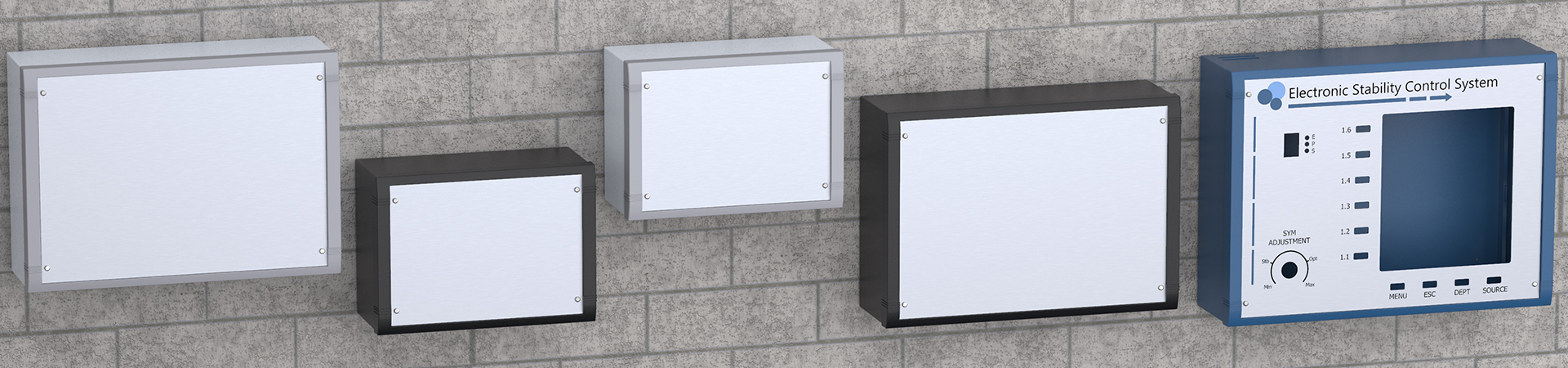

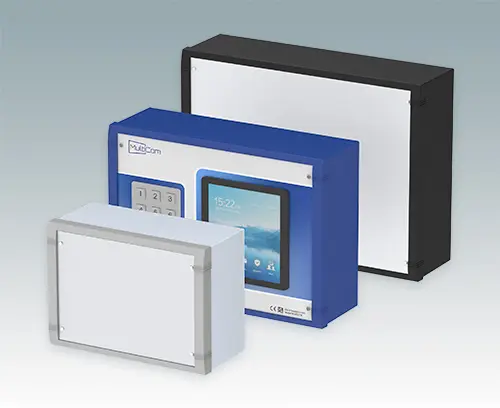

Wall mount enclosures for indoor electronic instruments, controls and HMI

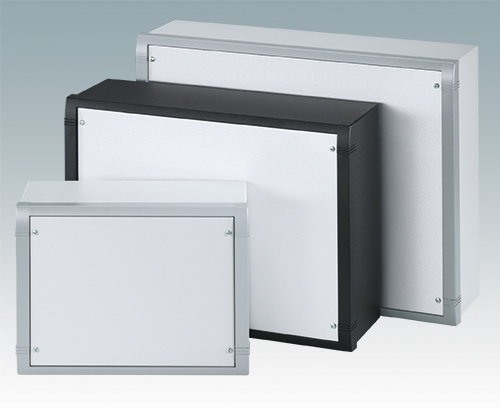

- Very modern design in three standard sizes
- Total access to the electronics during installation and servicing

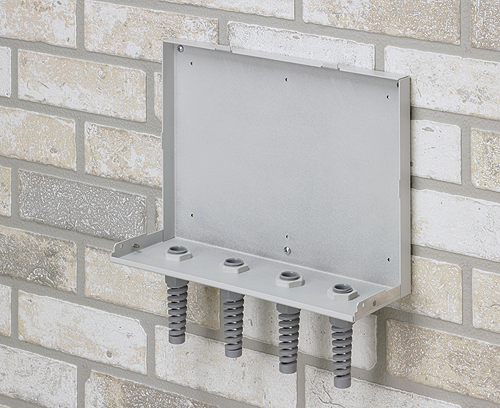

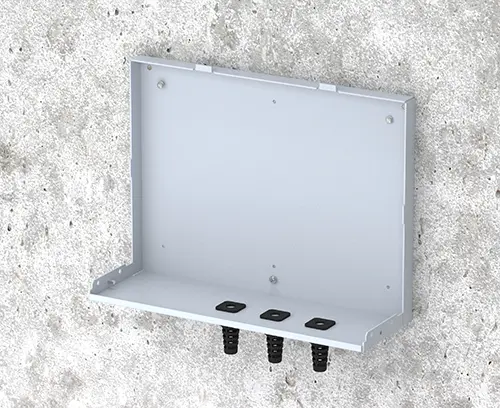

- Rear section includes holes for fitting PCBs and internal mounting plates

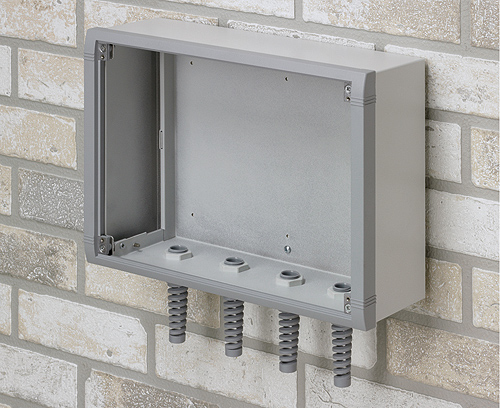

- Cable glands and connectors can be mounted to the underside of the rear section

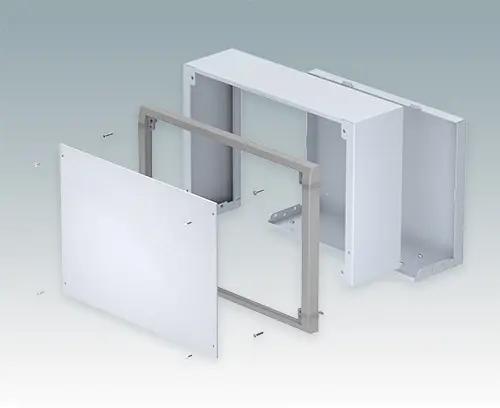

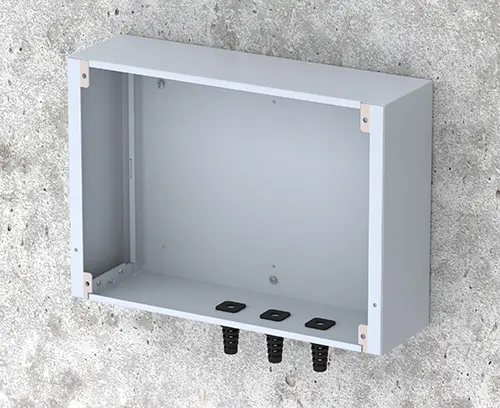

- Top section fits over the rear panel and also secures the front bezel

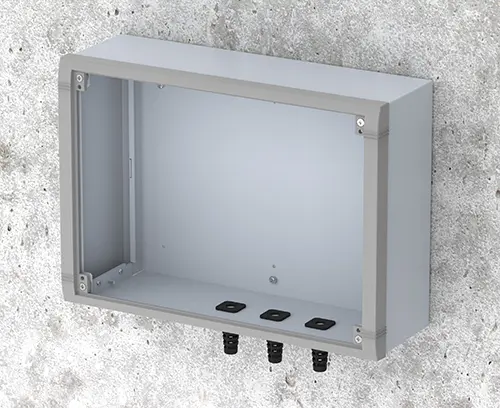

- Die cast front bezel provides a modern look to the cases
- Front panels recessed in the bezel to protect controls

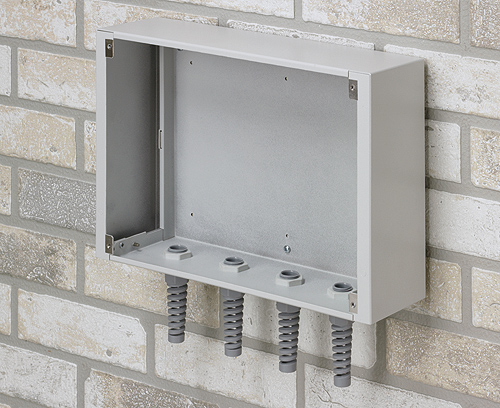

- Pre-punched wall mounting points in the rear panel
- Four M4 earth studs provided inside
- Two standard color combinations gray or black
- All fixings supplied with case

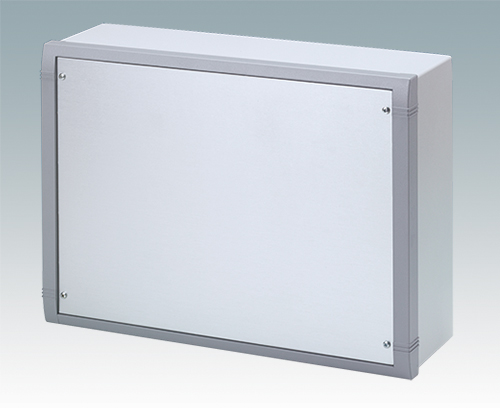

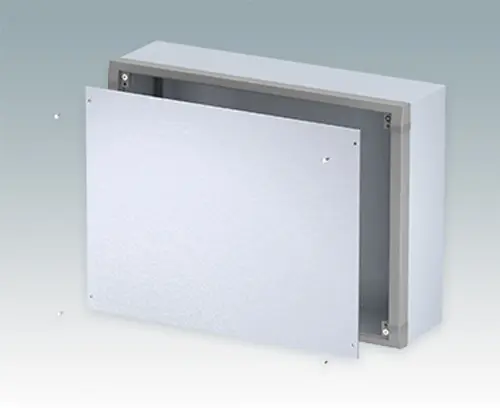

- Accessory anodized aluminum front panels

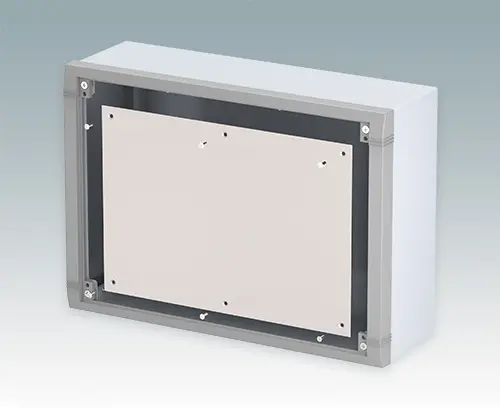

- Accessory internal mounting plate kit and PCB screw pillars.

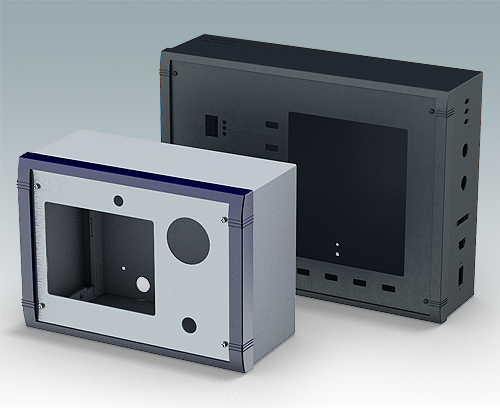

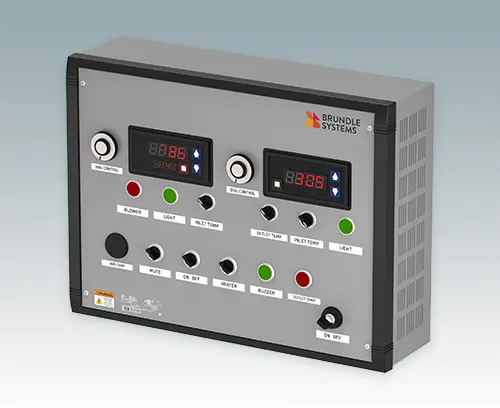

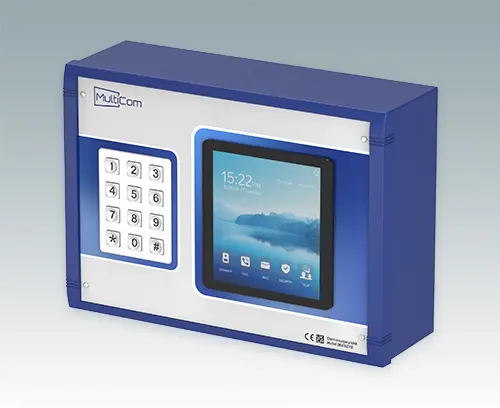

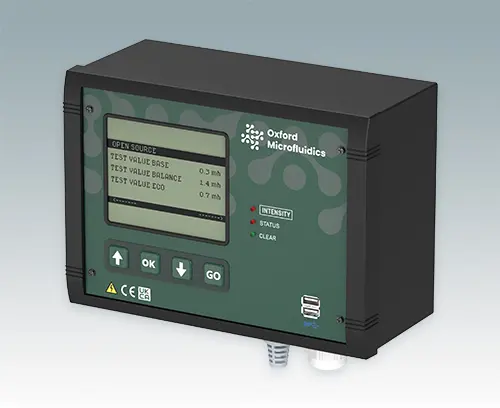

Order your own fully customized version learn more here >>
Application Fields
Modern wall cases for indoor applications such as control systems, factory processing, security systems, machine control, measurement devices and detection equipment.

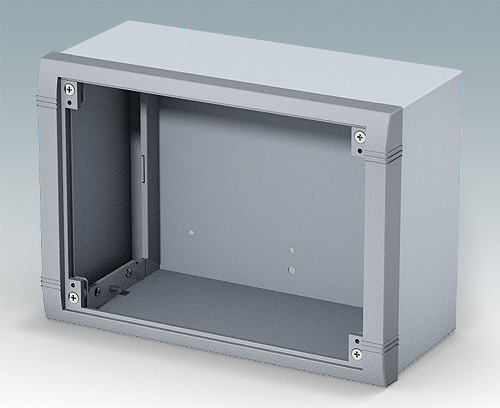

M5825105
Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
M5825105
Datamet SLight gray/window gray RAL 7035/7040
9.84″x7.09″x4.59″

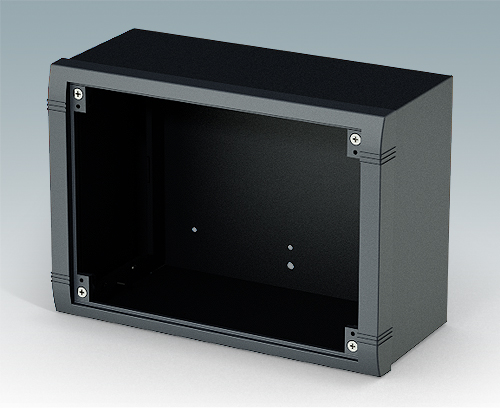

M5825109
Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
M5825109
Datamet SBlack RAL 9005
9.84″x7.09″x4.59″

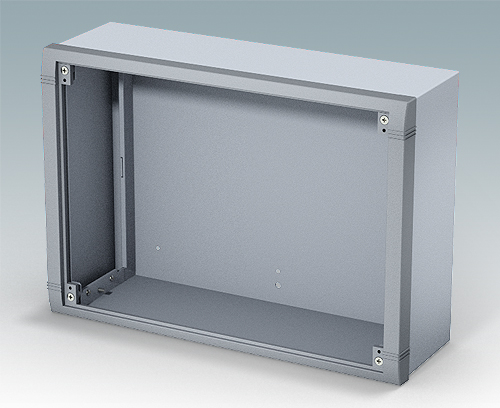

M5835105
Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
M5835105
Datamet MLight gray/window gray RAL 7035/7040
13.78″x9.84″x4.59″

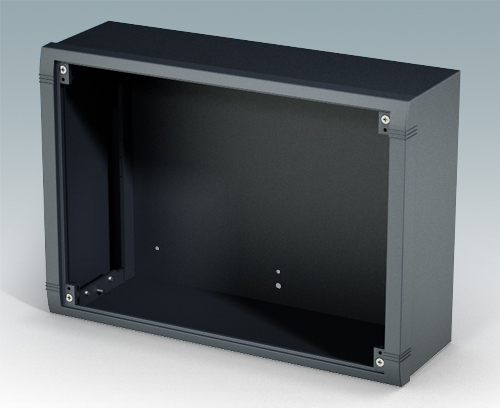

M5835109
Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
M5835109
Datamet MBlack RAL 9005
13.78″x9.84″x4.59″
M5840105
Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
M5840105
Datamet LLight gray/window gray RAL 7035/7040
15.75″x11.81″x4.59″
M5840109
Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).
M5840109
Datamet LBlack RAL 9005
15.75″x11.81″x4.59″

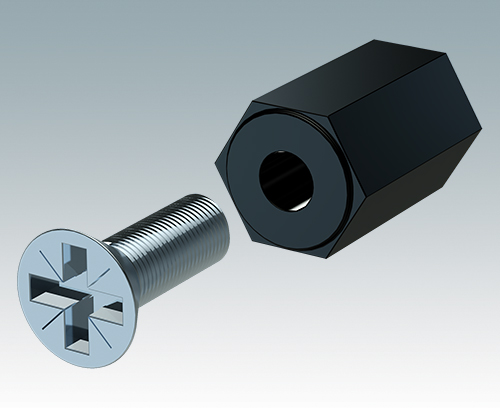

M5600001
If PCB or mounting plate fixing screws are required please see our screw kit M5600010.
Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.
M5600001
PCB mounting kitBlack RAL 9005
M5600010
Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET
Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.
Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.
Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).
M5600010
PCB Fixing Screws, M3Zinc coated
0.24″

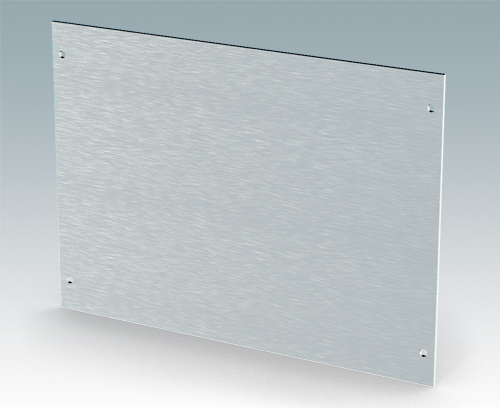

M5800025
Supply Front panel (fixings supplied with the cases).
M5800025
Front panel SMatt anodized
8.66″x0.08″x6.28″

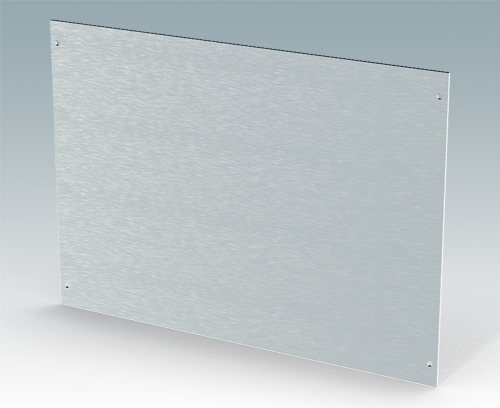

M5800035
Supply Front panel (fixings supplied with the cases).
M5800035
Front panel MMatt anodized
12.60″x0.08″x9.04″

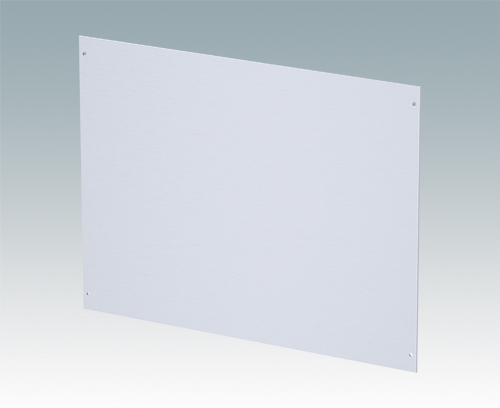

M5800040
Supply Front panel (fixings supplied with the cases).
M5800040
Front panel LMatt anodized
14.57″x0.08″x11.00″

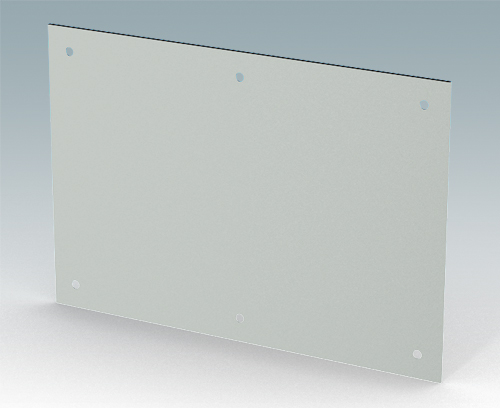

M5804125
Supply Mounting plate, 6 M3 polyamide pillars and 12 M3 fixing screws.
M5804125
Mounting plate kit SNatural finish
6.89″x4.72″x0.06″

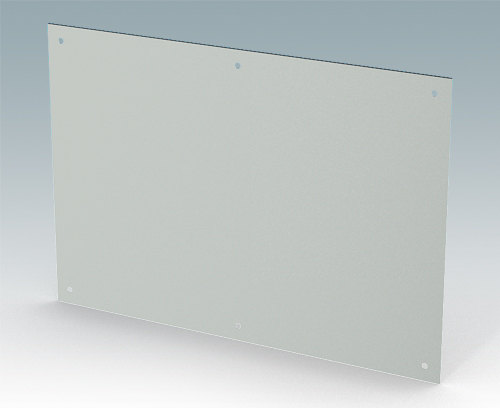

M5804135
Supply Mounting plate, 6 M3 polyamide pillars and 12 M3 fixing screws.
M5804135
Mounting plate kit MNatural finish
10.83″x7.48″x0.06″
M5804140
Supply Mounting plate, 6 M3 polyamide pillars and 12 M3 fixing screws.
M5804140
Mounting plate kit LNatural finish
12.80″x9.45″x0.06″
