Minimet
For small desktop and portable electronics

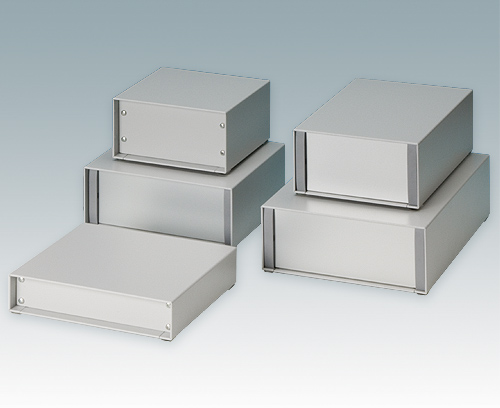

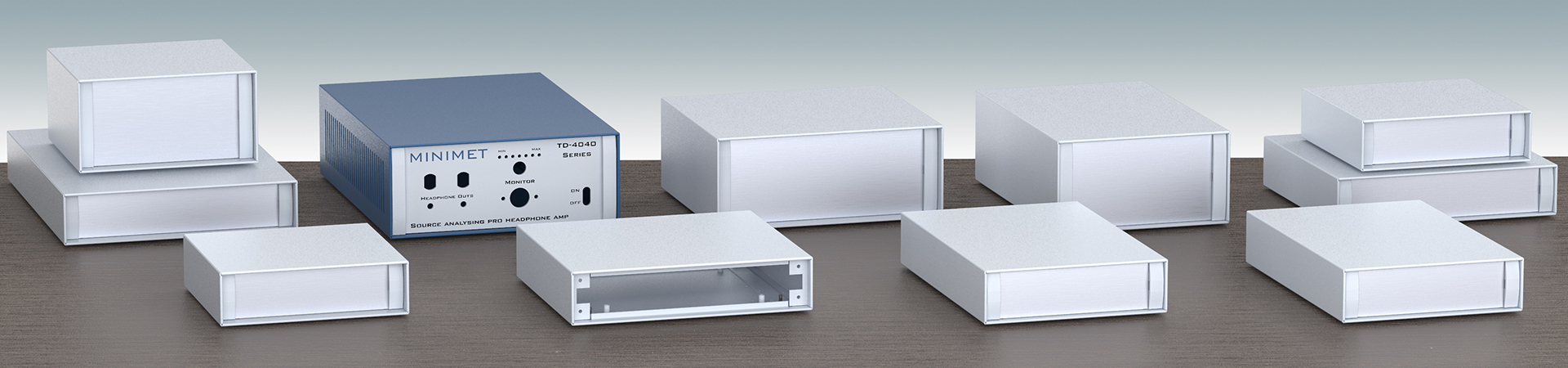

- Compact aluminum instrument enclosures in eight standard sizes

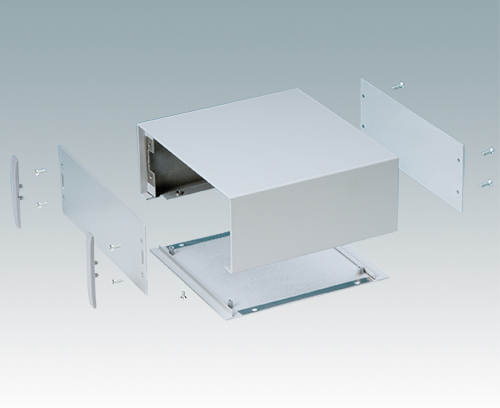

- Stylish, lightweight and versatile design, simple and fast assembly technique

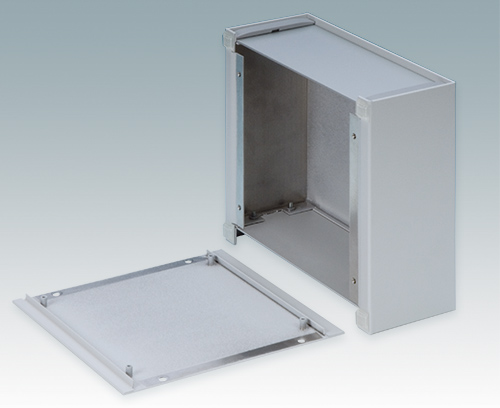

- Removable base panel pre-fitted with four M3 PCB screw pillars

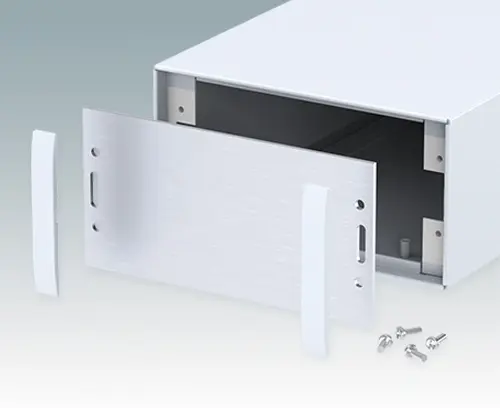

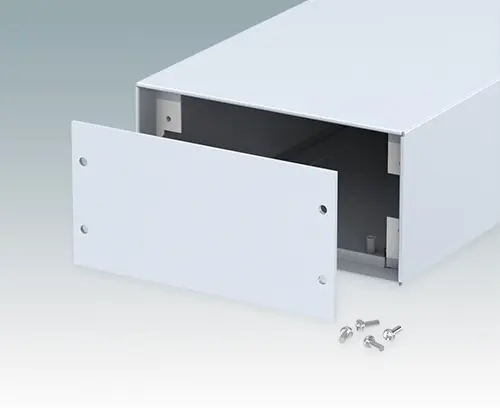

- Accessories: anodized front/rear panels and painted front/rear panels

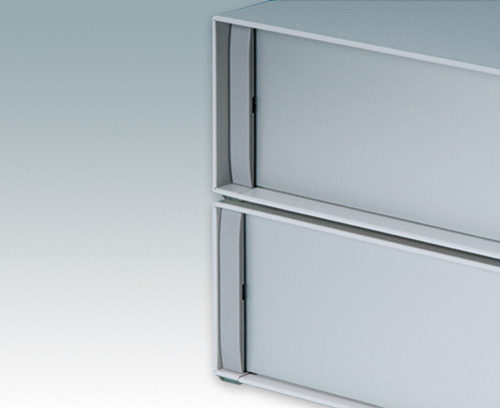

- Front panels are recessed by 0.315" or 0.551"
- Four self-adhesive non-slip feet included.

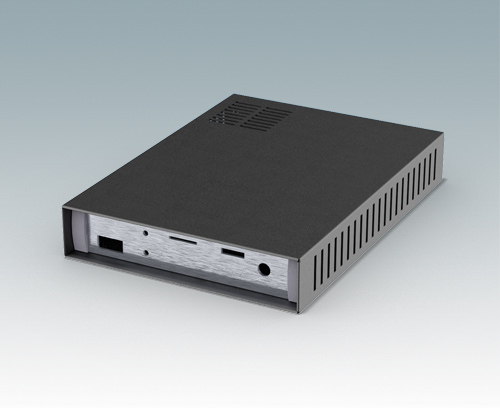

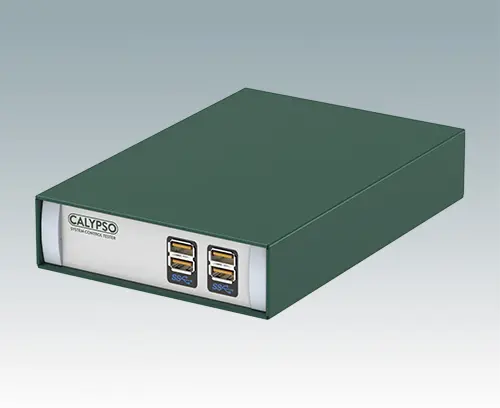

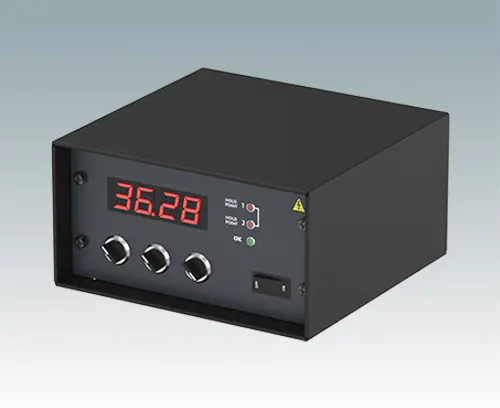

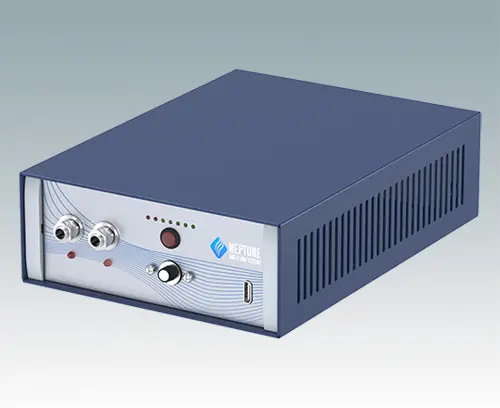

Order your own fully customized version learn more here >>
Application Fields
Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.

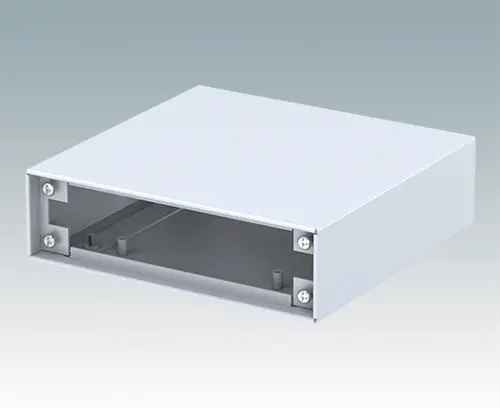

M5113115
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5113115
MINIMET 1Light gray RAL 7035
5.30″x5.12″x1.52″

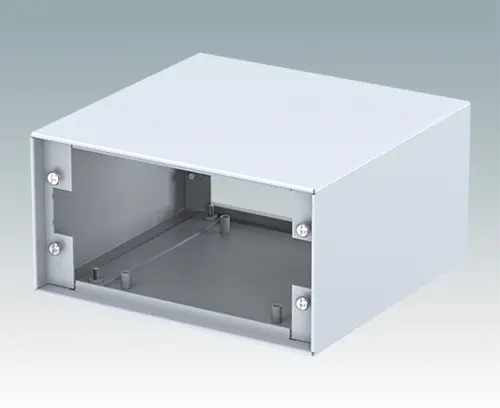

M5113125
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5113125
MINIMET 2Light gray RAL 7035
5.30″x5.12″x2.76″
M5113215
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5113215
MINIMET 3Light gray RAL 7035
5.30″x7.87″x1.52″
M5113225
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5113225
MINIMET 4Light gray RAL 7035
5.30″x7.87″x2.76″
M5117115
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5117115

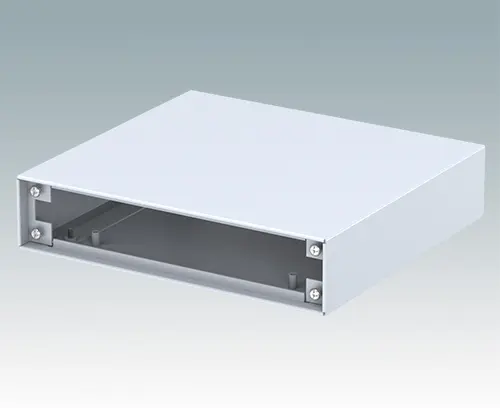

MINIMET 5Light gray RAL 7035
6.87″x6.30″x1.52″
M5117125
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5117125

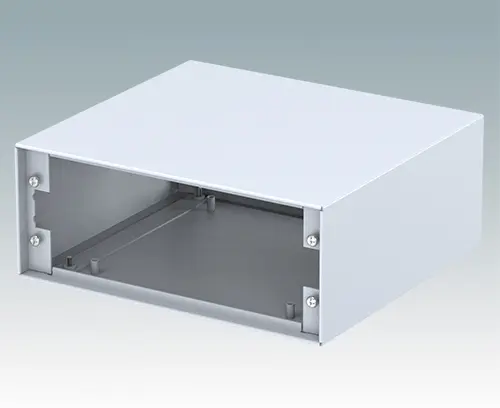

MINIMET 6Light gray RAL 7035
6.87″x6.30″x2.76″
M5117215
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5117215
MINIMET 7Light gray RAL 7035
6.87″x9.45″x1.52″
M5117225
Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.
M5117225
MINIMET 8Light gray RAL 7035
6.87″x9.45″x2.76″

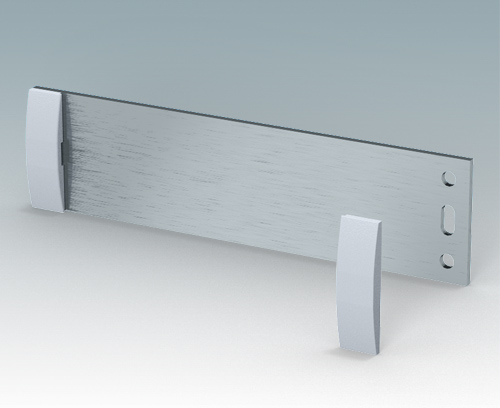

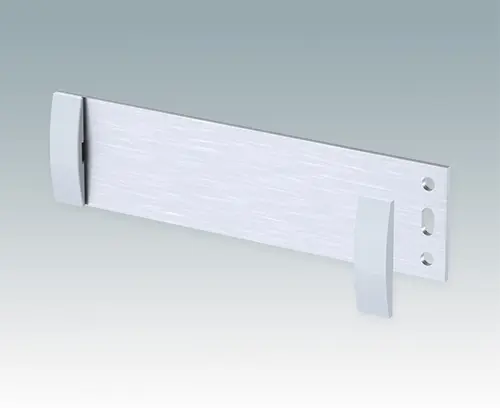

M5100510

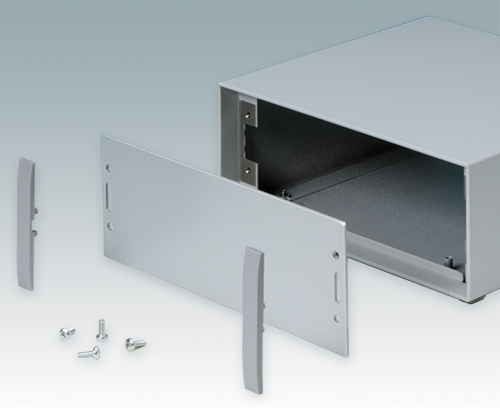

Supply Anodized panel, 2 ABS trims (panel fixings supplied with case).
M5100510
Front/rear panel AN (size 1 & 3)Matt anodized
5.10″x0.08″x1.32″

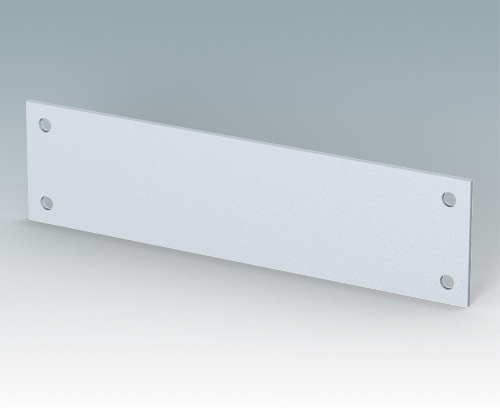

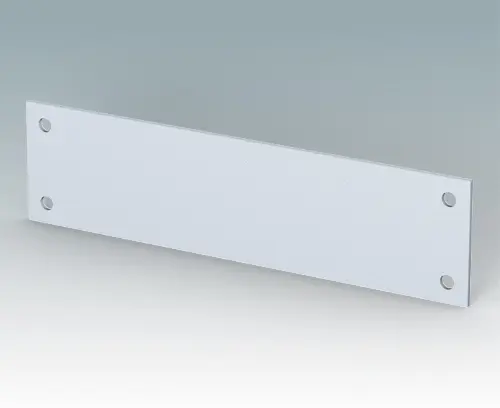

M5100515

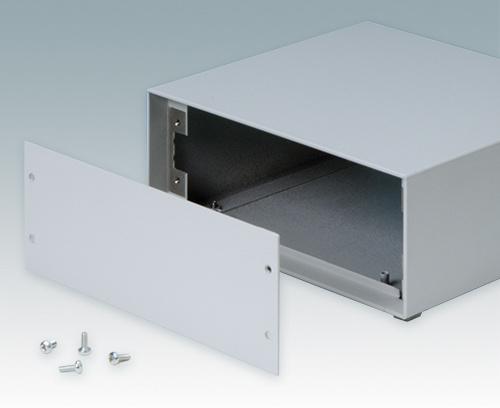

Supply Painted panel (panel fixings supplied with case).
M5100515
Front/rear panel PN (size 1 & 3)Light gray RAL 7035
5.10″x0.06″x1.32″

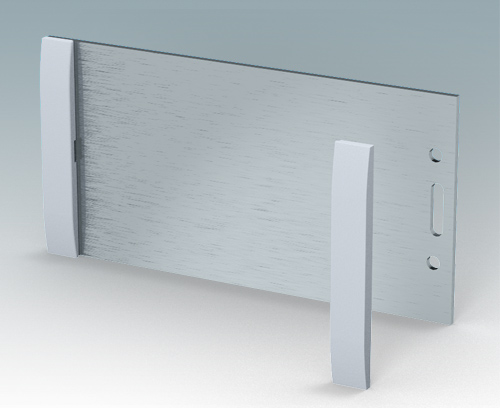

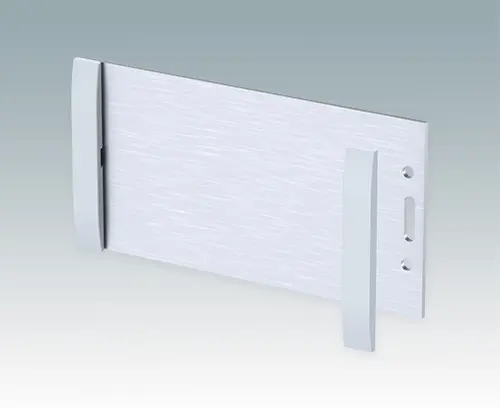

M5100520
Supply Anodized panel, 2 ABS trims (panel fixings supplied with case).
M5100520
Front/rear panel kit AN (size 2 & 4)Matt anodized
5.10″x0.08″x2.56″

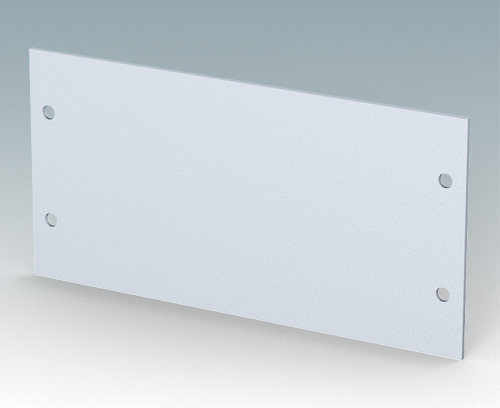

M5100525
Supply Painted panel (panel fixings supplied with case).
M5100525
Front/ rear panel PN (size 2 & 4)Light gray RAL 7035
5.10″x0.06″x2.56″

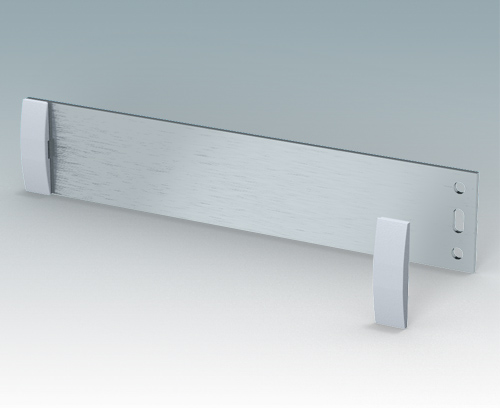

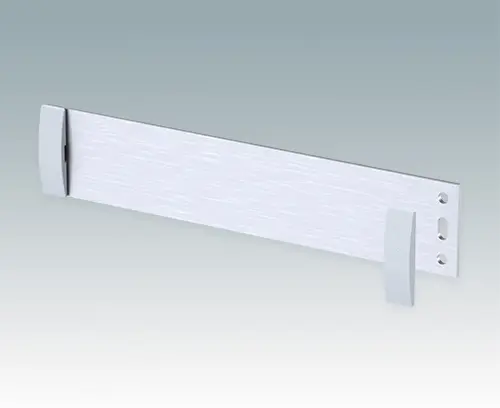

M5100550
Supply Anodized panel, 2 ABS trims (panel fixings supplied with case).
M5100550
Front/rear panel kit AN (size 5 & 7)Matt anodized
6.67″x0.08″x1.32″

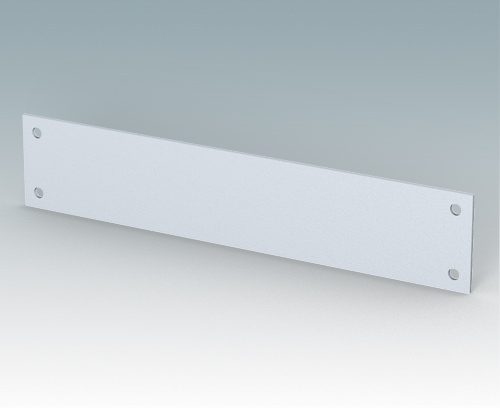

M5100555
Supply Painted panel (panel fixings supplied with case).
M5100555
Front panel PN (size 5 & 7)Light gray RAL 7035
6.67″x0.06″x1.32″
M5100560
Supply Anodized panel, 2 ABS trims (panel fixings supplied with case).
M5100560

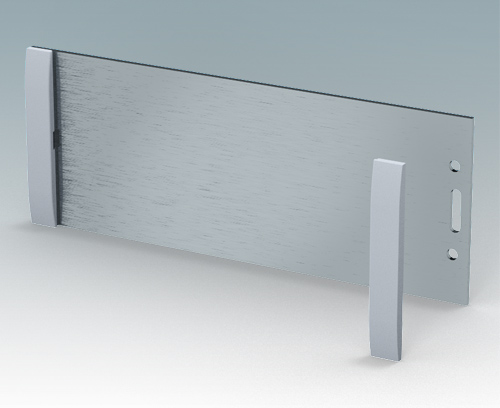

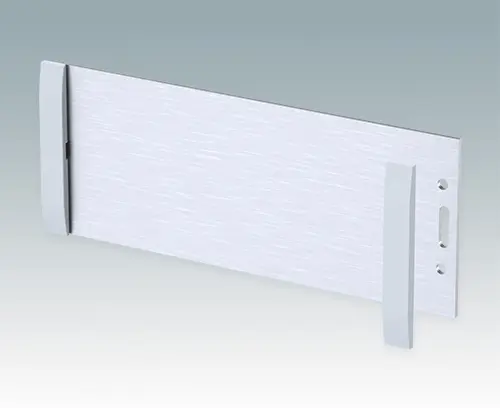

Front/rear panel kit AN (size 6 & 8)Matt anodized
6.67″x0.08″x2.56″

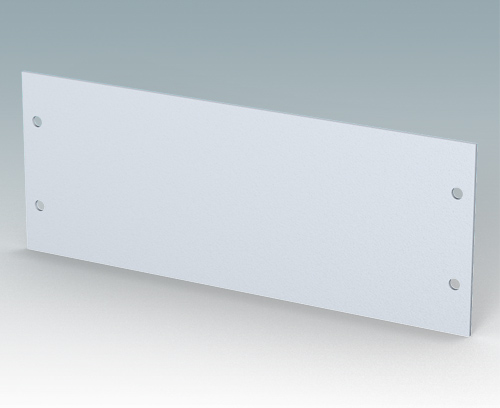

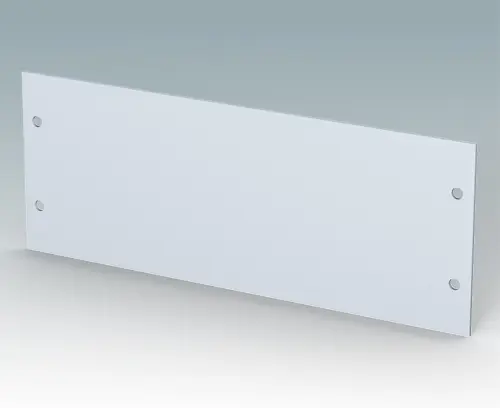

M5100565
Supply Painted panel (panel fixings supplied with case).
M5100565
Front/rear panel PN (size 6 & 8)Light gray RAL 7035
6.67″x0.06″x2.56″
M5600010
Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET
Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.
Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.
Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).
M5600010
PCB Fixing Screws, M3Zinc coated
0.24″
