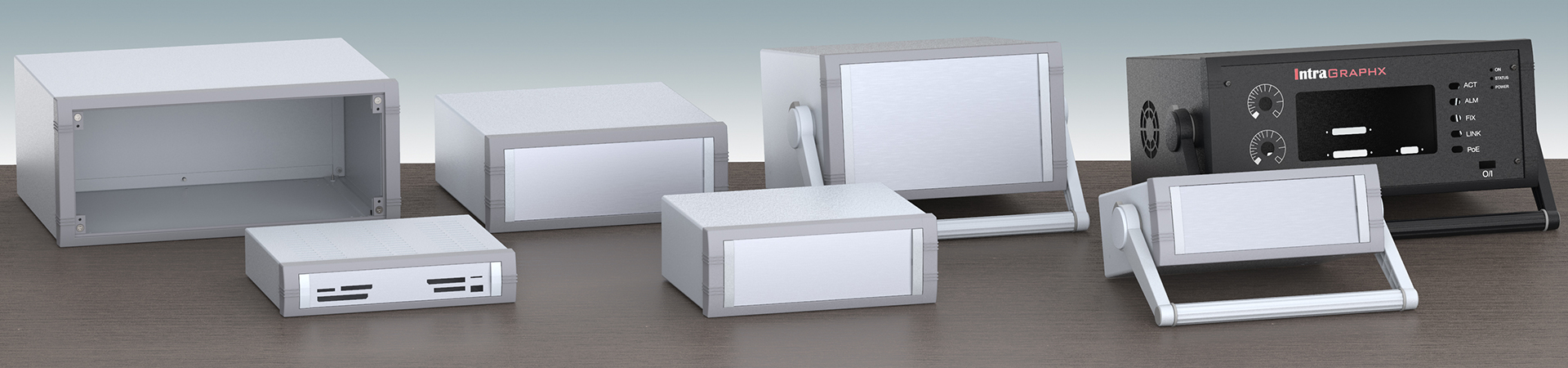

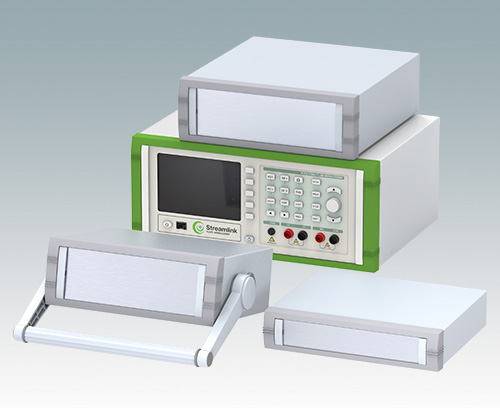

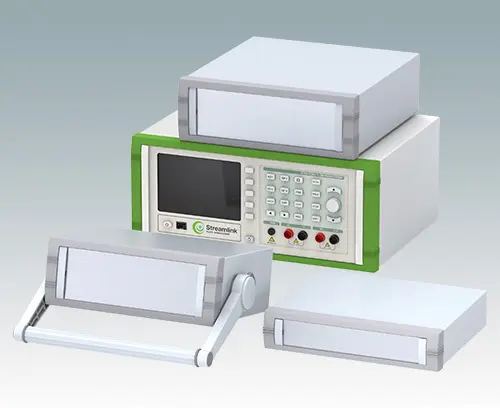

Modern desktop and portable instrument enclosures
- Stylish, robust and versatile aluminum design in six standard sizes

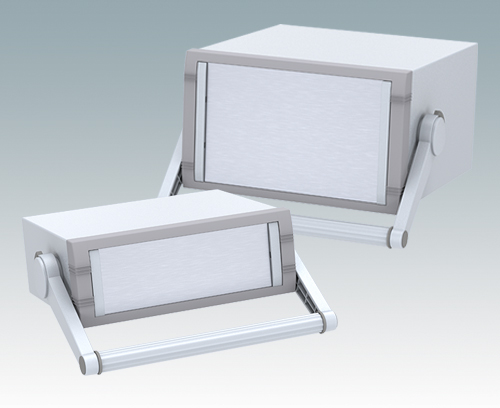

- With or without a bail arm for portable use

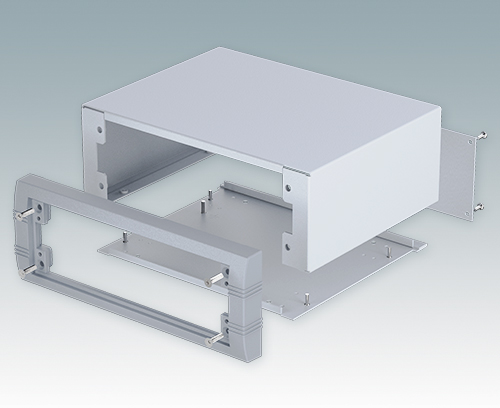

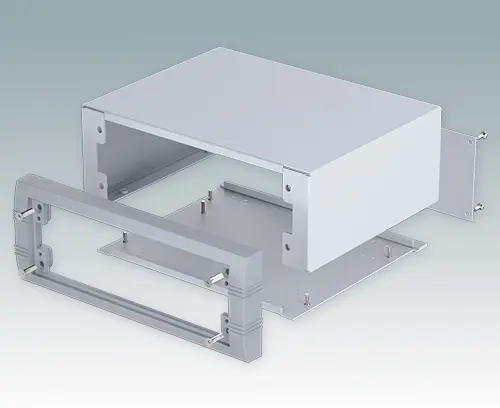

- Die cast front bezel is assembled to the folded aluminum case body

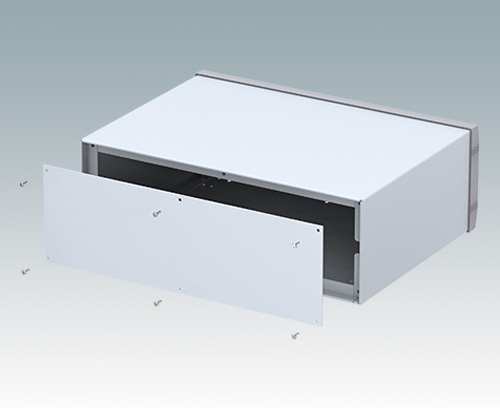

- Removable rear panel - recessed for protection of connectors, switches etc.

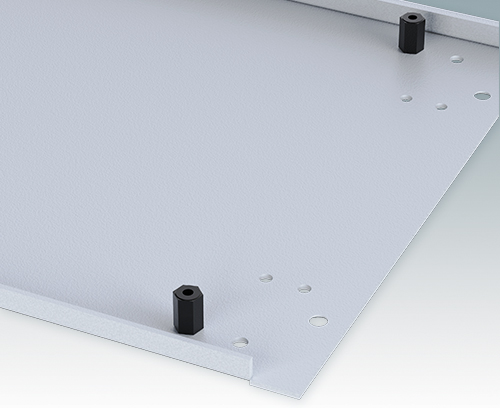

- Mounting holes in base for PCBs, chassis etc.

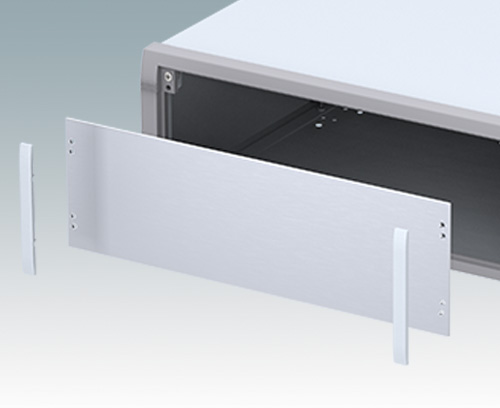

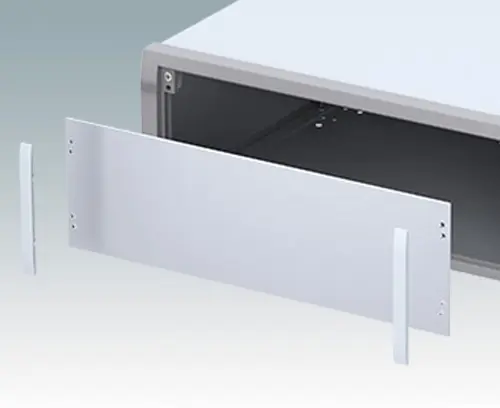

- Anodised aluminum front panels (accessory)
- Four non-slip rubber feet included
- Supplied pre-assembled

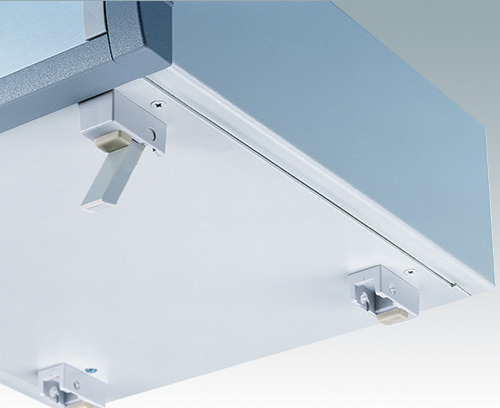

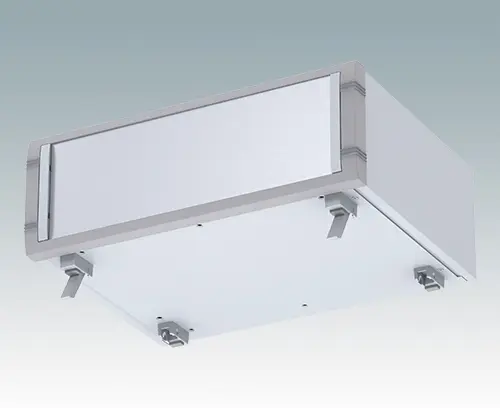

- Optional moulded ABS tilt feet (accessory).

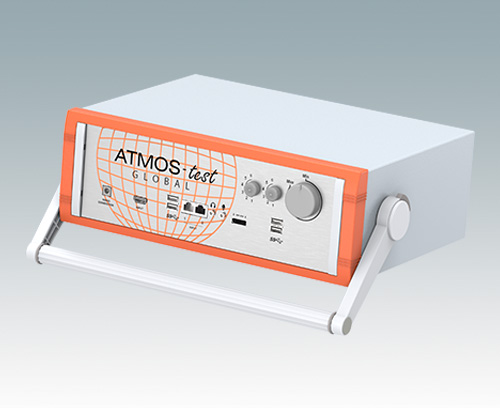

Order your own fully customized version learn more here >>
Application Fields
Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.
M5623005
Version Without handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5623005
UNIMET 1Light gray/window gray RAL 7035/7040
9.06″x7.48″x1.97″
M5623025
Version With handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5623025
UNIMET 1HLight gray/window gray RAL 7035/7040
9.06″x7.48″x1.97″
M5623105
Version Without handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.
M5623105
UNIMET 2Light gray/window gray RAL 7035/7040
9.06″x7.48″x3.35″
M5623125
Version With handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5623125
UNIMET 2HLight gray/window gray RAL 7035/7040
9.06″x7.48″x3.35″
M5625105
Version Without handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.
M5625105
UNIMET 3Light gray/window gray RAL 7035/7040
9.84″x10.24″x3.35″
M5625125
Version With handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5625125
UNIMET 3HLight gray/window gray RAL 7035/7040
9.84″x10.24″x3.35″
M5625305
Version Without handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.
M5625305
UNIMET 5Light gray/window gray RAL 7035/7040
9.84″x10.24″x5.91″
M5625325
Version With handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5625325
UNIMET 5HLight gray/window gray RAL 7035/7040
9.84″x10.24″x5.91″
M5635205
Version Without handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.
M5635205
UNIMET 4Light gray/window gray RAL 7035/7040
13.78″x10.24″x4.72″
M5635225
Version With handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5635225
UNIMET 4HLight gray/window gray RAL 7035/7040
13.78″x10.24″x4.72″
M5635305
Version Without handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.
M5635305
UNIMET 6Light gray/window gray RAL 7035/7040
13.78″x10.24″x5.91″
M5635325
Version With handle/bail arm
Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.
M5635325
UNIMET 6HLight gray/window gray RAL 7035/7040
13.78″x10.24″x5.91″

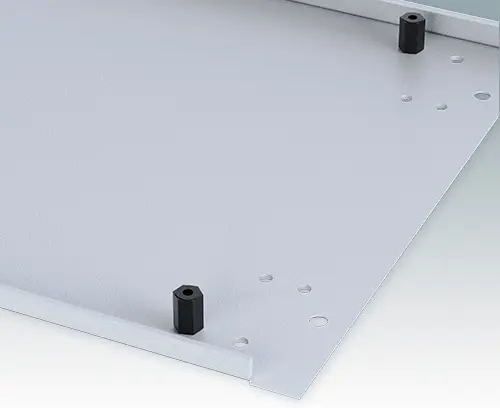

M5600001
If PCB or mounting plate fixing screws are required please see our screw kit M5600010.
Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.
M5600001
PCB mounting kitBlack RAL 9005
M5600010
Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET
Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.
Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.
Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).
M5600010
PCB Fixing Screws, M3Zinc coated
0.24″
M5600015
Version Without tilt legs.
Supply Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).
M5600015
Case Feet Kit 1Light gray RAL 7035
1.34″x0.67″x0.63″
M5600045
Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)
Call us for a free sample.
Version With tilt legs.
Supply Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).
M5600045
Case Feet Kit 2Light gray RAL 7035
1.34″x0.67″x0.63″
M5700607
Supply Front panel, 2 trims (fixings supplied with the cases)
M5700607
Front panel kit (1/1H)Matt anodized
7.85″x0.08″x1.32″
M5700608
Front panel kit for Unimet 2/2H and Unimet-Plus 2/2H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.
Supply Front panel, 2 trims (fixings supplied with the cases)
M5700608
Front panel kit (2/2H)Matt anodized
7.85″x0.08″x2.56″
M5700613
Front panel kit for Unimet 3/3H and Unimet-Plus 3/3H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.
Supply Front panel, 2 trims (fixings supplied with the cases)
M5700613
Front panel kit (3/3H)Matt anodized
8.64″x0.08″x2.56″
M5700616
Supply Front panel, 2 trims (fixings supplied with the cases)
M5700616
Front panel kit (5/5H)Matt anodized
8.64″x0.08″x5.12″
M5700620
Supply Front panel, 2 trims (fixings supplied with the cases)
M5700620
Front panel kit (4/4H)Matt anodized
12.58″x0.08″x3.94″
M5700621
Supply Front panel, 2 trims (fixings supplied with the cases)
M5700621
Front panel kit (6/6H)Matt anodized
12.58″x0.08″x5.12″
