2U Rack Cases

2U Rack Cases

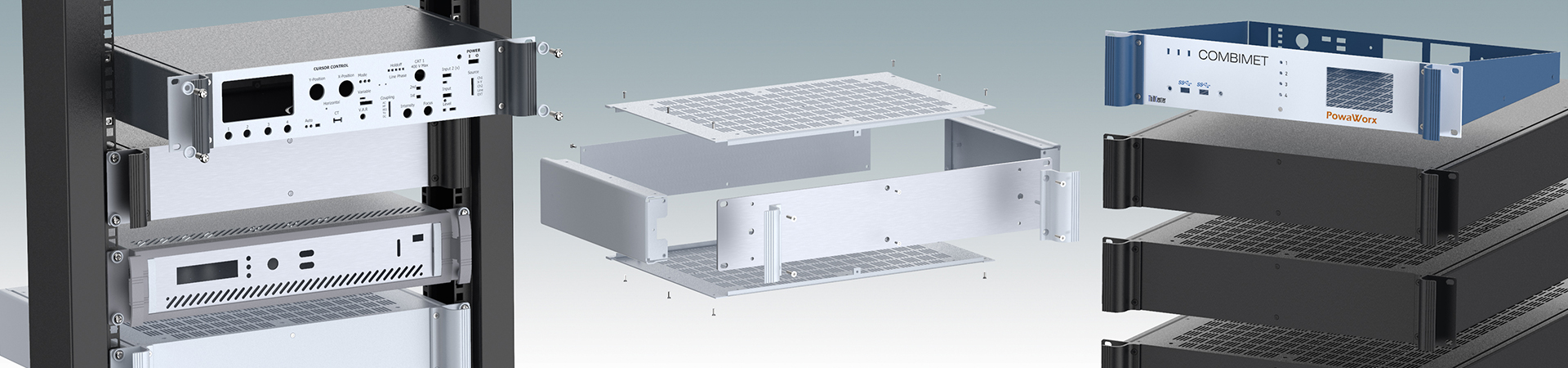

Versatile 19” enclosures for 2U rack mounted equipment

METCASE manufactures three ranges of elegant, modern 2U x 19” rack cases in aluminum. All three conform to DIN 41494 and IEC 60297-3 standards. 2U = 3.5" (88.9 mm).

Smart design gives you fast and easy access to your PCBs – and a choice of ventilation options. Each range offers a choice of standard options to make customization quicker and more cost effective. All cases are supplied fully assembled.

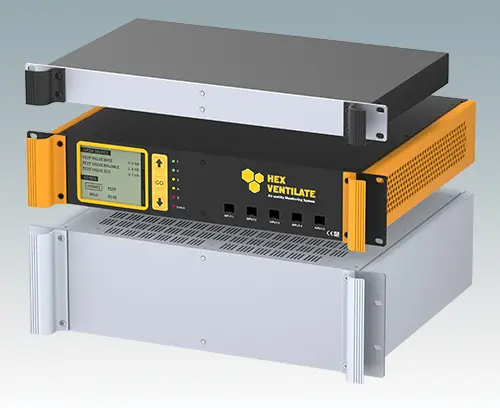

  • Combimet 2U – our bestselling range. Available in depths of 10.43", 14.37" and super deep 24". With or without ventilation. Removable top, base and rear panels. Ergonomic front panel handles.

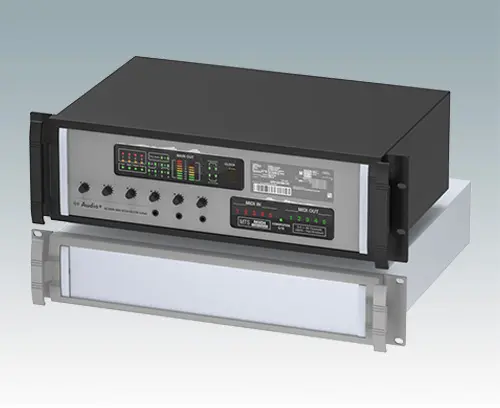

  • Unimet 2U – modern instrument cases for rack or desktop use, standard depths of  11.02" and 14.96". Ergonomic front handles. Separate, removable front panel.

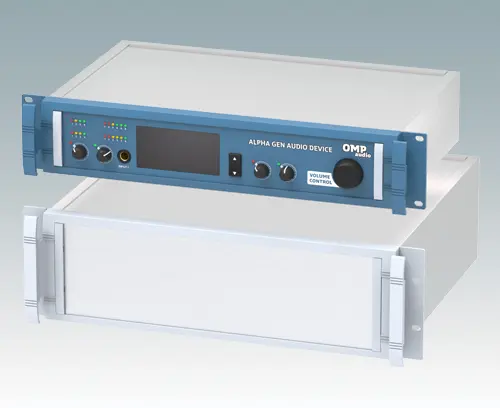

  • Mettec 2U – non-vented, available in depths of 6.57", 10.51" and 14.44". The front panel is removable – even when the case is fitted in the rack.

Accessories include internal mounting plates, PCB mounting kits, tilt feet for desktop use and rack mounting hardware.

METCASE 2U rack cases can be supplied fully customized to suit your exact requirements. Options include custom sizes, CNC punched front panels and covers, ventilation, machining, adding fixings and inserts, painting and finishing in other colors and digital printing of logos and legends. Contact our sales team for more details.
