Instrumet 19 inch housings

Instrumet 19"

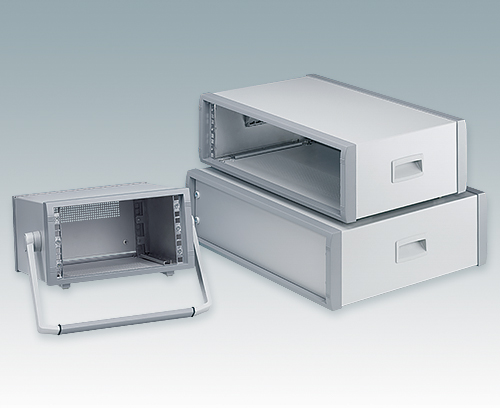

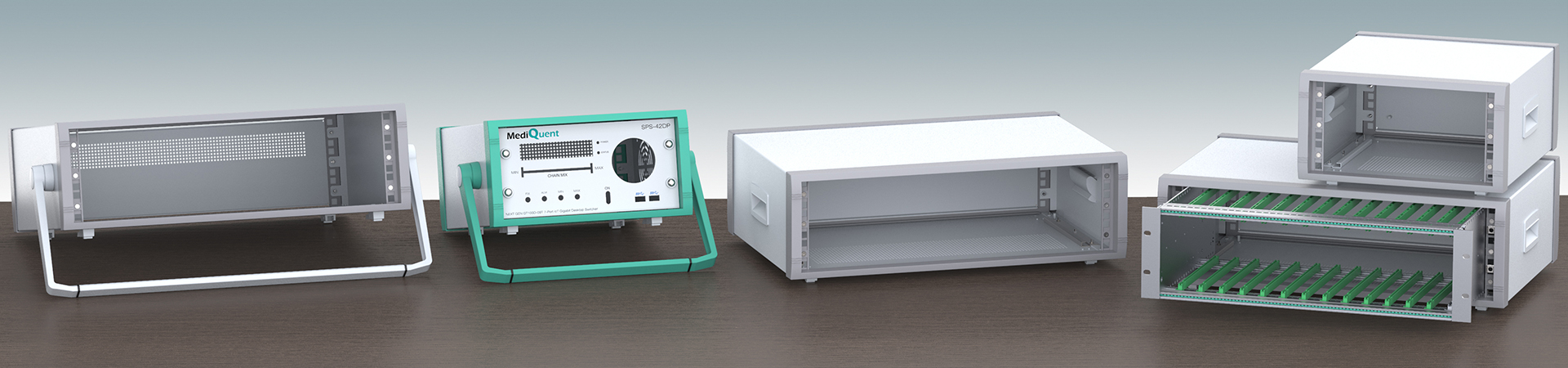

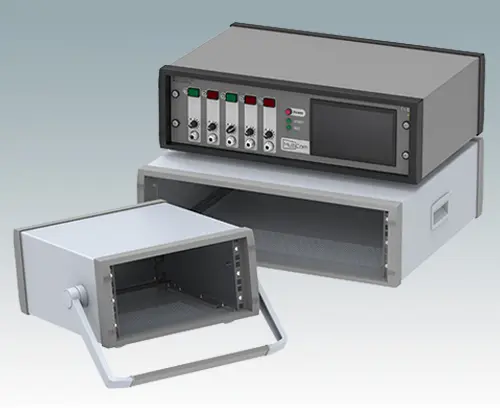

Stylish 3U Instrument Enclosures

  • Modern 10.5" and 19" width rack mount cases, conforms to DIN 41494 & IEC 60297-3

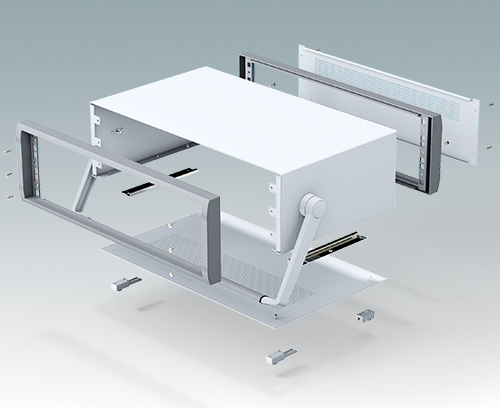

  • Robust yet lightweight aluminum construction with die cast front and rear bezels and fabricated case body

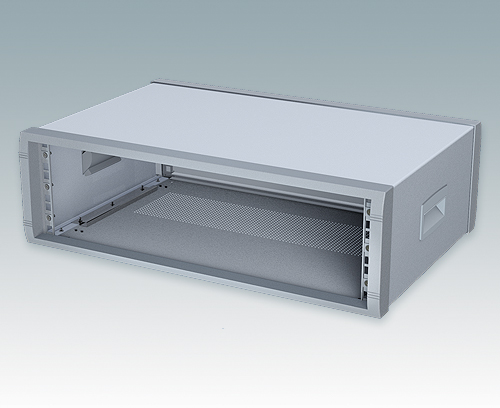

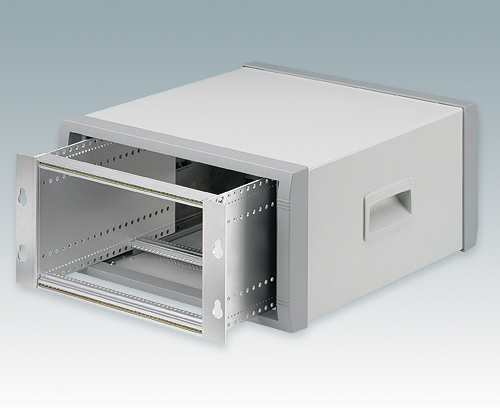

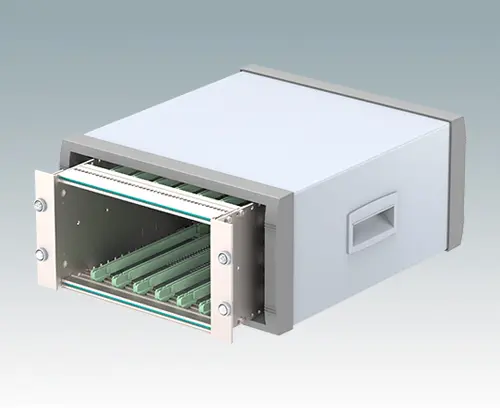

  • Designed to accept standard 3U subracks, chassis and front panels

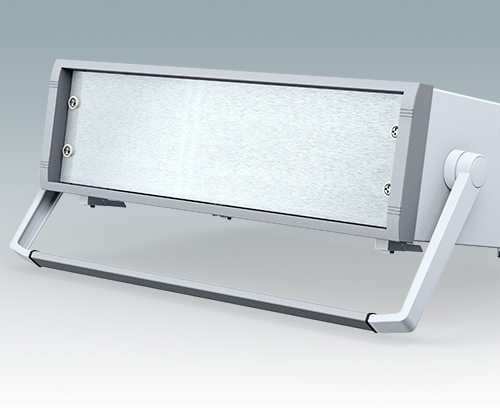

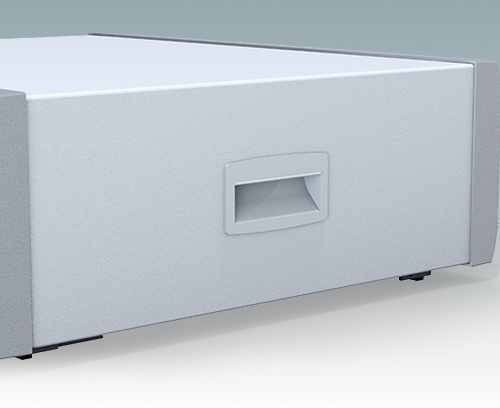

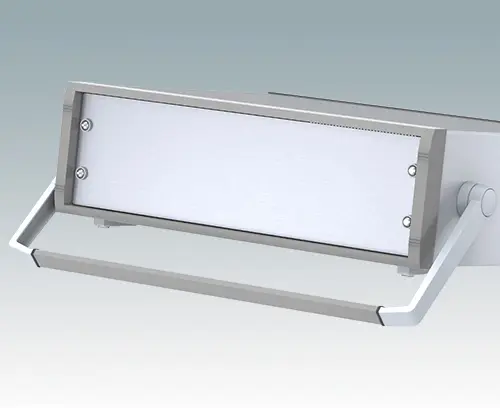

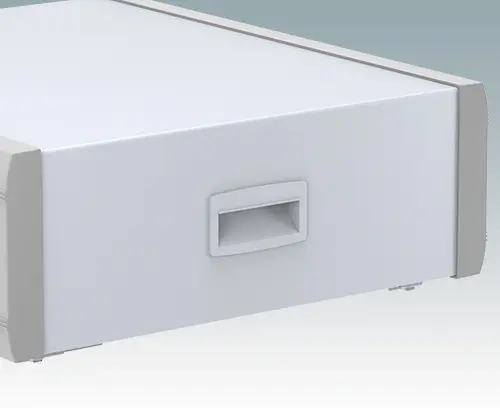

  • Supplied with two ABS side handles or a metal carry handle bar/bail arm

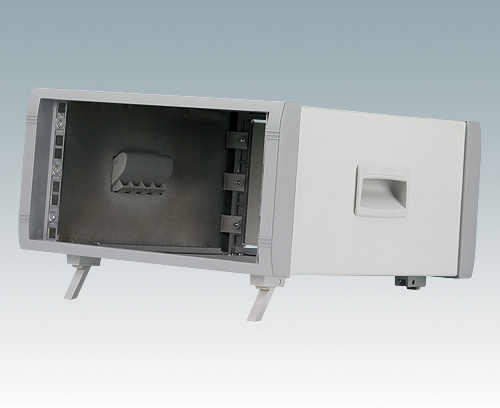

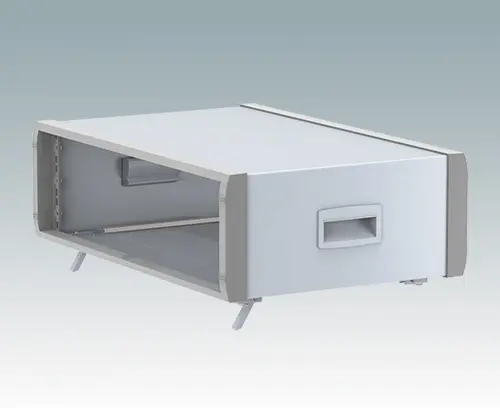

  • Supplied fully assembled with four molded ABS non-slip tilt feet

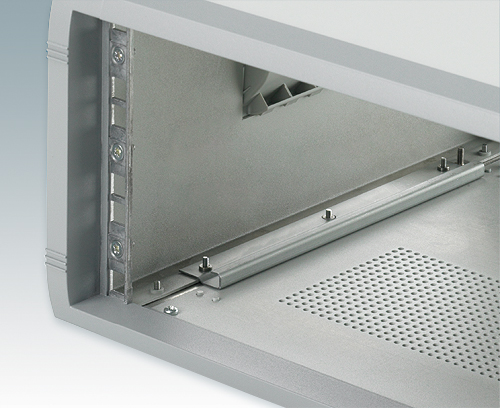

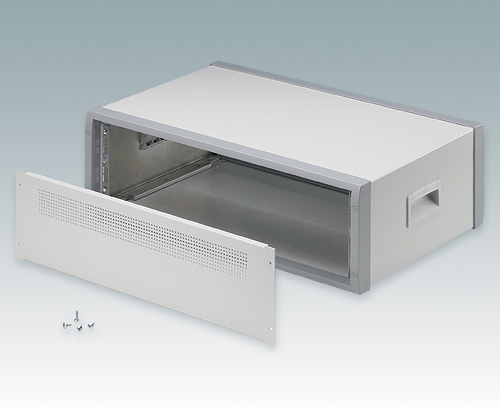

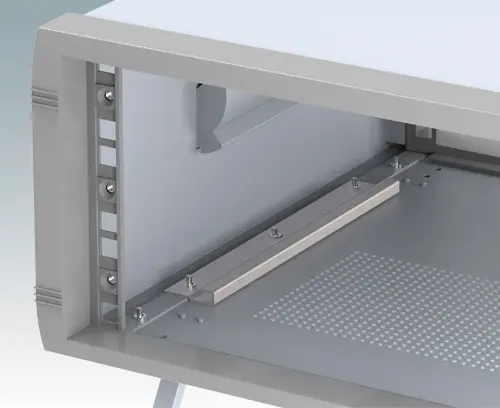

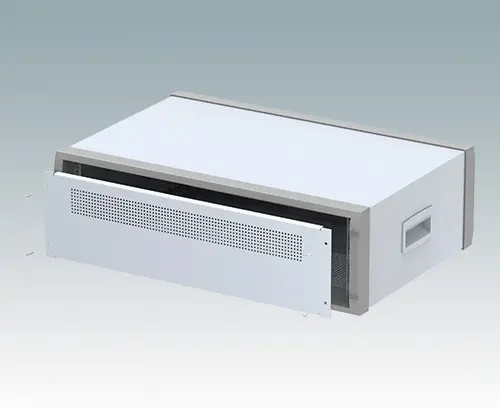

  • Internal subrack/chassis support rails and rear panel included
  • Ventilation holes in base and rear panel
  • Three M4 earth studs provided inside

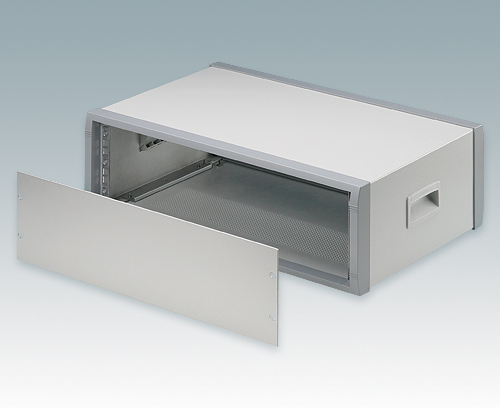

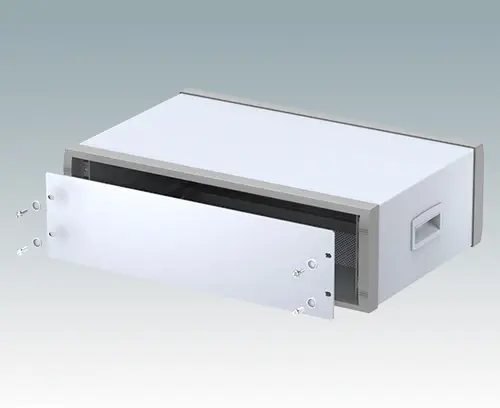

  • Accessory anodized 10.5" and 19" front panels available.

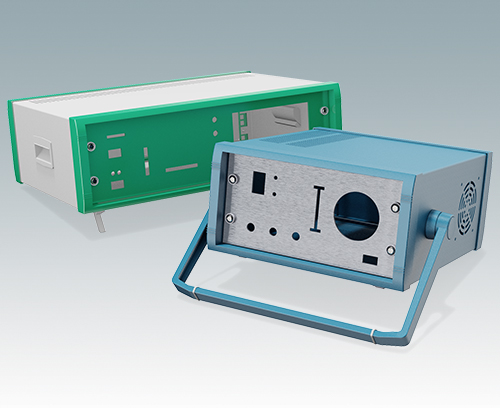

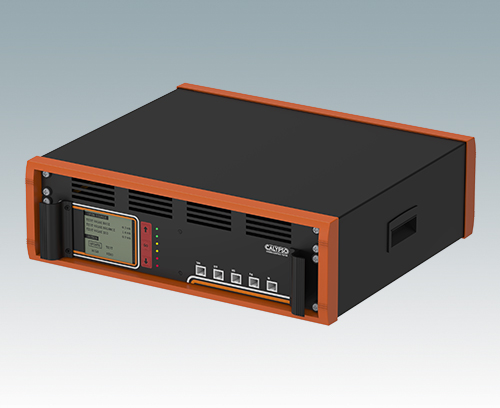

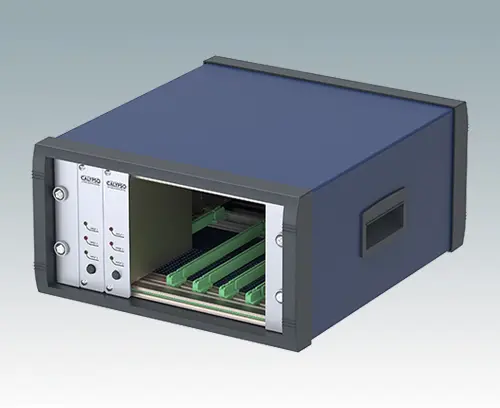

Order your own fully customized version learn more here >>

  • Video

Application fields

19" subrack or chassis based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.
  • Browse Full List
  • Accessories
  • Catalog Documents

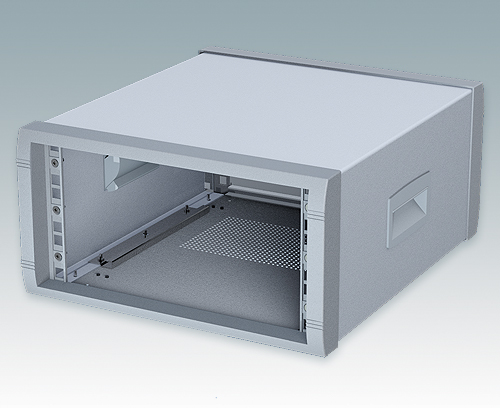

M6010305 INSTRUMET 10.5" 3Ux13.78"

M6010305

INSTRUMET 10.5" 3Ux13.78" Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

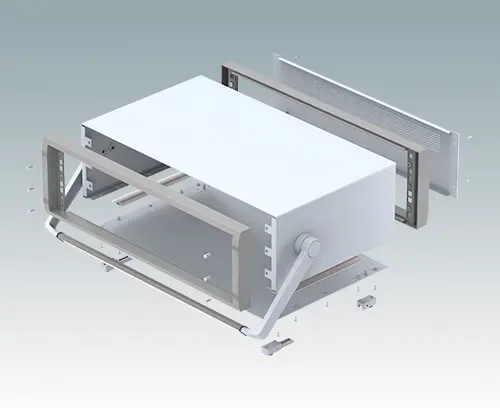

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6010305

INSTRUMET 10.5" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x11.93″x13.78″

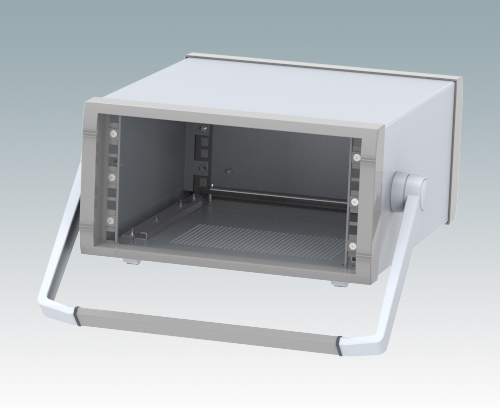

M6010315 INSTRUMET 10.5" 3Ux13.78"

M6010315

INSTRUMET 10.5" 3Ux13.78" Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6010315

INSTRUMET 10.5" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x11.93″x13.78″

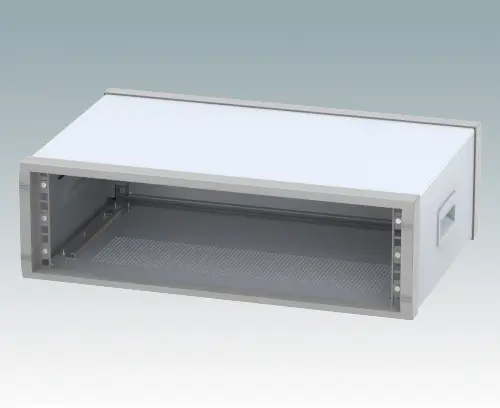

M6019305 INSTRUMET 19" 3Ux13.78"

M6019305

INSTRUMET 19" 3Ux13.78" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019305

INSTRUMET 19" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x13.78″
M6019315 INSTRUMET 19" 3Ux13.78"

M6019315

INSTRUMET 19" 3Ux13.78" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019315

INSTRUMET 19" 3Ux13.78"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x13.78″
M6019325 INSTRUMET 19" 3Ux17.72"

M6019325

INSTRUMET 19" 3Ux17.72" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019325

INSTRUMET 19" 3Ux17.72"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x17.72″
M6019335 INSTRUMET 19" 3Ux17.72"

M6019335

INSTRUMET 19" 3Ux17.72" Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

Close

M6019335

INSTRUMET 19" 3Ux17.72"
product added to your basket
Aluminum
Light gray/window gray RAL 7035/7040
6.18″x20.31″x17.72″
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6010001

Front panel 3Ux10.5"
product added to your basket
Aluminum
Matt anodized
10.60″x0.12″x5.22″
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6019001

Front panel 3Ux19"
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x5.22″
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x1.72″
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your basket
Aluminum
Matt anodized
19.00″x0.12″x1.72″
