19" Enclosures
M6010315
INSTRUMET 10.5" 3Ux13.78"

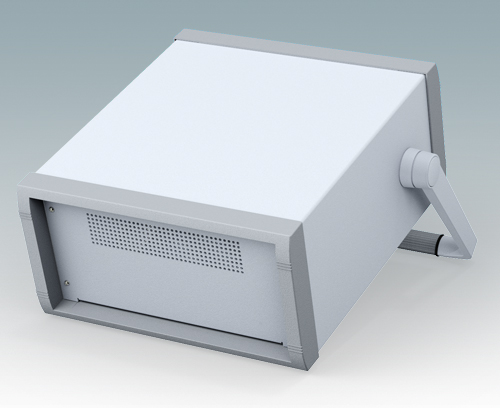

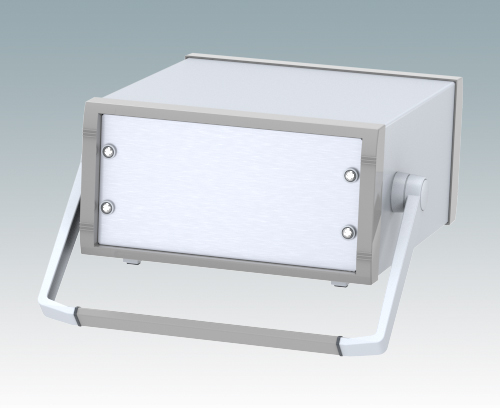

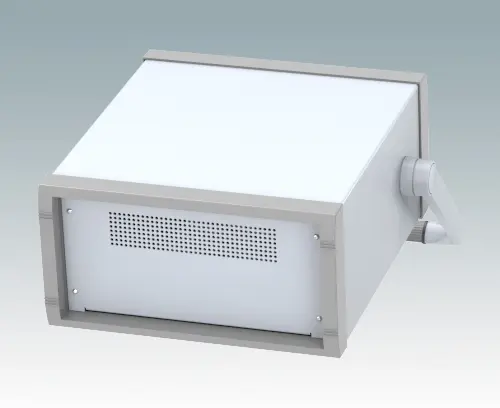

Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.
VersionWith handle/bail arm
SupplyFront bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
Generate Your PDF Datasheet for M6010315
Please select the product details you would like to include in the PDF.
Accessory
M5900016
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kit
M6000035
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).
M6000035
19" mounting kit
M6010001
Supply Front panel
M6010001
Front panel 3Ux10.5"Matt anodized
10.60″x0.12″x5.22″
REACH compliant
IEC 60297-3
RoHS compliant
