M6019315

INSTRUMET 19" 3Ux13.78"

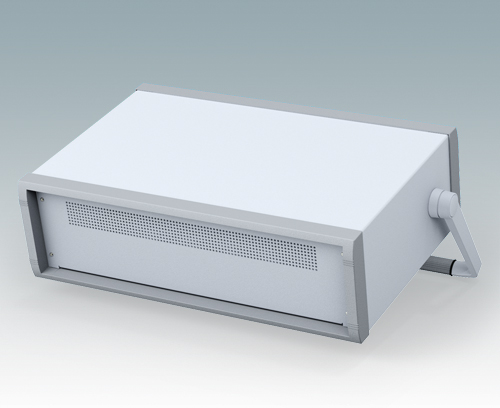

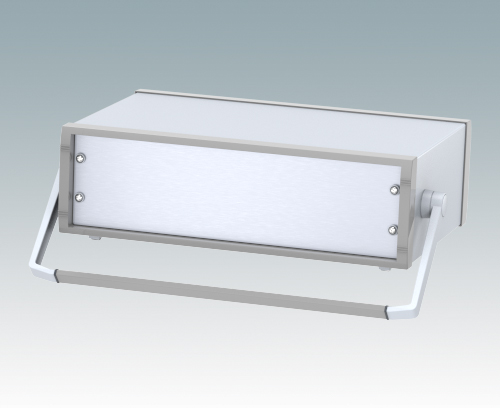

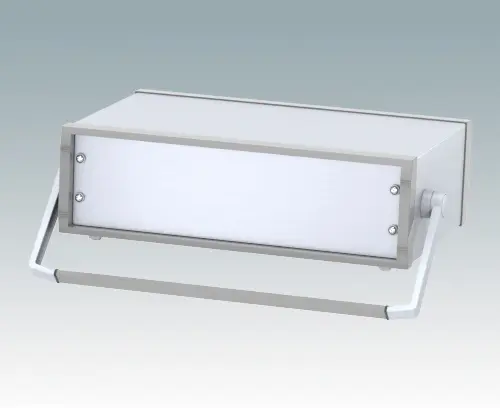

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version

With handle/bail arm

Supply

Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M6019315

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

M6019001

Front panel 3Ux19"
product added to your basket

Matt anodized
19.00″x0.12″x5.22″
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019010

Front panel 1Ux19"
product added to your basket

Matt anodized
19.00″x0.12″x1.72″
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1

Version With ventilation slots

Supply Panel

M6019011

Front panel 1Ux19" vented
product added to your basket

Matt anodized
19.00″x0.12″x1.72″
Material

Color
Light gray/window gray RAL 7035/7040
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
6.181″
157 mm
Width
20.315″
516 mm
Depth
13.780″
350 mm
Height Unit
3 U

Catalog Pages

Drawings

3D Models

Weight/1 part
4.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
UK
