M5117225

MINIMET 8

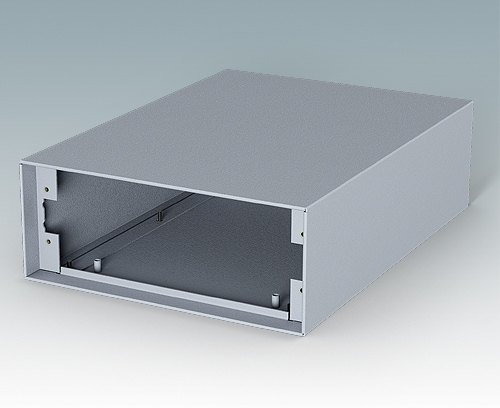

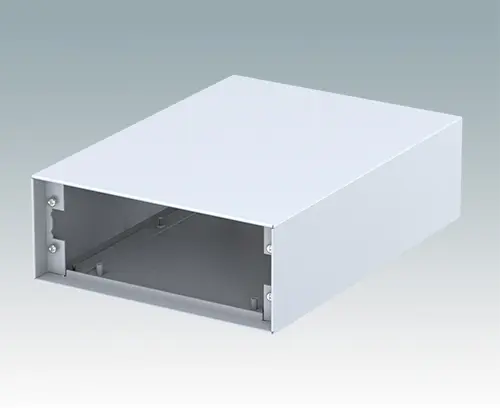

Modern instrument case for small desktop and portable electronics. Folded aluminum top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 0.31" and 0.55" at the opposite ends. Order front and rear panels separately.

Supply

Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for M5117225

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M5100560 Front/rear panel kit AN (size 6 & 8)

M5100560

Front/rear panel kit AN (size 6 & 8) Anodized aluminum front/rear panel for MINIMET size 6 and 8 cases

Supply Anodized panel, 2 ABS trims (panel fixings supplied with case).

M5100560

Front/rear panel kit AN (size 6 & 8)
product added to your basket

Matt anodized
6.67″x0.08″x2.56″
M5100565 Front/rear panel PN (size 6 & 8)

M5100565

Front/rear panel PN (size 6 & 8) Painted aluminum front/rear panel for MINIMET size 6 and 8 cases

Supply Painted panel (panel fixings supplied with case).

M5100565

Front/rear panel PN (size 6 & 8)
product added to your basket

Light gray RAL 7035
6.67″x0.06″x2.56″
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB Fixing Screws, M3
product added to your basket

Zinc coated
0.24″
Material

Color
Light gray RAL 7035
Standards
REACH compliant
RoHS compliant
Width
6.870″
174.5 mm
Depth
9.449″
240 mm
Height
2.756″
70 mm
PCB length, base
8.504″
216 mm
PCB width, base
5.039″
128 mm

Catalog Pages

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
0.44 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
UK
