Accessories for fitting PCBs

PCB Mounting Accessories

Universal accessories for mounting PCBs in any enclosures

  • M3 plastic PCB mounting pillars, 0.39" high
  • Snap-in PCB guides for 0.63" (1.6 mm) thick PCBs.
  • Browse Full List
  • Catalog Documents

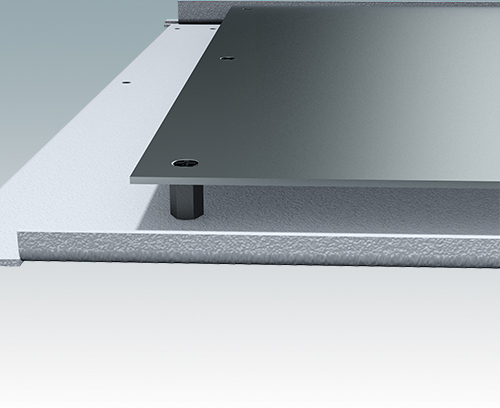

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit PA 6
Black RAL 9005
M5600010 PCB Screw Kit, M3

M5600010

PCB Screw Kit, M3 Pack of 100 M3 x 6 mm pan head pozi drive screws which can be used to secure PCBs and mounting plates by screwing into threaded standoffs in standard enclosures such as TECHNOMET and MINIMET.

These screws are also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Screw Kit, M3 Steel
Zinc coated
0.24″

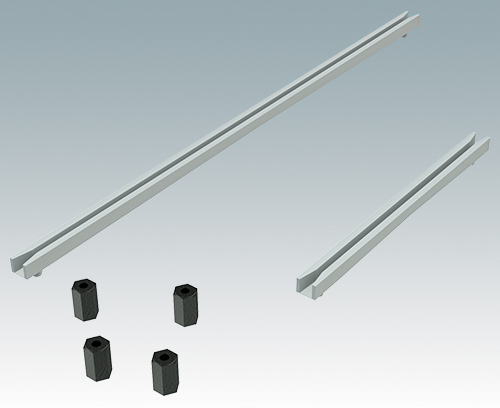

M5700202 PCB guide, 8.50"

M5700202

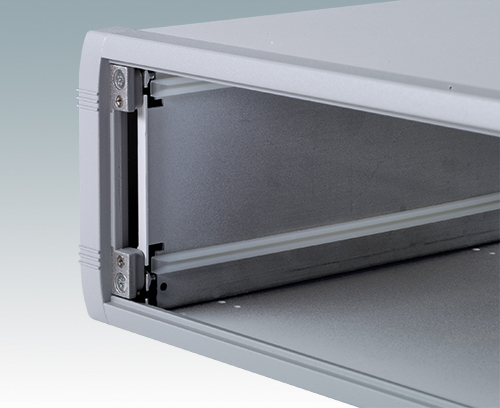

PCB guide, 8.50" Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 3/3H/4/4H/5/5H/6/6H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700202

PCB guide, 8.50" PA 6/6 (UL 94 V-2)
White
M5700203 PCB guide, 4.00"

M5700203

PCB guide, 4.00" Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 1/1H/2/2H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700203

PCB guide, 4.00" PA 6/6 (UL 94 V-2)
White
M6490010 PCB Guide, 4.00"

M6490010

PCB Guide, 4.00" Snap-in PCB guide for 0.02" to 0.08" (0.5 mm to 2.0 mm) thick PCBs. See drawing for punching details. Suitable for Technomet R210, R210H, R212, R212H, SL212, R215S, R215H, R310, R310H, R312, R312H, R315S, R315H and SL315S. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R210/R210H 4 5
R212/R212H 4 7
R215S/R215H 4 9
R310/R310H 4 5
R312/R312H 4 7
R215S/R215H 4 9

Supply 1 PCB guide

Close

M6490010

PCB Guide, 4.00" PA 6/6 (UL 94 V-0)
Natural finish
4.00″x0.30″x0.14″
M6490020 PCB Guide, 5.50"

M6490020

PCB Guide, 5.50" Snap-in PCB guide for 0.02" to 0.08" (0.5 mm to 2.0 mm) thick PCBs. See drawing for punching details. Suitable for Technomet R107, R107H, R110, SL110 and R110H. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R107/R107H 2 3
R110/R110H 2 5
SL110 2 5

Supply 1 PCB guide

Close

M6490020

PCB Guide, 5.50" PA 6/6 (UL 94 V-0)
Natural finish
5.50″x0.30″x0.14″
