19" Enclosures
Mettec 19"

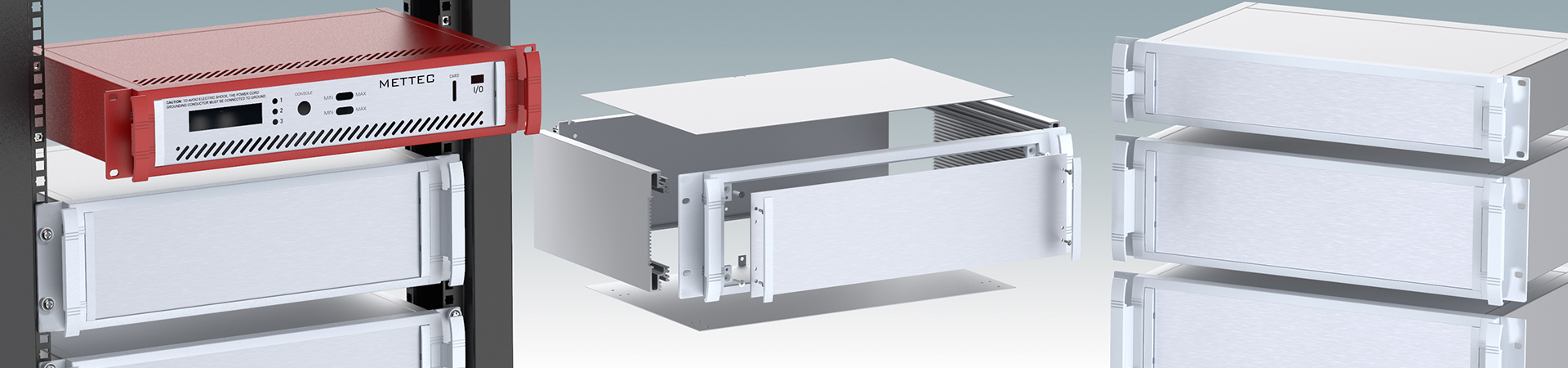

Robust 19" rack mount enclosures to DIN 41494 and IEC 60297-3
- Exclusive range of 19" rack cases in aluminium in 2U and 3U sizes
- Three standard depths, custom sizes to order

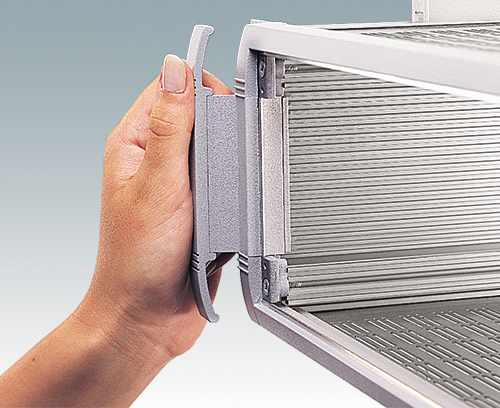

- Attractive diecast front bezel incorporating unique 'comfort-handles' and rack mounting ears powder painted light gray, RAL 7035

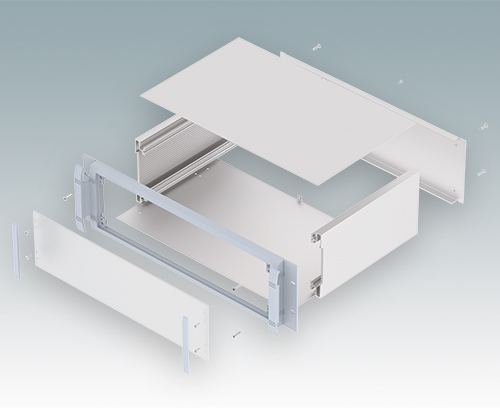

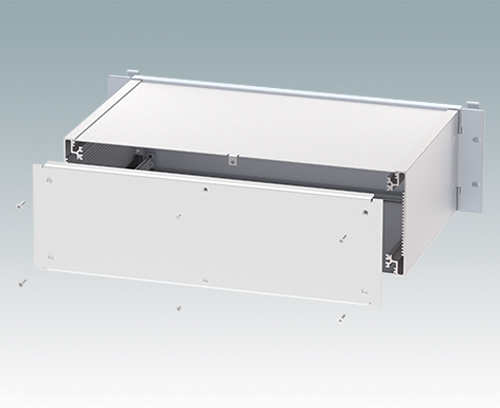

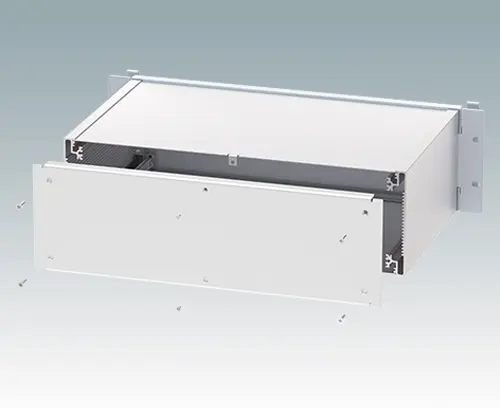

- Robust case body assembly includes flat top and base panels, two side extrusions and the rear panel
- Side extrusions, top, base and rear panels are supplied in an Iridite NCP conductive finish
- Internal guide rails for PCBs and chassis plates
- Front panel (accessory) recessed in bezel for locating keypads or labels

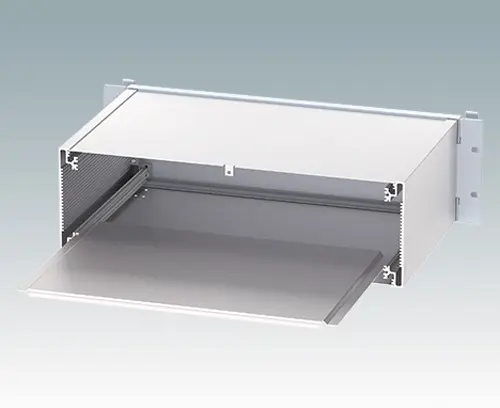

- Accessory internal mounting plates
- Cases supplied fully assembled.

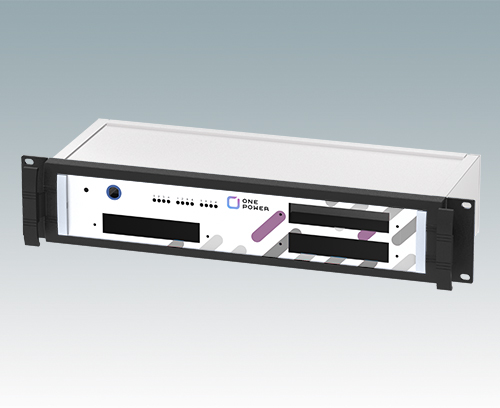

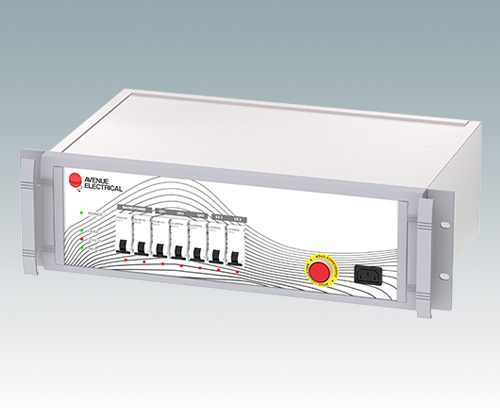

Order your own fully customized version learn more here >>
Application Fields

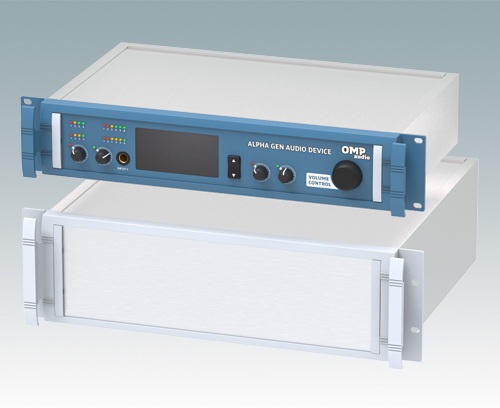

Rack mounted electronics such as networking and communications equipment, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

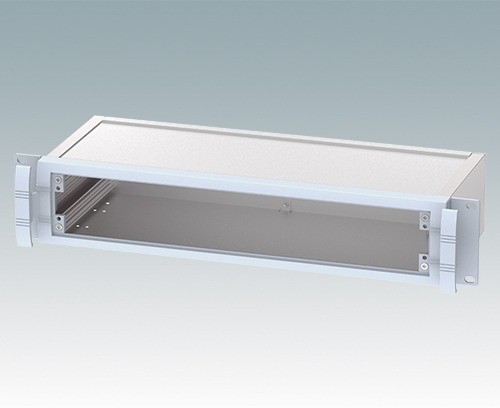

M5920015
Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
M5920015
METTEC 19" 2Ux6.59"Light gray RAL 7035
3.46″x19.00″x6.59″

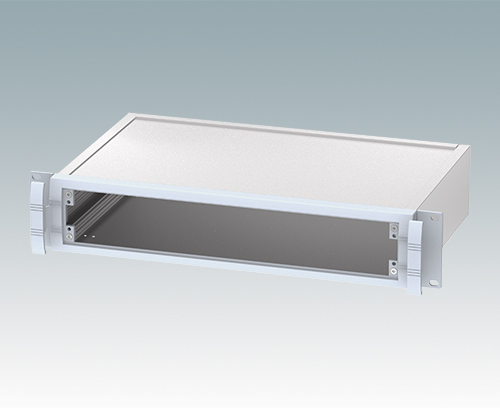

M5920025
Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
M5920025

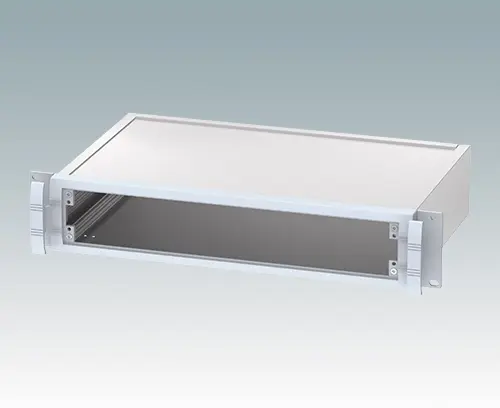

METTEC 19" 2Ux10.35"Light gray RAL 7035
3.46″x19.00″x10.53″

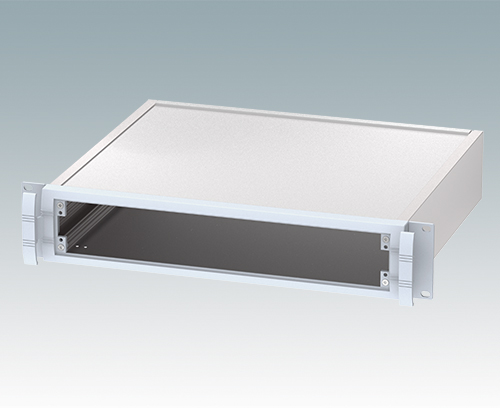

M5920035
Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
M5920035
METTEC 19" 2Ux14.46"Light gray RAL 7035
3.46″x19.00″x14.47″
M5930015
Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
M5930015

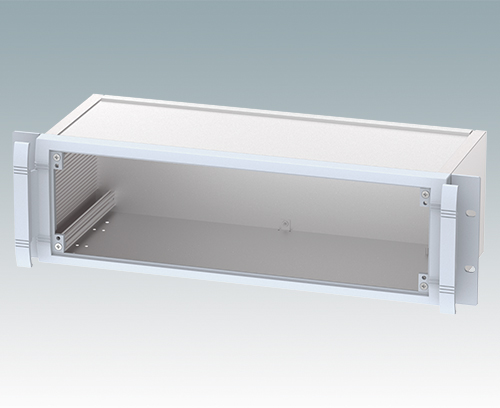

METTEC 19" 3Ux6.59"Light gray RAL 7035
5.22″x19.00″x6.59″

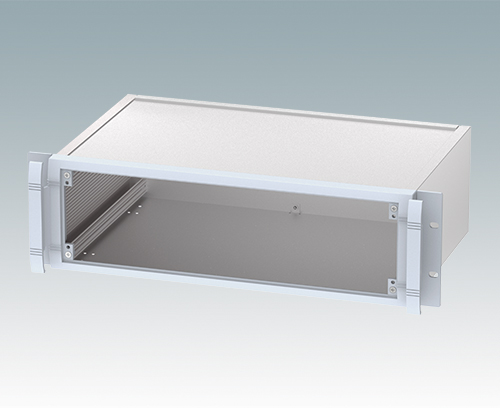

M5930025
Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
M5930025
METTEC 19" 3Ux10.35"Light gray RAL 7035
5.22″x19.00″x10.53″

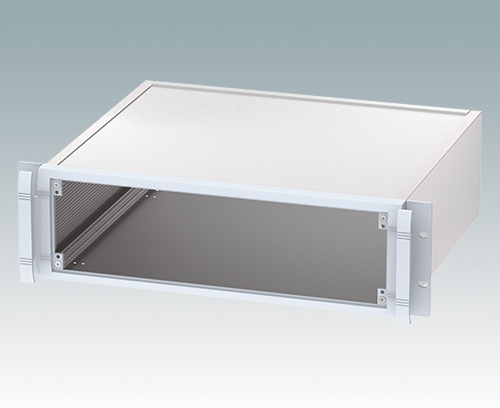

M5930035
Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
M5930035
METTEC 19" 3Ux14.46"Light gray RAL 7035
5.22″x19.00″x14.47″
M5900016
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kit

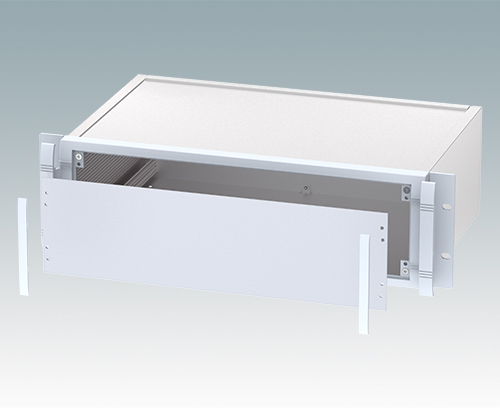

M5900020
Supply Front panel, 2 trims (fixings supplied with the cases)
M5900020
Front panel kit (2U)Matt anodized
15.45″x0.08″x2.64″
M5900030
Supply Front panel, 2 trims (fixings supplied with the cases)
M5900030
Front panel kit (3U)Matt anodized
15.45″x0.08″x4.37″

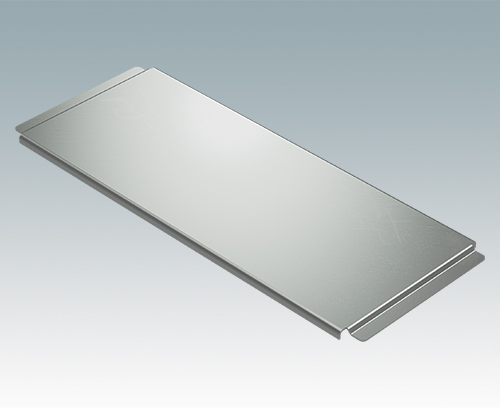

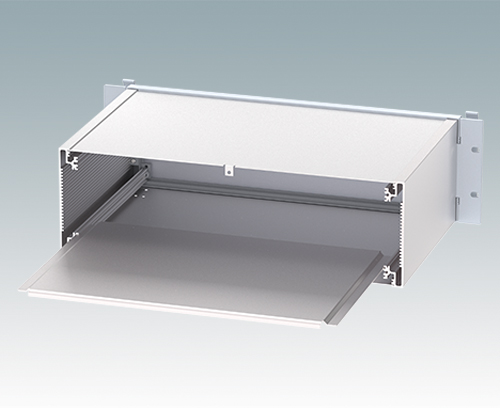

M5900201
Supply Chassis plate
M5900201
Chassis plate (6.59")Natural finish
14.84″x5.87″x0.30″
M5900202
Supply Chassis plate
M5900202

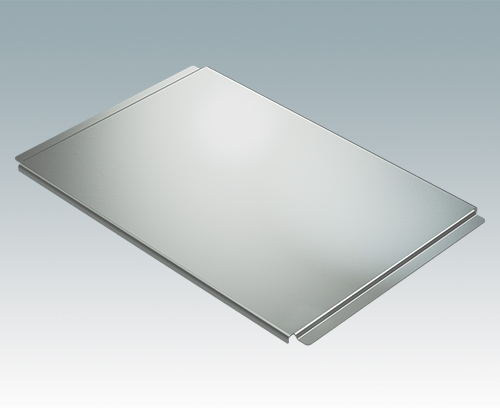

Chassis plate (10.35")Natural finish
14.84″x9.80″x0.30″

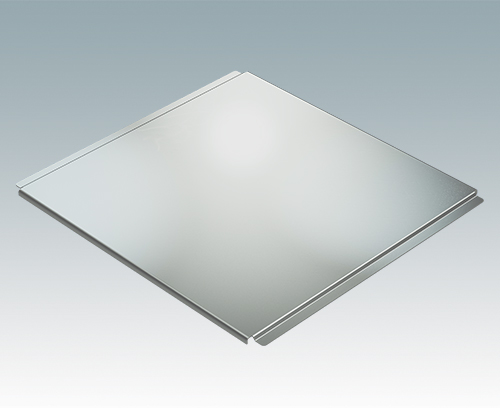

M5900203
Supply Chassis plate
M5900203
Chassis plate (14.46")Natural finish
14.84″x13.74″x0.30″
M6000035
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).
M6000035
