M5900201 Chassis plate (6.59

M5900201

Chassis plate (6.59")

Internal chassic plate for METTEC 19" enclosures 6.59" deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply

Chassis plate

  • To be used for
M5910015 METTEC 19" 1Ux6.59"

M5910015

METTEC 19" 1Ux6.59" Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x4), M3 x 8 mm (x4). Suppled assembled.

Close

M5910015

METTEC 19" 1Ux6.59"
product added to your list
Aluminum
Light gray RAL 7035
1.73″x19.00″x6.59″

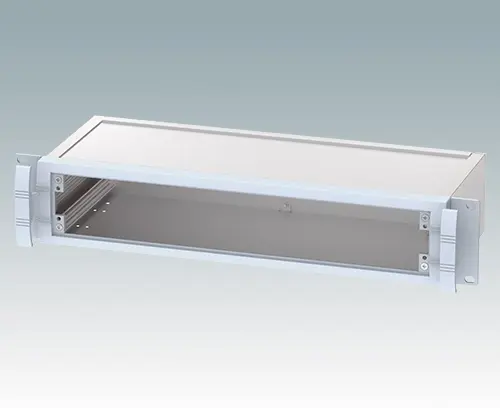

M5920015 METTEC 19" 2Ux6.59"

M5920015

METTEC 19" 2Ux6.59" Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 8 mm (x4). Suppled assembled.

Close

M5920015

METTEC 19" 2Ux6.59"
product added to your list
Aluminum
Light gray RAL 7035
3.46″x19.00″x6.59″
M5930015 METTEC 19" 3Ux6.59"

M5930015

METTEC 19" 3Ux6.59" Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 8 mm (x4). Suppled assembled.

Close

M5930015

METTEC 19" 3Ux6.59"
product added to your list
Aluminum
Interlox 338
5.22″x19.00″x6.59″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Natural finish
Standards
REACH compliant
RoHS compliant
Width
14.843″
377 mm
Depth
5.866″
149 mm
Height
0.295″
7.5 mm

Catalog Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.23 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
