M5930025 METTEC 19

M5930025

METTEC 19" 3Ux10.35"

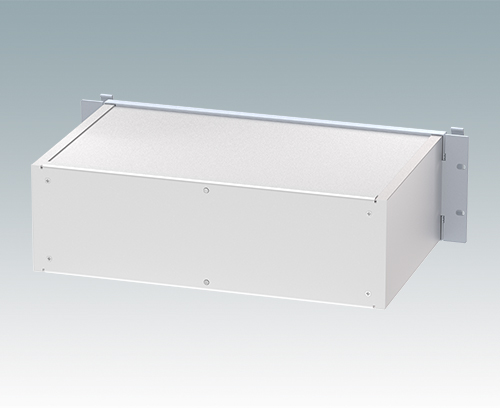

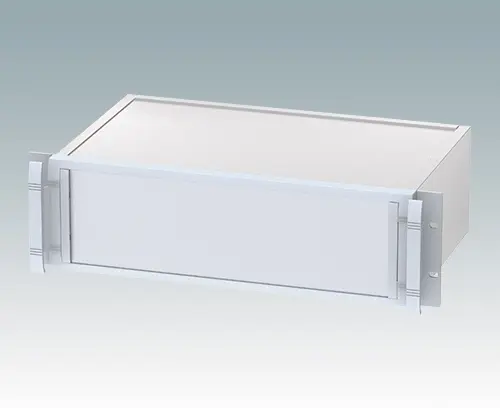

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Supply

Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 8 mm (x4). Suppled assembled.

  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your list
Black RAL 9005
M5900030 Front panel kit (3U)

M5900030

Front panel kit (3U) Anodized aluminum front panel kit for 3U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900030

Front panel kit (3U)
product added to your list
Aluminum
Matt anodized
15.45″x0.08″x4.37″
M5900202 Chassis plate (10.35")

M5900202

Chassis plate (10.35") Internal chassic plate for METTEC 19" enclosures 10.35" deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply Chassis plate

Close

M5900202

Chassis plate (10.35")
product added to your list
Aluminum
Natural finish
14.84″x9.80″x0.30″
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your list
Light gray RAL 7035
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Interlox 338,
Light gray RAL 7035
Standards
DIN 41494
REACH compliant
IEC 297-1
RoHS compliant
Height
5.220″
132.6 mm
Width
19.000″
482.6 mm
Depth
10.531″
267.5 mm
Height Unit
3 U
PCB length, base
9.843″
250 mm
PCB width, base
14.921″
379 mm

Catalog Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
