M5930015

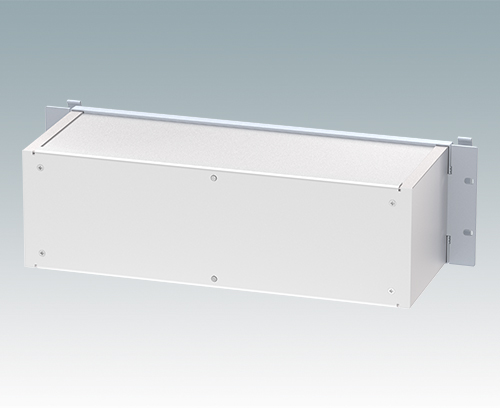

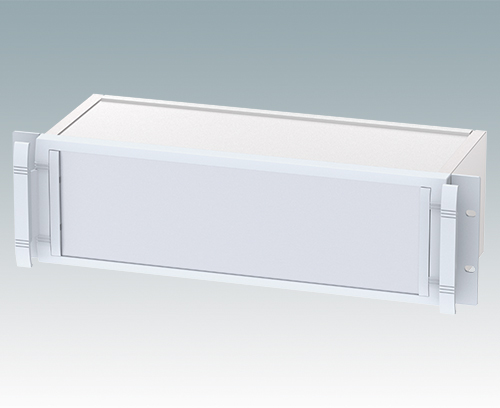

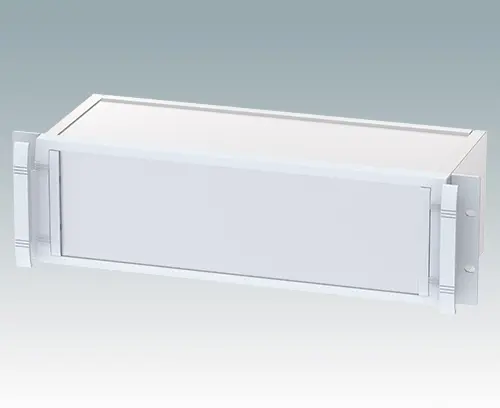

METTEC 19" 3Ux6.59"

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish. The enclosure can be supplied fully painted on request.

Supply

Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 8 mm (x4). Suppled assembled.

  • Components/Accessories

Accessory

AltText

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
AltText

M5900030

Front panel kit (3U) Anodized aluminum front panel kit for 3U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5900030

Front panel kit (3U)
product added to your basket
Aluminum
Matt anodized
15.45″x0.08″x4.37″
AltText

M5900201

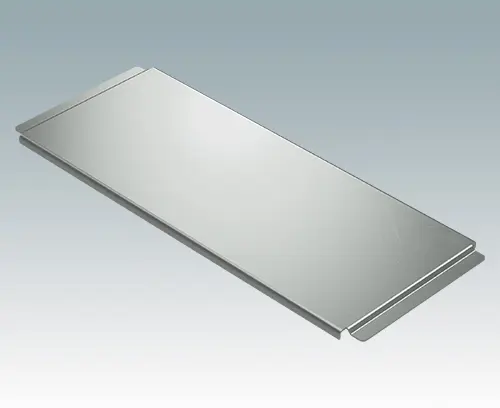

Chassis plate (6.59") Internal chassic plate for METTEC 19" enclosures 6.59" deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply Chassis plate

Close

M5900201

Chassis plate (6.59")
product added to your basket
Aluminum
Natural finish
14.84″x5.87″x0.30″
AltText

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light gray RAL 7035
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Light gray RAL 7035,
Iridite NCP
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
Height
5.220″
132.6 mm
Width
19.000″
482.6 mm
Depth
6.594″
167.5 mm
Height Unit
3 U
PCB length, base
5.906″
150 mm
PCB width, base
14.921″
379 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
2 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
