METTEC 19" 2Ux14.46"

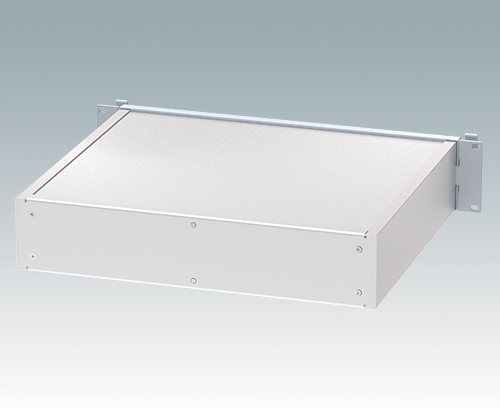

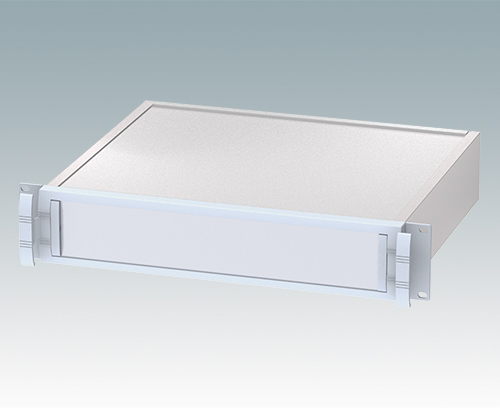

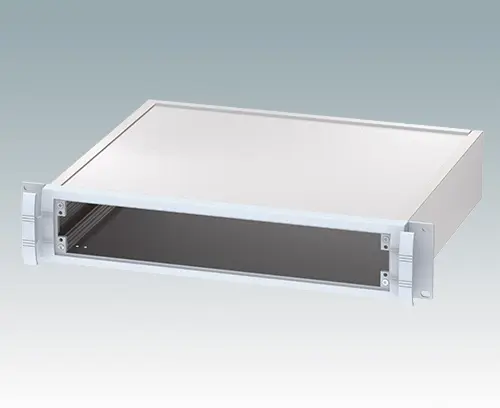

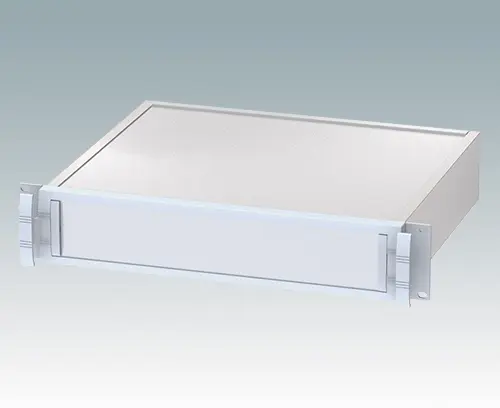

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminum design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
SupplyFront bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for M5920035
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory
M5900016
19" mounting kit
Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kitproduct added to your basket
M5900020
Front panel kit (2U)
Anodized aluminum front panel kit for 2U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.
Supply Front panel, 2 trims (fixings supplied with the cases)
M5900020
Front panel kit (2U)product added to your basket
Matt anodized
15.45″x0.08″x2.64″
M5900203
Chassis plate (14.46")
Internal chassic plate for METTEC 19" enclosures 14.46" deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.
Supply Chassis plate
M5900203
Chassis plate (14.46")product added to your basket
Natural finish
14.84″x13.74″x0.30″
M6000035
19" mounting kit
Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).
M6000035
19" mounting kitproduct added to your basket
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Color
Light gray RAL 7035,
Natural finish
Natural finish
Standards
DIN 41494
REACH compliant
IEC 60297-3
RoHS compliant
REACH compliant
IEC 60297-3
RoHS compliant
Height
3.465″
88 mm
Width
19.000″
482.6 mm
Depth
14.469″
367.5 mm
Height Unit
2 U
PCB length, base
13.780″
350 mm
PCB width, base
14.921″
379 mm
Catalog Pages
- METTEC 19" catalog (English) 3,211 KB
- Catálogo METTEC 19" (Español) 3,272 KB
Drawings
- PDF-File 269 KB
- AutoCAD DWG-File 405 KB
- AutoCAD DXF-File 2,104 KB
3D Models
- M5920035.x_t 1,597 KB
- M5920035.sat 3,969 KB
- M5920035.stp 1,731 KB
3D PDF View (Open in Acrobat Reader)
- M5920035.pdf 1,261 KB
Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
(METCASE product)
76169990
Country of manufacture
UK
View our customizing options and don't forget to request a quotation!
