M5625315 UNIMET-PLUS 5

M5625315

UNIMET-PLUS 5

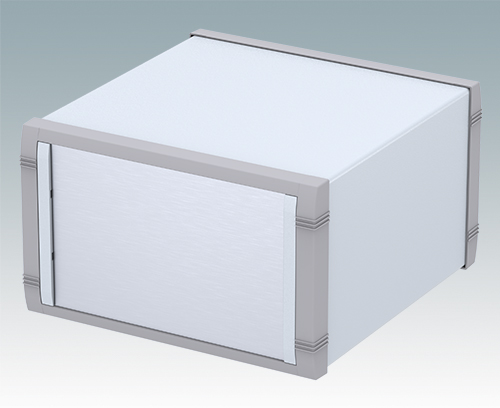

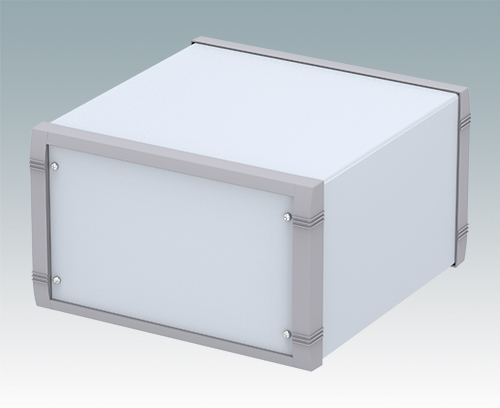

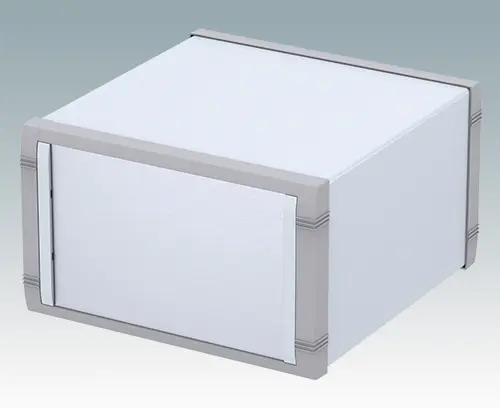

Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version

Without handle/bail arm

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

  • Components/Accessories

Accessory

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm fixing screws.

Close

M5600001

PCB mounting kit
product added to your list
PA 6
Black RAL 9005
M5600010 PCB Fixing Screws, M3

M5600010

PCB Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customized with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB Fixing Screws, M3
product added to your list
Steel
Zinc coated
0.24″
M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600015

Case Feet Kit 1
product added to your list
ABS (UL 94 HB)
Light gray RAL 7035
1.34″x0.67″x0.63″
M5600045 Case Feet Kit 2

M5600045

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version With tilt legs.

Supply Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

Close

M5600045

Case Feet Kit 2
product added to your list
ABS (UL 94 HB)
Light gray RAL 7035
1.34″x0.67″x0.63″
M5700202 PCB guide, 8.50"

M5700202

PCB guide, 8.50" Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 3/3H/4/4H/5/5H/6/6H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700202

PCB guide, 8.50"
product added to your list
PA 6/6 (UL 94 V-2)
White
M5700616 Front panel kit (5/5H)

M5700616

Front panel kit (5/5H) Front panel kit for Unimet 5/5H and Unimet-Plus 5/5H enclosures. Snap-in trims hide the assembly screws and act as a guide for a membrane keypad or product label.

Supply Front panel, 2 trims (fixings supplied with the cases)

Close

M5700616

Front panel kit (5/5H)
product added to your list
Aluminum
Matt anodized
8.64″x0.08″x5.12″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Light gray/window gray RAL 7035/7040
Standards
REACH compliant
RoHS compliant
Width
9.843″
250 mm
Depth
10.354″
263 mm
Height
5.906″
150 mm
PCB length, base
10.000″
254 mm
PCB width, base
8.031″
204 mm

Catalog Pages

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
