19" Enclosures
M6610354
TECHNOMET 10.5" 3Ux13"

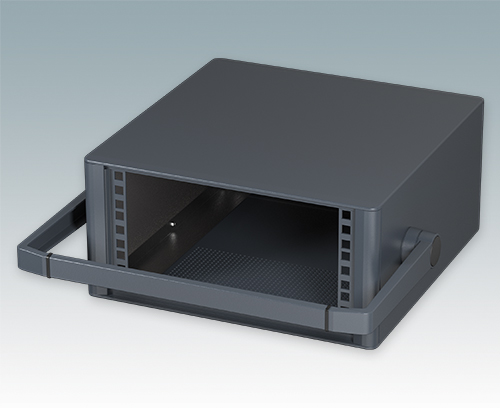

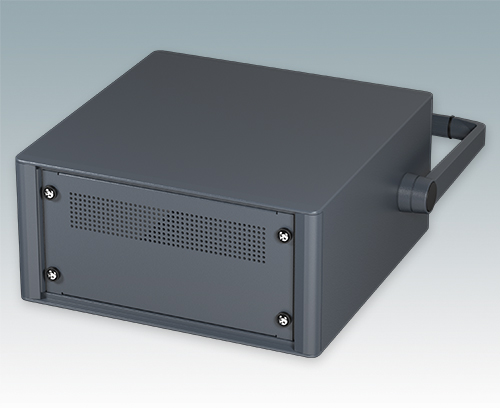

Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a bail arm and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.
VersionRC103H with handle/bail arm
SupplyFront bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), bail arm kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.
Generate Your PDF Datasheet for M6610354
Please select the product details you would like to include in the PDF.
Accessory
M5900016
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kit
M5900018
Supply M6 caged nuts (x4), M6 x 16 mm black screw (x4) and black plastic cup washer (x4).
M5900018
19" mounting kit black screws
M6010001
Supply Front panel
M6010001
Front panel 3Ux10.5"Matt anodized
10.60″x0.12″x5.22″
REACH compliant
IEC 60297-3
RoHS compliant
Catalog Pages
- TECHNOMET 19" catalog (English) 4,203 KB
- Catálogo TECHNOMET 19" (Español) 4,269 KB
Drawings
- M6610354.dwg.zip 1,356 KB
- PDF-File 486 KB
- M6610354.dxf.zip 1,236 KB
3D Models
- M6610354.sat 27,337 KB
- M6610354.stp 8,372 KB
- M6610354.x_t 6,881 KB
(METCASE product)
