Universal feet for all enclosures
Modern Technofeet KitsTechnofeet Kit 2 - With tilt legsCase Feet Kit 2 - With tilt legsNon-slip rubber foot Ø0.5" x 0.2"Clear self-adhesive non-slip feet 13x13x6mmUniversal feet for all enclosures
Modern Technofeet Kits

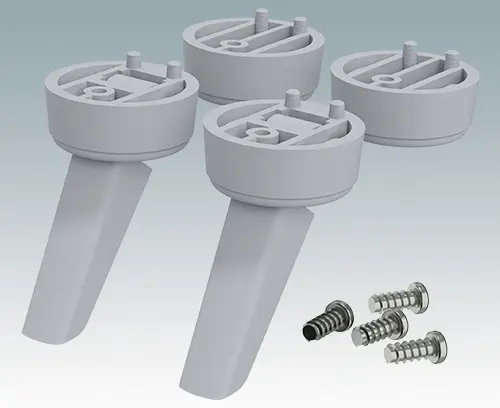

Technofeet Kit 2 - With tilt legs
Case Feet Kit 2 - With tilt legs
Non-slip rubber foot Ø0.5" x 0.2"
Clear self-adhesive non-slip feet 13x13x6mm
Universal feet for all enclosures

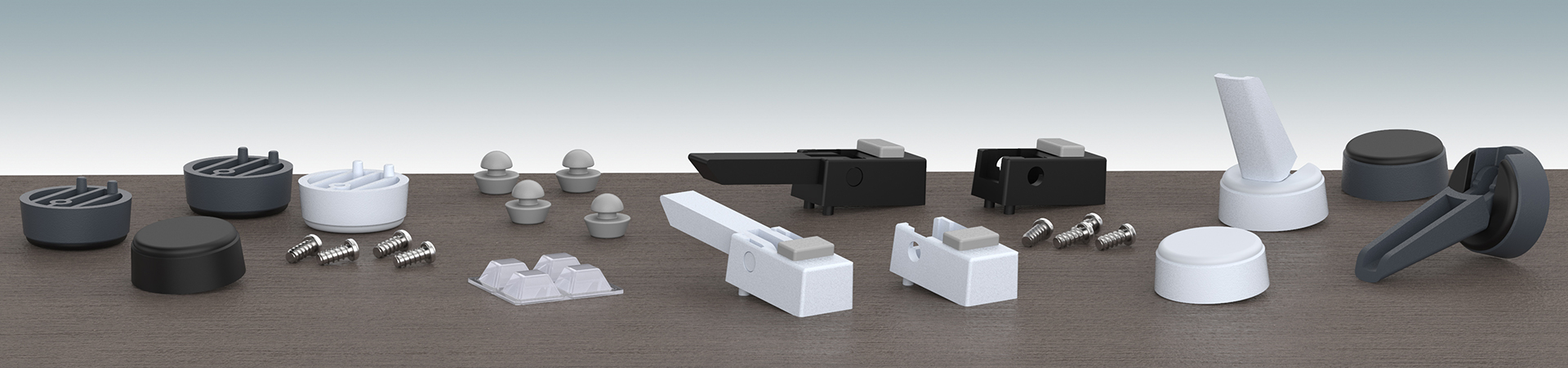

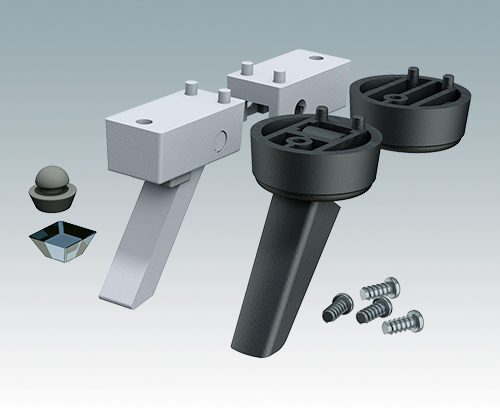

Enclosure Feet

  • Universal feet for mounting to metal or plastic enclosures

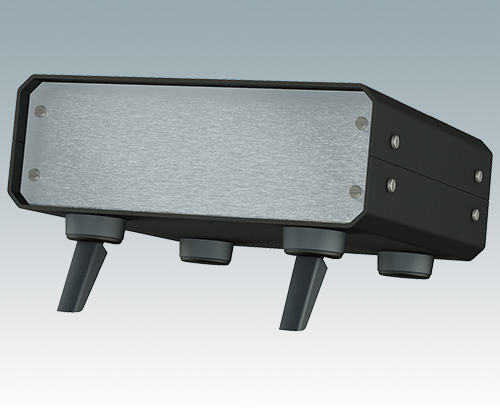

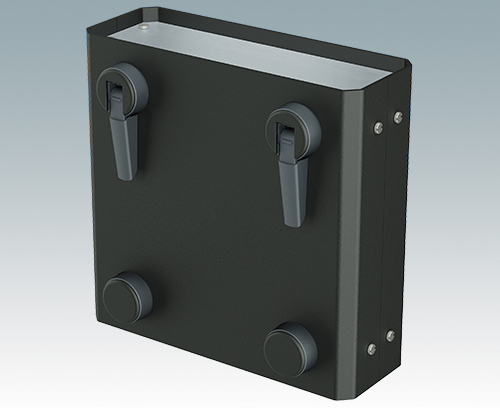

  • Technofeet - stylish and modern round plastic feet with or without tilt legs

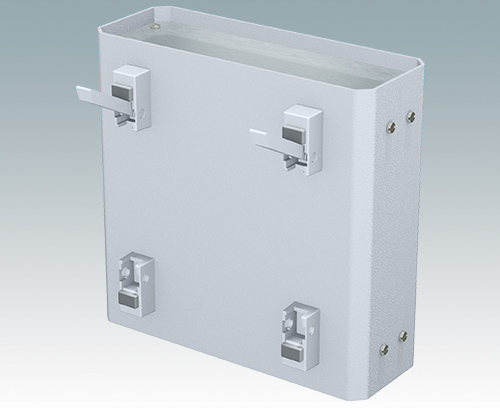

  • Case Feet - tough plastic feet with or without tilt legs
  • Self-adhesive rubber non-slip feet

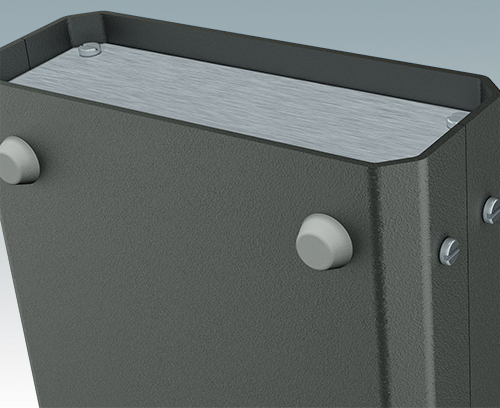

  • Push-in rubber non-slip feet
  • Call us for a free sample!

Applications

Universal feet for mounting to any metal or plastic enclosures.


  • Browse Full List
  • Catalog Documents
NEW PRODUCT
View

A9257107  Add to my list
Case Feet Kit 1

ABS (UL 94 HB)
off-white RAL 9002
1.34″x0.67″x0.63″

A9257207  Add to my list
Case Feet Kit 2

ABS (UL 94 HB)
off-white RAL 9002
1.34″x0.67″x0.63″

M5403002  Add to my list
Rubber Foot

Rubber
gray
0.50″x0.50″x0.20″

M5600015  Add to my list
Case Feet Kit 1

ABS (UL 94 HB)
light gray RAL 7035
1.34″x0.67″x0.63″

M5600019  Add to my list
Case Feet Kit 1

ABS (UL 94 HB)
black RAL 9005
1.34″x0.67″x0.63″

M5600045  Add to my list
Case Feet Kit 2

ABS (UL 94 HB)
light gray RAL 7035
1.34″x0.67″x0.63″

M5600049  Add to my list
Case Feet Kit 2

ABS (UL 94 HB)
black RAL 9005
1.34″x0.67″x0.63″

M5600100  Add to my list
Non-slip feet

Rubber
transparent
0.50″x0.50″x0.22″

M6420104  Add to my list
Technofeet Kit 1

ABS (UL 94 HB)
anthracite RAL 7016
1.18″x1.18″x0.47″

M6420105  Add to my list
Technofeet Kit 1

ABS (UL 94 HB)
light gray RAL 7035
1.18″x1.18″x0.47″

M6420109  Add to my list
Technofeet Kit 1

ABS (UL 94 HB)
black RAL 9005
1.18″x1.18″x0.47″

M6420204  Add to my list
Technofeet Kit 2

ABS (UL 94 HB)
anthracite RAL 7016
1.18″x1.18″x0.47″

M6420205  Add to my list
Technofeet Kit 2

ABS (UL 94 HB)
light gray RAL 7035
1.18″x1.18″x0.47″

M6420209  Add to my list
Technofeet Kit 2

ABS (UL 94 HB)
black RAL 9005
1.18″x1.18″x0.47″

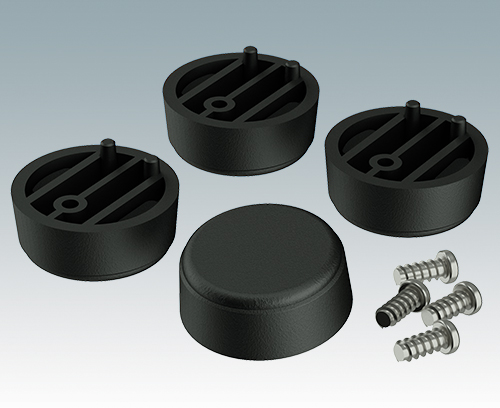

M6420109

Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version
Without tilt legs

Supply
Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

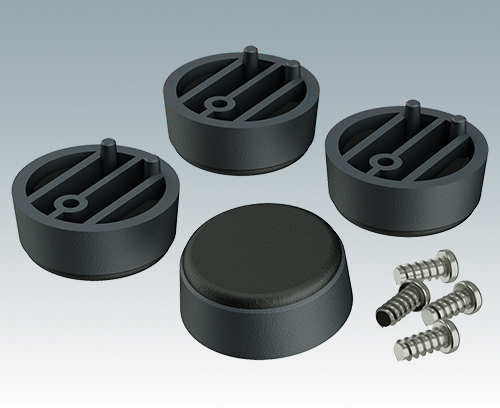

M6420104

Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version
Without tilt legs

Supply
Foot moulding (x4), black TPE non-slip insert (x4), self-tapping screw (x4).

M5600049

Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version
With tilt legs.

Supply
Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

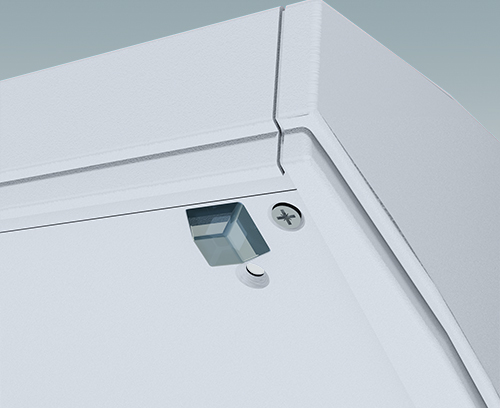

M5600100

Self-adhesive non-slip feet for enclosures. Peel off the backing pad.

Supply
4 feet on a backing pad

M5600015

Universal case feet for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness. Call us for a free sample.

Version
Without tilt legs.

Supply
Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M5600045

Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version
With tilt legs.

Supply
Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

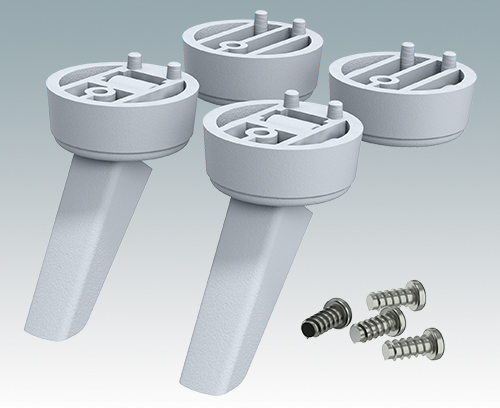

M6420205

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version
With tilt legs

Supply
Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

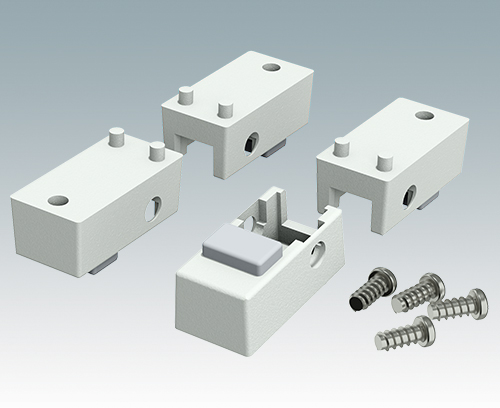

A9257107

Universal case feet for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness. Call us for a free sample.

Version
Without tilt legs.

Supply
Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

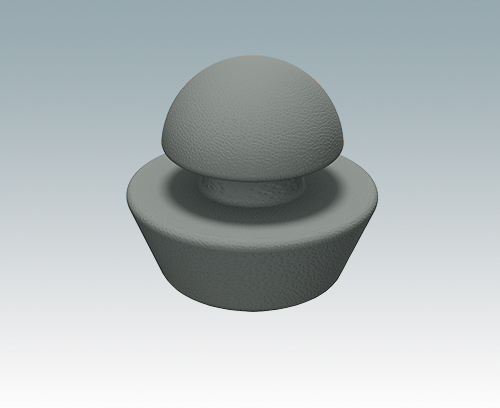

M5403002

Push-in grey rubber non-slip foot for fitting to any metal or plastic enclosures with a panel thickness of up to 0.8". Drill hole Ø0.28" in panel to fit.

Supply
1 rubber foot

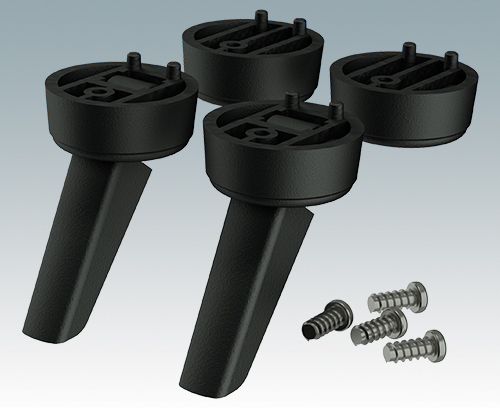

M6420209

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version
With tilt legs

Supply
Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

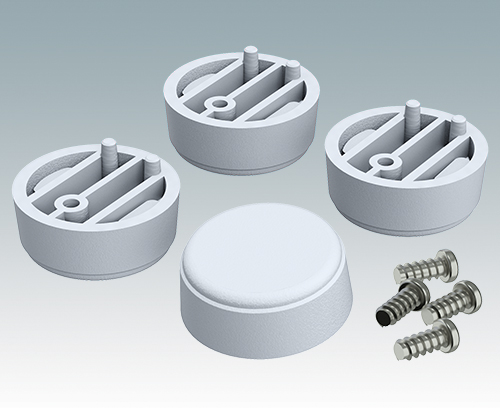

M6420105

Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version
Without tilt legs

Supply
Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M6420204

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version
With tilt legs

Supply
Foot moulding (x4), tilt leg (x2), black TPE non-slip insert (x4), self-tapping screw (x4).

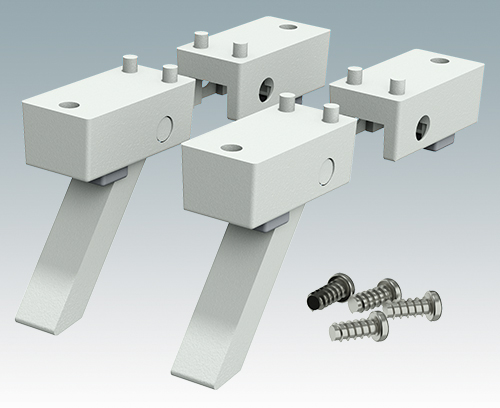

A9257207

Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version
With tilt legs.

Supply
Foot molding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M5600019

Universal case feet for all types of plastic and metal enclosures with max. 0.016" (4 mm) wall thickness. Call us for a free sample.

Version
Without tilt legs.

Supply
Foot molding (x4), TPE non-slip insert (x4), self-tapping screw (x4).
