M6420209 Technofeet Kit 2

M6420209

Technofeet Kit 2

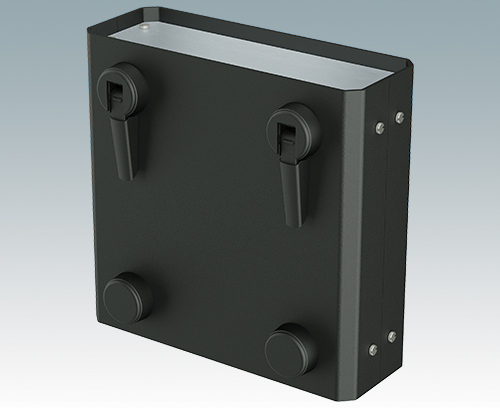

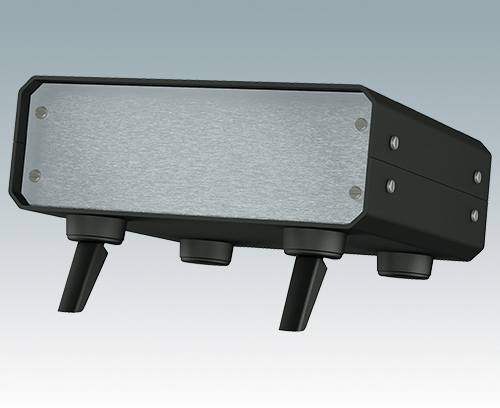

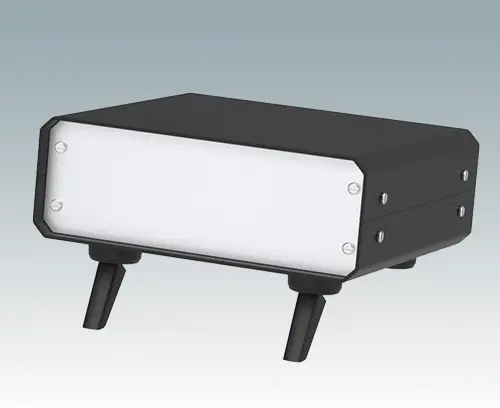

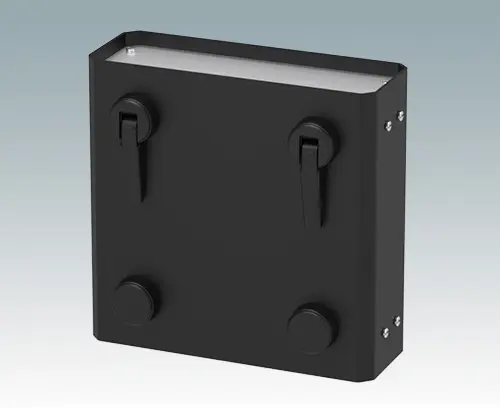

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 0.12" (3 mm) with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.


Version

With tilt legs

Supply

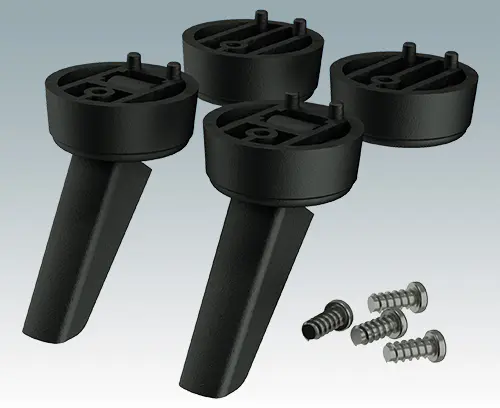

Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
Black RAL 9005
Standards
REACH compliant
RoHS compliant
Length
1.181″
30 mm
Width
1.181″
30 mm
Height
0.472″
12 mm

Catalog Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
31 g
Customs tariff number
(METCASE product)
39269097
Country of manufacture
U.K.
