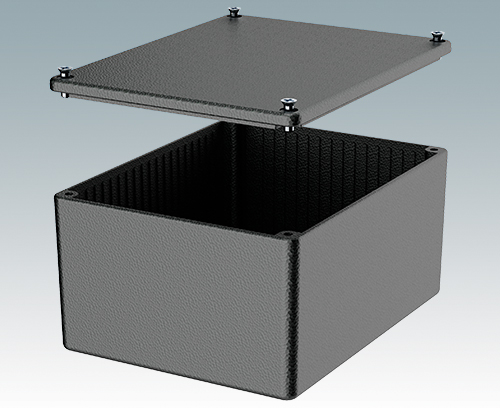

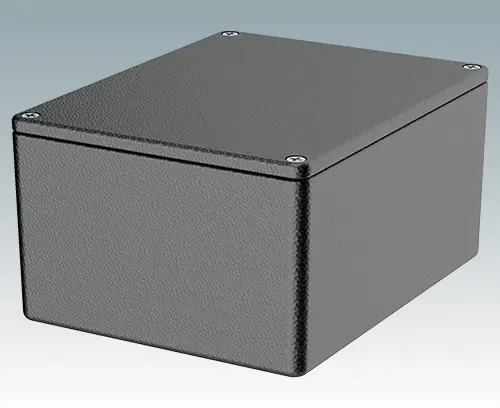

5007-17-PAT Diecast Enclosure

5007-17-PAT

Diecast Enclosure

Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply

Base section, lid section, M3 lid screws (x4)

  • Components/Accessories

Accessory

5000-KIT Mounting Lugs

5000-KIT

Mounting Lugs External mounting lugs kit for fixing the assembled enclosure to a wall, machine or panel. Adjustable to suit mounting holes.

Supply 4 mounting lugs.

Close

5000-KIT

Mounting Lugs
product added to your list
Aluminum
Natural finish
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Color
Hammertone
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
4.764″
121 mm
Width
3.740″
95 mm
Height
2.402″
61 mm
PCB length, base
4.606″
117 mm
PCB width, base
3.583″
91 mm

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
270 g
Customs tariff number
(METCASE product)
8473302000
Country of manufacture
China
