5006-16-NAT

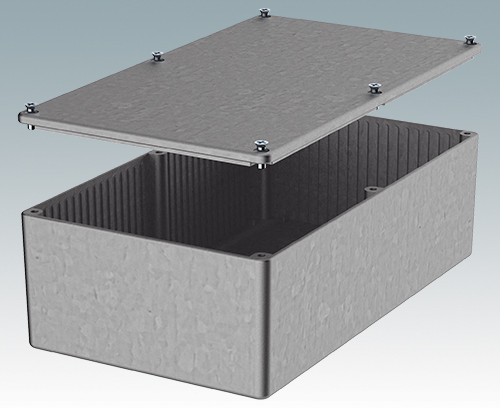

Diecast Enclosure

Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply

Base section, lid section, M3 lid screws (x4)

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for 5006-16-NAT

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

5000-KIT Mounting Lugs

5000-KIT

Mounting Lugs External mounting lugs kit for fixing the assembled enclosure to a wall, machine or panel. Adjustable to suit mounting holes.

Supply 4 mounting lugs.

5000-KIT

Mounting Lugs
product added to your basket

Natural finish
FT094-505 Sealing Gasket (NEMA 4)

FT094-506

Sealing Gasket (NEMA 4)

FT094-506

Sealing Gasket (NEMA 4)
product added to your basket

Black

Material

Protection class
Color
Natural finish
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
7.559″
192 mm
Width
4.409″
112 mm
Height
2.402″
61 mm
PCB length, base
7.402″
188 mm
PCB width, base
4.252″
108 mm

Drawings

3D Models

Weight/1 part
529 g
Customs tariff number
(METCASE product)
8473302000
Country of manufacture
China
