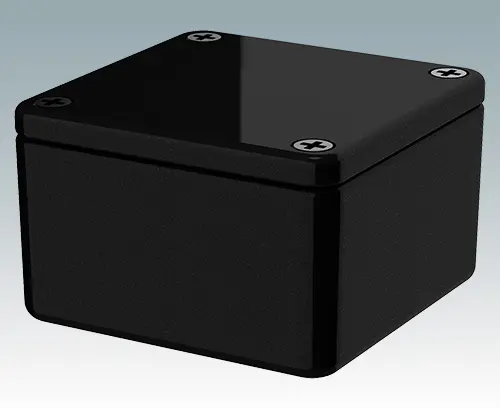

5001-11-BLK Diecast Enclosure

5001-11-BLK

Diecast Enclosure

Highly durable and shock resistant diecast enclosure. Vertical guides and stand-offs provided in the base for locating PCBs and assemblies. IP 65 (NEMA 4) sealing gasket and external mounting brackets available as accessories.

Supply

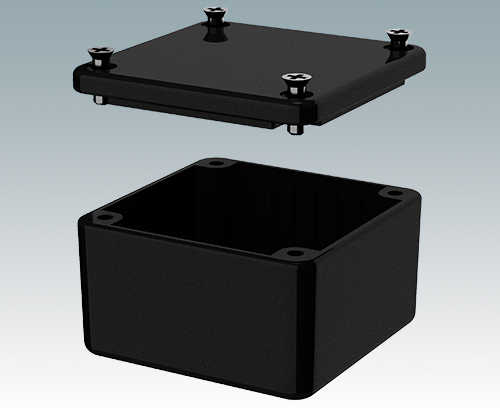

Base section, lid section, M3 lid screws (x4)

  • Components/Accessories

Accessory

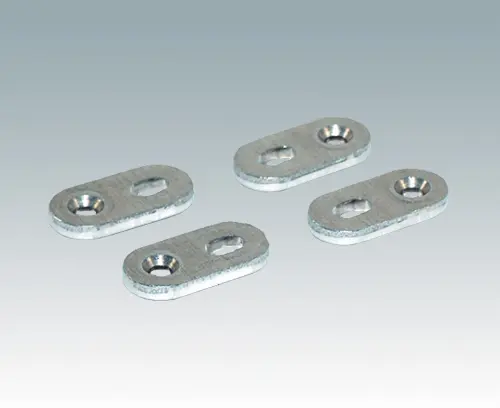

5000-KIT Mounting Lugs

5000-KIT

Mounting Lugs External mounting lugs kit for fixing the assembled enclosure to a wall, machine or panel. Adjustable to suit mounting holes.

Supply 4 mounting lugs.

Close

5000-KIT

Mounting Lugs
product added to your list
Aluminum
Natural finish
FT094-505 Sealing Gasket (NEMA 4)

FT094-517

Sealing Gasket (NEMA 4) Molded sealing gasket which fits between to the base and lid sections.
Close

FT094-517

Sealing Gasket (NEMA 4)
product added to your list
Rubber
Black
IP 65
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Color
Black RAL 9004
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
1.969″
50 mm
Width
1.969″
50 mm
Height
1.220″
31 mm
PCB length, base
1.811″
46 mm
PCB width, base
1.811″
46 mm

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
66 g
Customs tariff number
(METCASE product)
8473302000
Country of manufacture
China
