Unidesk sloping front enclosures get more space

Unidesk Enclosures

Ergonomic IP 54 sloping front desktop enclosures

How do you get more space out of an aluminum enclosure but retain the same external dimensions? It’s not easy – but it’s not impossible either. All it takes is an obsession with design and a little lateral thinking.

Our UNIDESK instrument enclosures are now larger on the inside after we removed a rail – giving you more space to install controls, connectors, switches and a power inlet.

It also means that no extra milling is required, making it easier to install components.

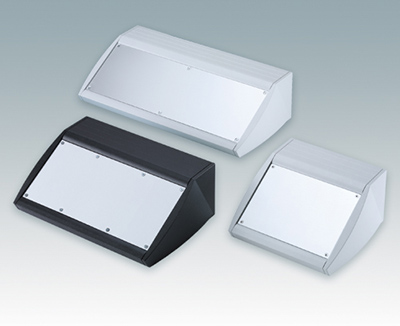

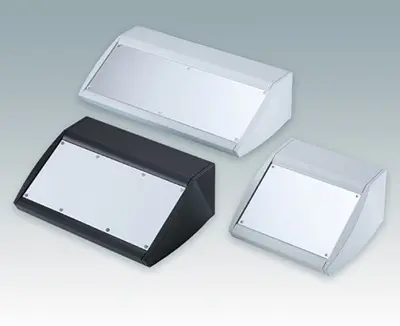

UNIDESK sloping front terminal enclosures are available in two standard colors – Light Gray (RAL 7035) and Black (RAL 9005) – and three sizes:

  • M200 (7.87" x 7.87" x 4.02")
  • M300 (11.81” x 7.87" x 4.02")
  • M400 (15.75” x 7.87" x 4.02")

Need UNIDESK in custom widths? No problem, they are manufactured from extrusions so bespoke sizes are very cost effective.

UNIDESK can be desk mounted or wall mounted. Typical applications include point-of-sale terminals, medical technology, machine controllers and security consoles. The units are rated to IP54 provided that you cover the PCB fixing holes in the base.

For more information, contact our sales team.

View UNIDESK range >>
