M7000746

Front Panel P – C430

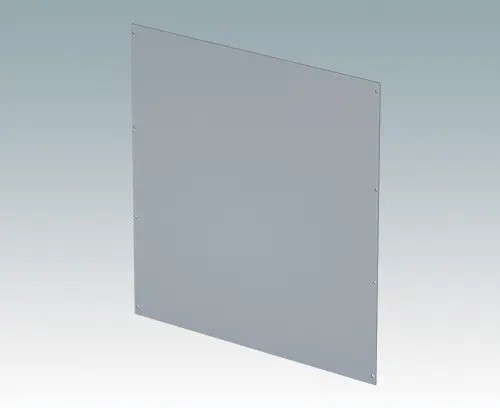

Painted front panel for enclosure version C430.

Supply

Front panel (fixings supplied with the cases).

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M7000746

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

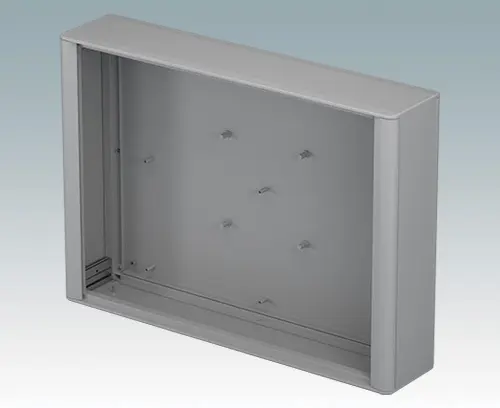

M7042202 TECHNOMET-CONTROL C430V

M7042202

TECHNOMET-CONTROL C430V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP900, MTP1000, TP1200, MTP1200
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10/12

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

M7042202

TECHNOMET-CONTROL C430V
product added to your basket

Traffic gray A RAL 7042
16.54″x11.81″x3.74″

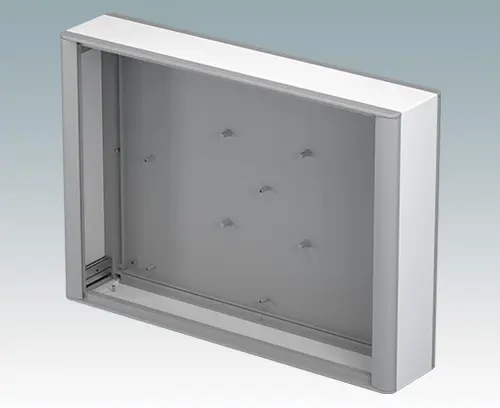

M7042206 TECHNOMET-CONTROL C430V

M7042206

TECHNOMET-CONTROL C430V

Modern and highly attractive aluminum instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: TP900, MTP1000, TP1200, MTP1200
TURCK: TX707, TX807, TX710, TX810
BEIJER: X2 base 5/7/10 v2, X2 Pro 4/7/10/12

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x12), M4 x 16 mm (x8). Supplied assembled.

M7042206

TECHNOMET-CONTROL C430V
product added to your basket

Traffic white/traffic gray A RAL 9016/7042
16.54″x11.81″x3.74″
Material

Color
Traffic gray A RAL 7042
Standards
REACH compliant
RoHS compliant
Width
15.433″
392 mm
Height
0.079″
2 mm
Depth
11.449″
290.8 mm

Catalog Pages

Drawings

3D Models

Weight/1 part
0.7 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
UK

View our customizing options and don't forget to request a quotation!
