M6619645 TECHNOMET 19'' 6Ux15.74"
M6619645 TECHNOMET 19'' 6Ux15.74"M6619645 TECHNOMET 19'' 6Ux15.74"

M6619645

TECHNOMET 19'' 6Ux15.74"

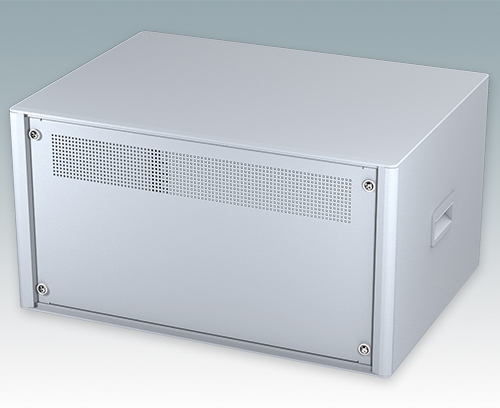

Modern and highly attractive 19" instrument enclosure for mounting 6U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminum case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version

With side handles

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and gray plastic cup washer (x4). Supplied assembled.


  • Technical Data
  • Drawings /
    Further Information
  • Purchasing Data
Material
Color
light gray RAL 7035
Standards
DIN 41494
REACH compliant
IEC 297-1
RoHS compliant
Height
11.374″
288.9 mm
Width
21.260″
540 mm
Depth
15.748″
400 mm
Height Unit
6 U
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
  • Suitable System Components
NEW PRODUCT
View

Accessory

M6000035  Add to my list
19" mounting kit

light gray RAL 7035

M6019010  Add to my list
Front panel 1Ux19"

Aluminum
matt anodized
19.00″x0.12″x1.72″

M6019011  Add to my list
Front panel 1Ux19" vented

Aluminum
matt anodized
19.00″x0.12″x1.72″

M6019060  Add to my list
Front panel 6Ux19"

Aluminum
matt anodized
19.00″x0.12″x10.47″

M6019010

Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6019060

Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6000035

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

M6019011

Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1

Version
With ventilation slots

Supply
Panel
