Painting and finishing

Painting & Finishing

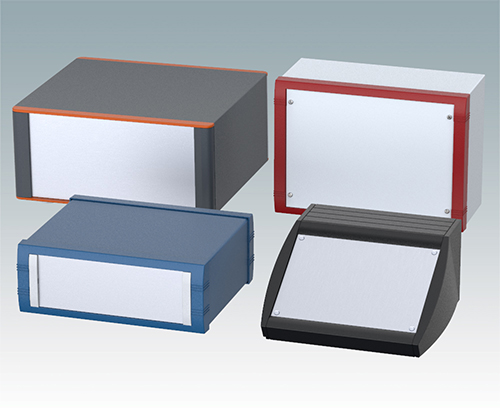

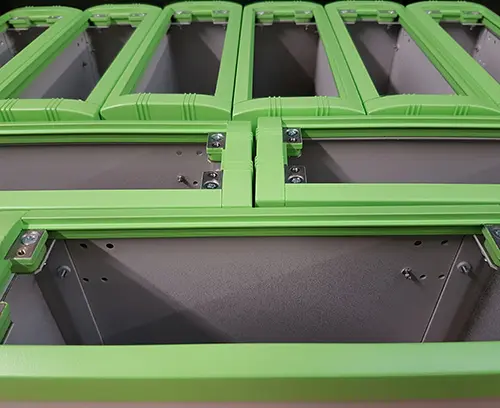

Enclosures and front panels finished in your corporate colors

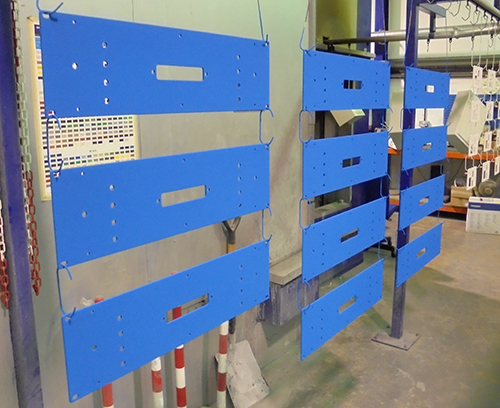

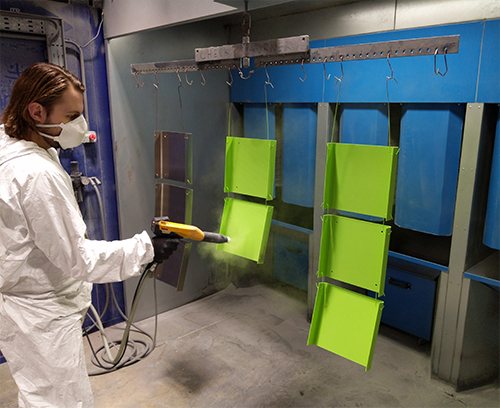

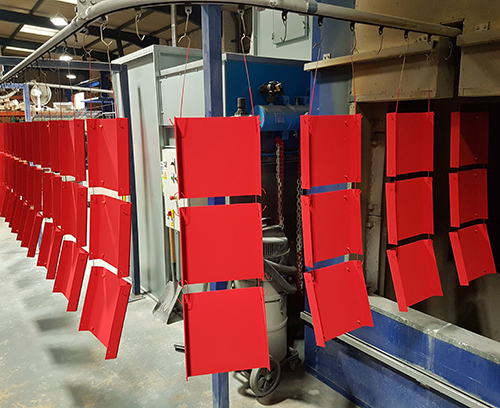

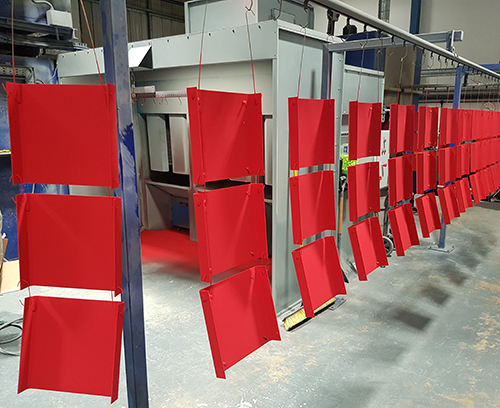

Our in-house facilities include a large powder paint line and a wet paint cubicle.

Optional Stocked Powder Paints (Listed below)

We keep a large selection powder paints in RAL and Pantone colors in stock. There is no additional charge, or minimum order quantity, for painting our standard enclosures in one of our stocked paints. Simply select your desired color or color combination from the list below.

Note: color images are provided as a guide only. Please refer to the exact RAL or Pantone references before finalizing your color choice.

Custom Colors

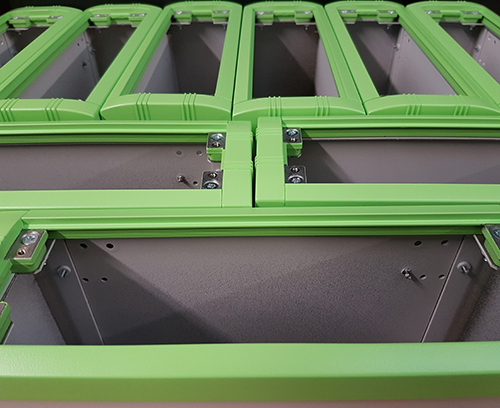

We can also supply enclosures, front panels and custom metalwork painted in your desired paint colour or special finish. The typical minimum order quantity for special colour enclosures and front panels is 10 to 25 units, depending upon the color required.

We generally work with RAL colors, but can match other colors on demand. Talk to our sales team if you need a specific color or finish.

What we offer:

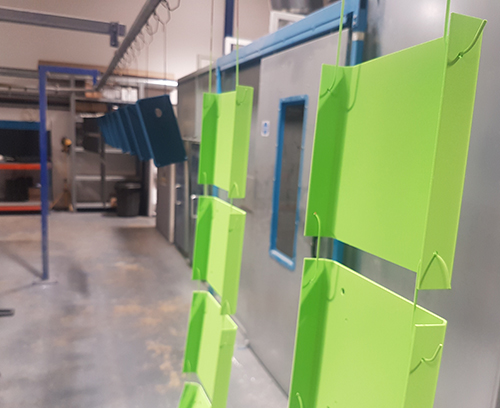

  • Powder polyester painting - tough, high quality finish in smooth, fine and heavy textures

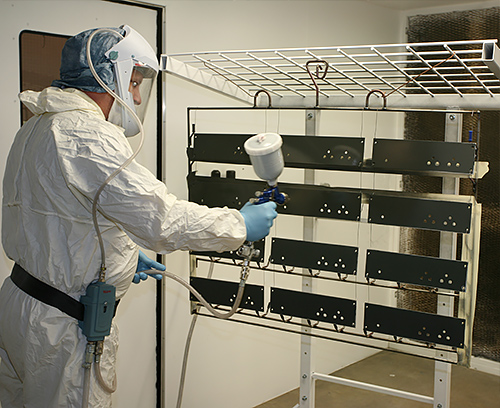

  • Wet painting - tough, chip resistant, in smooth and textured finishes
  • Nickel loaded RFI/EMI shielding lacquers for plastic parts

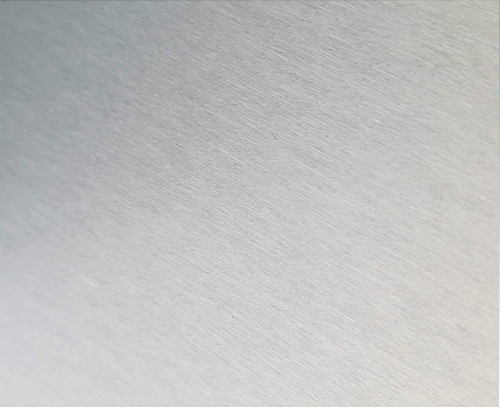

  • Linishing of aluminum panels for a blemish free finish
  • Natural and color anodizing of aluminum panels
  • Interlox 338 conductive/anti-corrosion finish on aluminum panels
  • Iridite NCP finish on aluminum panels
  • Zinc and clear passivate of steel panels.

Use the contact form or call our sales team on (800) 965-9872 for more information and a quotation.

  • Browse Full List
  • Catalog Documents

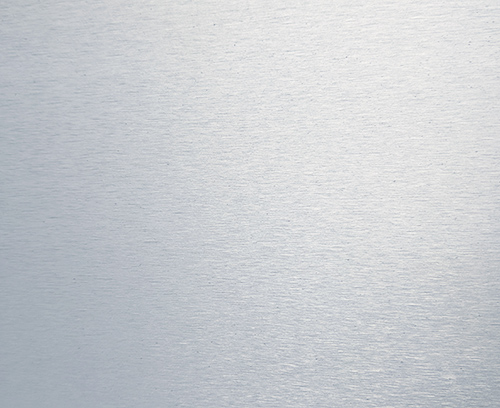

M0000500 Matt Anodized

M0000500

Matt Anodized

This matt anodized finish is standard on all of our front panels. It is optional on rear panels and other custom components made to order.

Because of unavoidable small marks created during our CNC punching and forming processes, we do not recommend anodizing enclosure covers, side panels, top and bases. (These marks are not visible when the items are painted).

The Process

Anodizing is an electrolytic passivation process used to increase the thickness of the natural oxide layer on the surface of metal parts. The process is called anodizing because the part to be treated forms the anode electrode of an electrolytic cell.

Close

M0000500

Matt Anodized

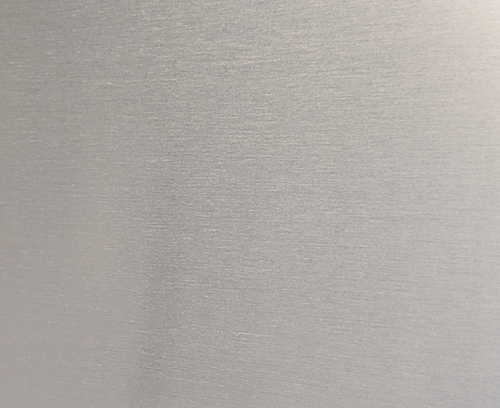

M0000501 Interlox 338

M0000501

Interlox 338

This protective coating is standard on the case section of our METTEC 19" rack cases. It is suitable for internal components and housings fitted in racks and cabinets where the aesthetics of the finish is not important. As a result, we do not recommended it for desktop and portable enclosures.

The Process

Interlox® 338 produces a trivalent chromium conversion coating on both wrought and cast aluminum alloy surfaces. This coating is designed to be an effective corrosion resistant replacement for conventional hexavalent chromates.

Close

M0000501

Interlox 338

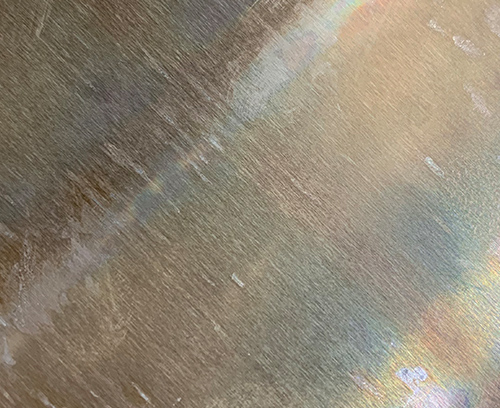

M0000502 Pretreatment

M0000502

Pretreatment

SURFACE TREATMENT BEFORE PAINTING

We put all aluminum and mild steel (CR4) components through a pretreatment process prior to painting. The pretreatment removes oils, greases and other agents used during manufacturing, and converts the metal surface to a non-metallic layer. This significantly improves the application, adhesion and surface finish of the paint.

Notes. Unfinished internal parts of our enclosures also go through this proces. The process gives the material a brown/gold surface coloration which is normal. Panels which are going to be anodized do not go through this process.

The Pretreatment Process Sequence:

  • Tank 1 - Gardoclean® alkali cleaner + Gardobond® A 4913 lightweight amorphous iron phosphate pretreatment
  • Tank 2 - Water rinse
  • Tank 3 - Gardolene® D6870 Chromium-free post pretreatment rinse
  • Drying oven - 150°C, 15 minutes
  • Ready for painting

Gardoclean®, Gardobond® and Gardolene® are registered trademarks of Chemetall GmbH.

Close

M0000502

Pretreatment

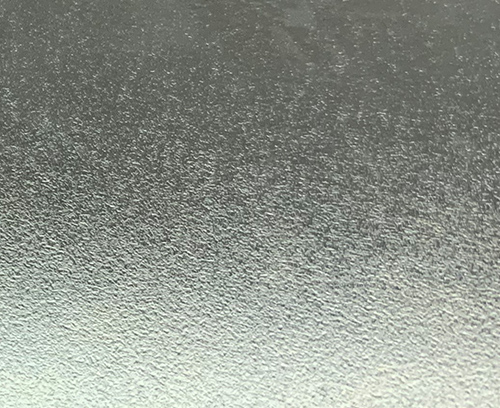

M0000503 Zinc & Clear Passivate

M0000503

Zinc & Clear Passivate

ANTI-CORROSION TREATMENT FOR CR4 MILD STEEL PARTS

Zinc plating in general can be broken into two primary steps. The first step is to add the zinc plating, through the use of electrical current. The second step is to treat the plated metal with a chemical passivate which adds color. These solutions are referred to as chromates (hex chrome) or passivates (tri chrome). To create a clear finish, a clear passivate is used. These passivates leave the metal with a natural color. In other words, the metal will have the silver color of zinc, often also including slight iridescence which can range from blue to yellow to pink.

Advantages of Clear Zinc Plating

Zinc plating with clear passivation gives all the same advantages of any other zinc plating, particularly the addition of considerable corrosion resistance. It also offers some benefits in terms of strength and abrasion resistance.

Close

M0000503

Zinc & Clear Passivate
M0001023 RAL 1023 Paint

M0001023

RAL 1023 Paint

Traffic yellow

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Smooth semi-gloss 85%
Close

M0001023

RAL 1023 Paint Polyester
Traffic yellow RAL 1023
M0002011 RAL 2011 Paint

M0002011

RAL 2011 Paint

Orange

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Smooth semi-gloss
Close

M0002011

RAL 2011 Paint Polyester
Orange RAL 2011
M0003002 RAL 3002 Paint

M0003002

RAL 3002 Paint

Carmine red

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Matt smooth
Close

M0003002

RAL 3002 Paint Polyester
Carmine Red RAL 3002
M0005002 RAL 5002 Paint

M0005002

RAL 5002 Paint

Ultramarine blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005002

RAL 5002 Paint Polyester
Ultramarine blue RAL 5002
M0005003 RAL 5003 Paint

M0005003

RAL 5003 Paint

Saphire blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005003

RAL 5003 Paint Polyester
Saphire blue RAL 5003
M0005005 RAL 5005 Paint

M0005005

RAL 5005 Paint

Signal blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005005

RAL 5005 Paint Polyester
Signal blue RAL 5005
M0005007 RAL 5007 Paint

M0005007

RAL 5007 Paint

Brilliant blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005007

RAL 5007 Paint Polyester
Brilliant blue RAL 5007
M0005008 RAL 5008 Paint

M0005008

RAL 5008 Paint

Grey blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005008

RAL 5008 Paint Polyester
Grey blue RAL 5008
M0005011 RAL 5011 Paint

M0005011

RAL 5011 Paint

Steel blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Semi-gloss
Close

M0005011

RAL 5011 Paint Polyester
Steel blue RAL 5011
M0005015 RAL 5015 Paint

M0005015

RAL 5015 Paint

Sky blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005015

RAL 5015 Paint Polyester
Sky blue RAL 5015
M0005022 RAL 5022 Paint

M0005022

RAL 5022 Paint

Night blue

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0005022

RAL 5022 Paint Polyester
Night blue RAL 5022
M0006018 RAL 6018 Paint

M0006018

RAL 6018 Paint

Yellow green

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Smooth gloss
Close

M0006018

RAL 6018 Paint Polyester
Yellow green RAL 6018

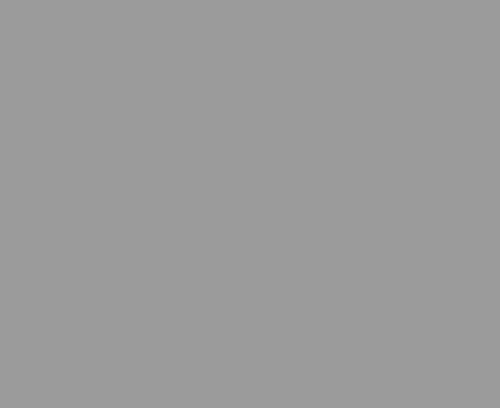

M0007004 RAL 7004 Paint

M0007004

RAL 7004 Paint

Signal gray

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0007004

RAL 7004 Paint Polyester
Signal Grey RAL 7004
M0007016 RAL 7016 Paint

M0007016

RAL 7016 Paint

Anthracite

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0007016

RAL 7016 Paint Polyester
Anthracite RAL 7016
M0007021 RAL 7021 Paint

M0007021

RAL 7021 Paint

Black gray

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0007021

RAL 7021 Paint Polyester
Black grey RAL 7021
M0007035 RAL 7035 Paint

M0007035

RAL 7035 Paint

Light gray

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
  • Polyester / Matt smooth
  • Epoxy-Polyester / Leatherette
Close

M0007035

RAL 7035 Paint Polyester
Light gray RAL 7035
M0007037 RAL 7037 Paint

M0007037

RAL 7037 Paint

Dusty gray

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Leatherette
Close

M0007037

RAL 7037 Paint Polyester
Dusty Grey RAL 7037
M0007040 RAL 7040 Paint

M0007040

RAL 7040 Paint

Window gray

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Epoxy-Polyester / Fine texture
  • Polyester / Smooth
Close

M0007040

RAL 7040 Paint Epoxy polyester
Window gray RAL 7040
M0009002 RAL 9002 Paint

M0009002

RAL 9002 Paint

Off-white

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Epoxy polyester / Fine texture
Close

M0009002

RAL 9002 Paint Epoxy polyester
Off-white RAL 9002
M0009003 RAL 9003 Paint

M0009003

RAL 9003 Paint

Signal white

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Epoxy-Polyester / Fine texture
  • Epoxy-Polyester / Semi Gloss
Close

M0009003

RAL 9003 Paint Epoxy polyester
Signal white RAL 9003
M0009005 RAL 9005 Paint

M0009005

RAL 9005 Paint

Jet black

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Epoxy polyester / Matt fine texture
  • Polyester / Smooth semi-gloss
Close

M0009005

RAL 9005 Paint Epoxy polyester
Black RAL 9005
M0009006 RAL 9006 Paint

M0009006

RAL 9006 Paint

Silver metallic

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Matt fine texture
  • Polyester / Smooth
Close

M0009006

RAL 9006 Paint Polyester
Silver metallic RAL 9006
M0009007 RAL 9007 Paint

M0009007

RAL 9007 Paint

Gray aluminum

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Matt smooth
Close

M0009007

RAL 9007 Paint Polyester
Grey aluminium RAL 9007
M0009010 RAL 9010 Paint

M0009010

RAL 9010 Paint

Pure white

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M0009010

RAL 9010 Paint Polyester
Pure white RAL 9010
M0009011 RAL 9011 Paint

M0009011

RAL 9011 Paint

Graphite black

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Satin semi gloss
Close

M0009011

RAL 9011 Paint Polyester
Graphite black RAL 9011
M001P200 Pantone 200 Paint

M001P200

Pantone 200 Paint

Traffic yellow

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Smooth semi-gloss 85%
Close

M001P200

Pantone 200 Paint Polyester
Red Pantone 200
M001P295 Pantone 295 Paint

M001P295

Pantone 295 Paint

Traffic yellow

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Smooth semi-gloss 85%
Close

M001P295

Pantone 295 Paint Polyester
Dark blue Pantone 295
M001P301 Pantone 301U Paint

M001P301

Pantone 301U Paint

Traffic yellow

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Smooth semi-gloss 85%
Close

M001P301

Pantone 301U Paint Epoxy polyester
Pale blue Pantone 301U
M001P367 Pantone 367 Paint

M001P367

Pantone 367 Paint

Pale green

Optional powder paint color we keep in stock. No minimum order quantity or extra cost for painting standard parts in this color.

Paint materials/finishes available:

  • Polyester / Fine texture
Close

M001P367

Pantone 367 Paint Polyester
Pale green Pantone 367
