5500-25

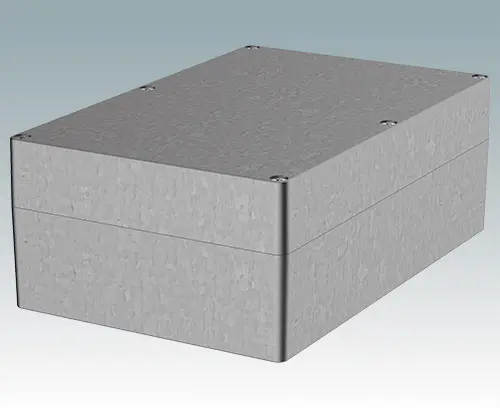

Sealed Diecast Enclosure

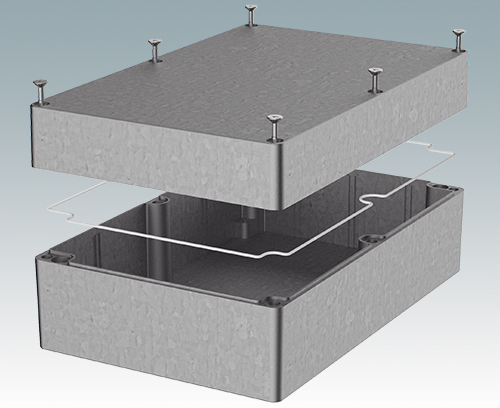

Highly durable and shock resistant diecast enclosure sealed to IP 65 (NEMA 4). Secure tongue and groove assembly. Screw bosses provided in the base for fixing PCBs and assemblies.

Version

Supply

Base section, lid section, M4 lid screws (x4), M3 PCB mounting screws (x2), spring washer (x2)

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Color
Natural finish
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
8.740″
222 mm
Width
5.709″
145 mm
Height
3.228″
82 mm
PCB length, base
4.567″
116 mm
PCB width, base
5.197″
132 mm

Drawings

3D Models

Weight/1 part
1133 g
Customs tariff number
(METCASE product)
8473302000
Country of manufacture
Taiwan
