Combimet 19" rack mount enclosures range extended

Combimet 19" rack cases 4U & 6U

February 2014

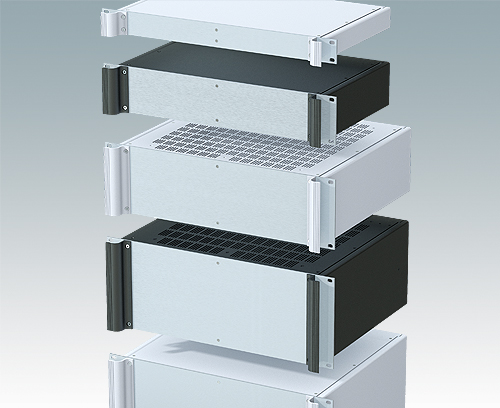

New 4U and 6U models

METCASE has extended its COMBIMET 19” rack mount enclosures range with new 4U and 6U standard sizes.

METCASE launched COMBIMET last year in 1U, 2U and 3U as standard – 4U, 5U and 6U were available only as custom orders.

Now it has added 4U and 6U as standard following increasing customer demand for these sizes. Two depths are available across the range: 10.43” and 14.37”.

COMBIMET’s winning combination of quality, features and value has quickly made it METCASE’s most popular range of 19” rack cases.

Typical applications include networking, communications and test and measurement equipment.

COMBIMET conforms to DIN 41494 and IEC 297-1 standards for 19” equipment.

Cases are available with vented or unvented top and base sections. Removable top, base and rear panels allow full access to components. The 19” front panel is fixed – making COMBIMET more cost effective.

The base panel includes holes for PCB mounting pillars or the internal mounting plate kit (accessory). The rear panel is recessed.

Ergonomic handles make it easy to remove each case from the rack and reinstall it.

Standard colors are Light Gray (RAL 7035) or Black (RAL 9005) for the case body and handles. The front panel is clear anodized.

All the fabricated parts are fitted with M4 earth studs for electrical continuity. Cases are shipped fully assembled. Prices start at for the new models start at $177.

Accessories include an internal mounting plate, PCB mounting pillars and a rack mounting kit.

Custom options include special sizes; internal mounting plates and brackets; CNC milling, drilling and punching; painting and anodizing plus silk-screen or tampo printing of legends and logos.

View COMBIMET 19" range >>
