Specify Metal Electronic Enclosures With Cutouts… The Easy Way

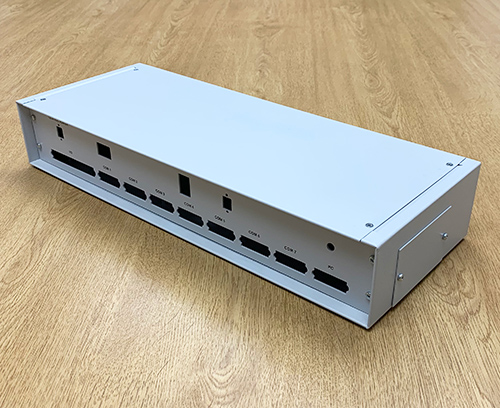

Order your enclosures with cutouts

May 2019

Now it’s never been easier to specify metal electronic enclosures custom cutouts – thanks to our new mobile-friendly website. Previously you would specify a standard instrument enclosure or 19” rack case then call our engineers and ask about cutouts (and you still can – we always welcome phone inquiries). But now there’s a new way that saves you time. Here’s how it works…

Specify Cutouts In Five Easy Steps

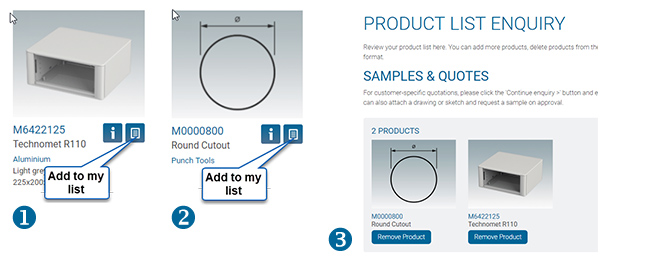

Easy steps to specifying cutoutsbl1905-specifying-enclosure-cutouts-niot-b-frbl1905-specifying-enclosure-cutouts-niot-b-de
  • Choose your preferred model from our wide range of 19” rack cases and instrument enclosures
  • Specify the individual product(s) by clicking the list icon (1)
  • Go to the Custom Enclosures page, click on CNC Punching and Folding
  • Choose your cutouts – add them to your list just like products by clicking the list icon (2)
  • Submit your enquiry (3) – we will reply by email (to confirm receipt) then contact you to discuss your requirements.

Cutouts, Punching and Folding Available

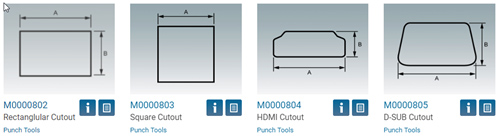

bl1905-specifying-enclosure-cutouts-niot-c-debl1905-specifying-enclosure-cutouts-niot-c-frHuge range of standard cutouts

You can specify 11 different standard punched cutouts using the new method:

  • Round – from 0.039" to 3.341" diameter
  • Obround – from 0.137" x 0.062" to 2.952" x 1.181"
  • Rectangular – from 0.118" x 0.039" to 4.203" x 1.427"
  • Square – from 0.079" to 1.969"
  • HDMI – 0.234" x 0.606" and 0.268" x 0.642"
  • D-Sub – from 0.771" x 0.413" to 0.451" x 1.180"
  • SD – from 0.195" x 0.173" to 2.205" x 2.087"
  • DD – from 0.157" x 0.112" to 1.378" x 1.189"
  • Keyway – from 0.248"  to 0.629" (diameter)
  • Ventilation louvre – 1.949" x 0.591" and 3.071" x 0.618"
  • Corner radius – from 0.098" to 0.591".

Click on the i-icon next to each cutout shape for full details of all the punch sizes available as standard. Need something different? We can source custom-sized punches. And we can machine fully bespoke cutouts – just ask us.

View all punches here >>

Get Expert Advice On Metal Electronic Enclosures

We make specifying customized metal enclosures easy. Simply…

Need help? Contact METCASE for specialist advice on metal electronic enclosures.
