HOW TO SPECIFY TECHNOMET-CONTROL FOR HMI AND MACHINE-CONTROL EQUIPMENT

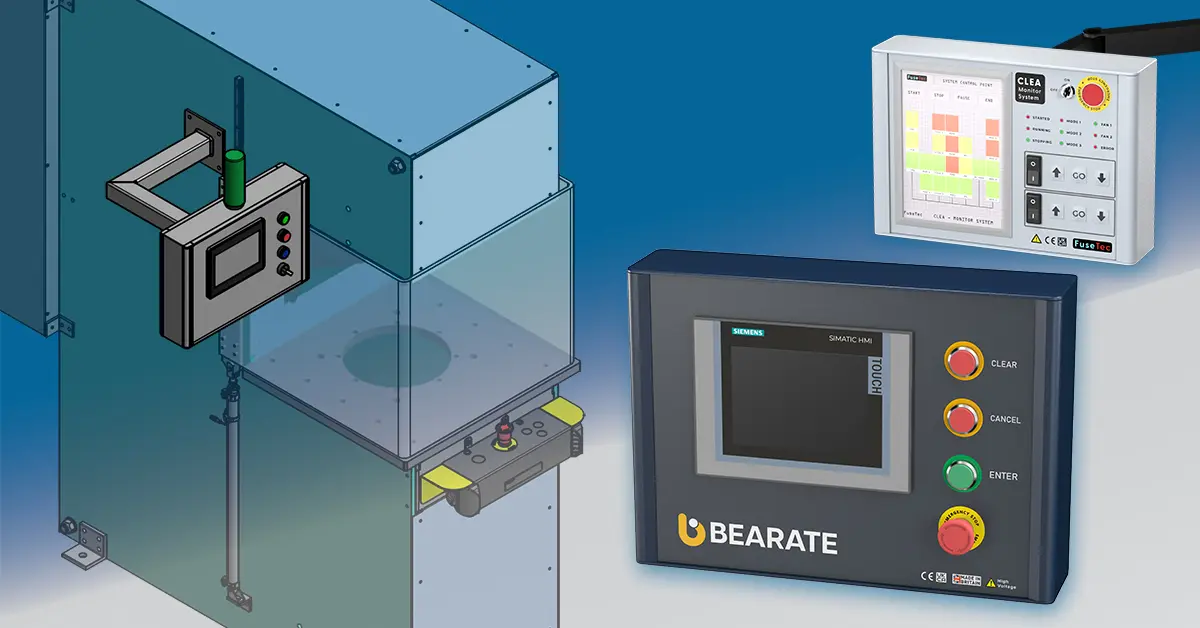

TECHNOMET-CONTROL enclosures for HMI and machine control

ELEGANT…ADVANCED…AFFORDABLE

In the world of automation and machine building, superior quality usually means high prices – as it does in so many other aspects of life. But what if it didn’t? What if you could specify advanced modern enclosures at a surprisingly attractive price point?

What if you could house your latest HMI touch screen technology in an elegant aluminum enclosure fabricated to fine tolerances? Such an enclosure – one that’s visibly better than its rivals, one that offers smart technical features – usually comes at a premium. But what if it didn’t?

Welcome to the world of TECHNOMET-CONTROL – a VESA-mount/wall-mount/pole-mount enclosure that delivers state-of-the-art features and aesthetics at an unexpectedly pleasant price point. How? Like this…

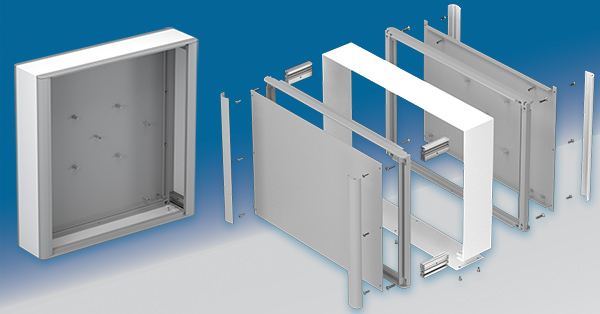

TECHNOMET-CONTROL modular aluminum enclosures

EXCELLENCE THROUGH MODULAR COMPONENT DESIGN

TECHNOMET-CONTROL looks expensive because its diecast front and rear bezels fit flush with the main case body for a smooth appearance; snap-on trims conceal all the assembly screws. But inside is a clever extrusion system that makes the enclosures cost-effective to manufacture in standard and bespoke sizes – and easy to customize to your exact requirements.

That’s just the start though: the assembly extrusions also feature M3 holes and guide rails for holding internal plates. And there are also M3 PCB pillars on the rear panel – so you can choose how best to install your electronics. The base panel on the underside is easily removable for cable entry. This panel – like all the others – is fitted with an M4 threaded pillar for earth connections.

This is the proven TECHNOMET system – based on a successful design ethos that has led to the swift expansion of the range. TECHNOMET-CONTROL follows the success of TECHNOMET and TECHNOMET SL (sloping-front) instrument enclosures, TECHNOMET 19" (84HP) desktop mini-racks and TECHNOMET 10.5" for half-width (42HP) electronics.

This is not without precedent here at METCASE. Making excellence more affordable has also been the hallmark of our COMBIMET 19" rack cases. Yes, they’re our most versatile, customizable rack cases…but their simple design also makes them the most cost-effective in our 19" range. So you get the best of both worlds. This is the thinking that led to the creation of first TECHNOMET and then the other models that share its name.

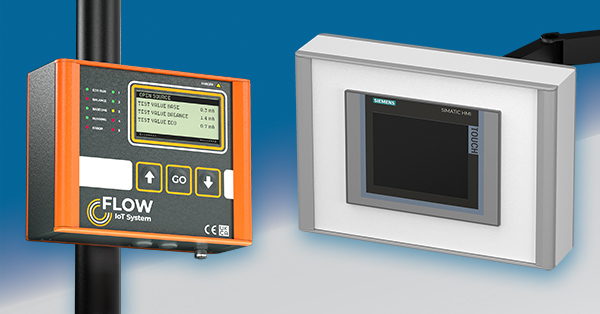

VESA- and pole-mount HMI/control enclosures

TECHNOMET-CONTROL IN YOUR WORLD

Industrial machine control, HMI, automation and factory processing are key applications for TECHNOMET-CONTROL. Especially with the rise of IIoT. But these enclosures can also be specified for security systems, test and measurement, point-of-sale and detection. The standard VESA MIS-D 100 mounting on the rear makes it quick and easy to fit them to suspension arms and brackets with 100 x 100 mm mounting hole positions.

TECHNOMET-CONTROL is equally at home on poles (⌀1.97" or larger) thanks to a mounting bracket (accessory) with a large central aperture for cables. The accessory range also includes wall mounting kits which – like the pole mounting bracket – are manufactured from mild steel (CR4) for added strength. Alternatively, we can modify the unit to accept a suspension arm via the base panel, rather than via the rear panel as standard.

The enclosures are offered in four standard plan sizes (9.06” x 7.09” to 16.54” x 11.81”) to house Siemens TP displays (KTP400 to TP1200) and also screens by manufacturers including Beckhoff, Beijer (X2), B&R and many more. All the enclosures are 3.74” deep as standard, giving them a slim profile. But you can specify them in custom depths if you prefer. That’s the beauty of TECHNOMET-CONTROL – like many other METCASE enclosures, it can be specified in custom sizes in all three dimensions.

View the TECHNOMET-CONTROL range >>

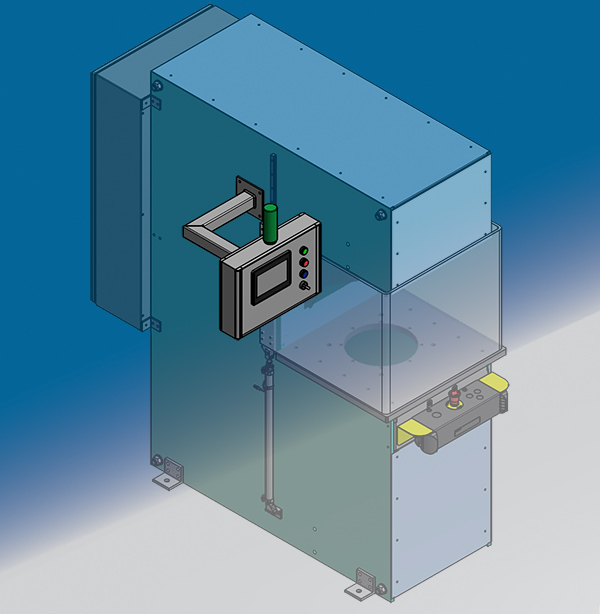

TECHNOMET-CONTROL machine control enclosure

CUSTOMIZED TECHNOMET-CONTROL FOR MACHINE BUILDING

In a recent contract, we manufactured a customized TECHNOMET-CONTROL to fit a right-angle bracket bolted to the side of a machine used for bearing assembly and greasing. No customizing was required to mount the enclosure to the right-angle bracket – it fitted directly using the standard VESA MIS-D 100 x 100 mm fixing points on the rear panel. Our customization work included machining the enclosure to accommodate:

  • a 7" Turck Banner TX707-P3CV01 HMI PLC touch screen (800 x 480 mm)
  • pushbuttons and a switch
  • a large green beacon on the top panel
  • cable entry via the rear panel.

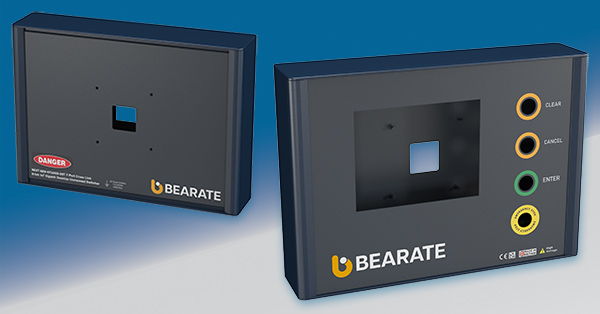

Fully customized TECHNOMET-CONTROL HMI enclosure

SPECIFY CUSTOMIZED ENCLOSURES FOR MACHINE CONTROL

All METCASE enclosures – not just TECHNOMET-CONTROL – can be supplied fully customized so they can go from your Goods In to your production line, ready for the installation of your electronics.

In-house customization services at METCASE include:

  • bespoke sizes (available in all three dimensions for TECHNOMET-CONTROL, TECHNOMET, TECHNOMET SL, TECHNOMET 19", TECHNOMET 10.5" and various other models)
  • custom front panels – the typical minimum order quantity is 10 pieces, based on the size of the panel
  • CNC machining – punching, folding, milling, drilling and tapping
  • fixings and inserts – choose from a wide selection, including threaded inserts and studs
  • custom colors – powder coating, painting and anodizing
  • photo-quality digital printing of legends, logos and graphics.

View METCASE customization services >>

GET EXPERT TECHNICAL ADVICE ON HMI ENCLOSURES

Contact METCASE for advice on specifying the best standard or customized aluminum electronic enclosures for machine control, HMI, automation, factory processing and more. Register for 3D models (if you haven’t done so already) so you can see how your electronics will look in your customized enclosure.
