M5093006 Side arm kit
Scroll

M5093006

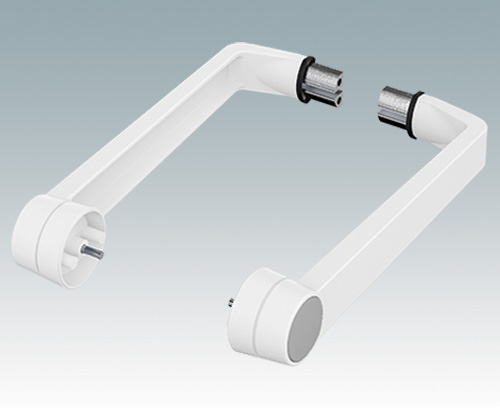

Side arm kit

For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure requires three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminum handle profile fits between these two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colors. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply

2 side arms (RAL 9016), 2 push-buttons (RAL 7042), 2 fastenings kits

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5093006

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

System components to complete

M50936-xxx Handle profile, RAL 9016

M50936-xxx

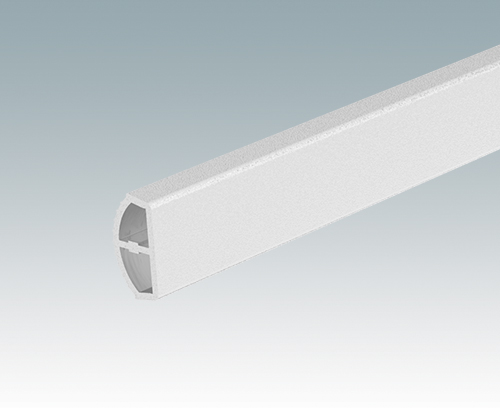

Handle profile, RAL 9016

Aluminum handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50936-324 with the handle painted in RAL 9016. If the enclosure dimension is 350.5 mm the part number would be M50936-324.5 with the handle painted in RAL 9016.

Supply Handle profile

Close

M50936-xxx

Handle profile, RAL 9016
product added to your basket
Aluminum
Traffic white RAL 9016
  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Material
Zinc
Color
Traffic white RAL 9016
Standards
REACH compliant
RoHS compliant

Catalog Pages

Drawings

3D Models

Weight/1 part
0.68 kg
Customs tariff number
(METCASE product)
79070000
Country of manufacture
U.K.
