19" Front Panels

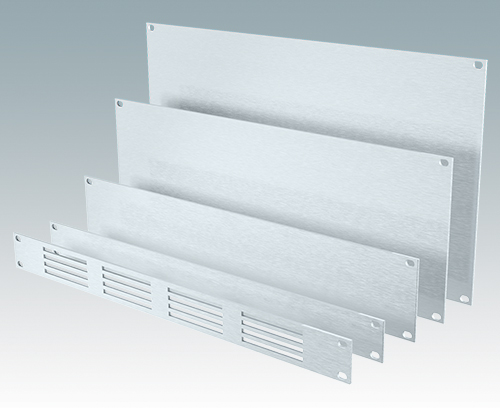

  • 19" standard front panels in 10.5" and 19" widths, manufactured in 3 mm anodized aluminum
  • Heights from 1U to 6U (other sizes to order). Ventilated 1U version
  • Conform to DIN 41494 and IEC 297-1
  • Punching and digital printing services available.

Order your own fully customized version learn more here >>

Application fields

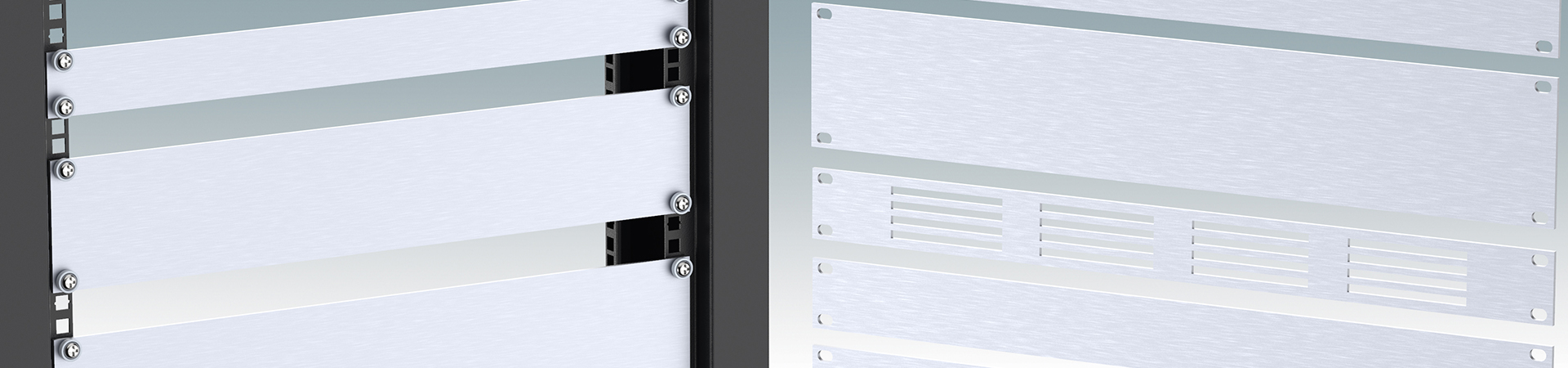

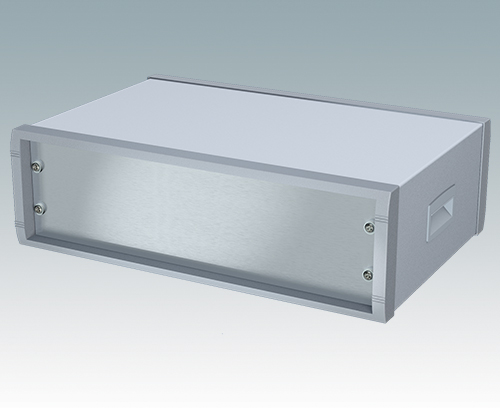

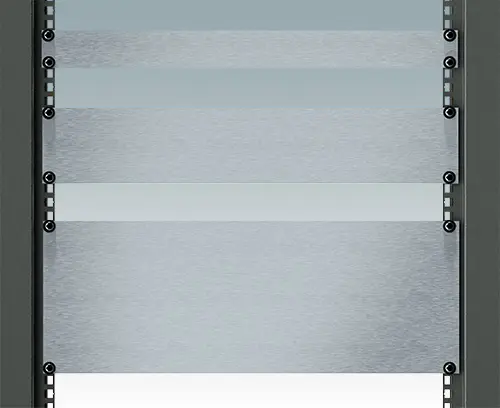

Standard front panels for mounting in 19 inch racks and desktop enclosures. Suitable for mounting controls, displays and connectors, or as blanking panels between rack mounted equipment. The ventilated 1U panel aids rack cooling.
  • Browse Full List
  • Catalog Documents
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your list
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light gray plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your list
Light gray RAL 7035

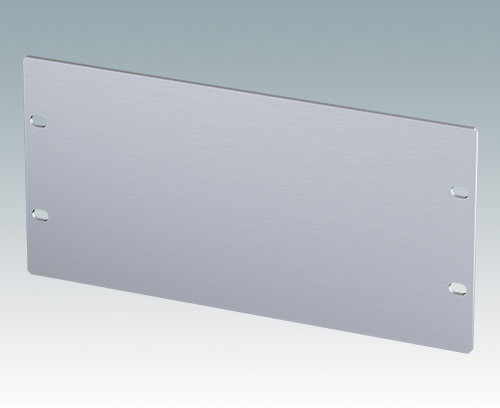

M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6010001

Front panel 3Ux10.5"
product added to your list
Aluminum
Matt anodized
10.60″x0.12″x5.22″

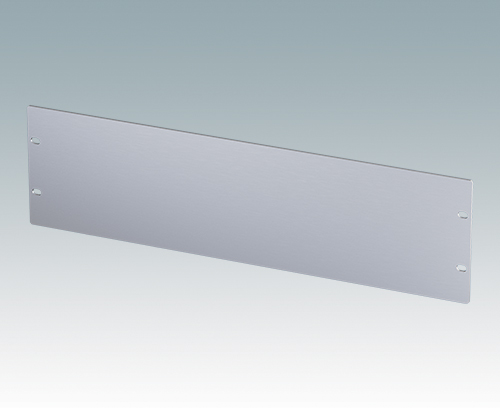

M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6019001

Front panel 3Ux19"
product added to your list
Aluminum
Matt anodized
19.00″x0.12″x5.22″
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your list
Aluminum
Matt anodized
19.00″x0.12″x1.72″
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your list
Aluminum
Matt anodized
19.00″x0.12″x1.72″

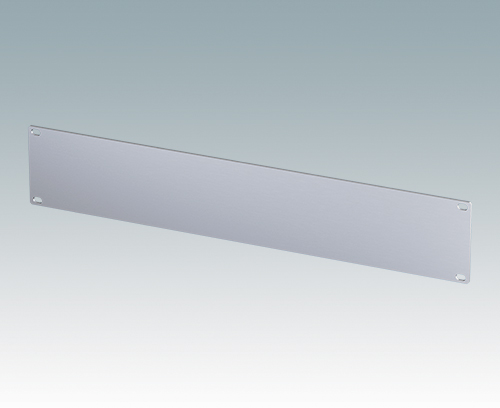

M6019020 Front panel 2Ux19"

M6019020

Front panel 2Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019020

Front panel 2Ux19"
product added to your list
Aluminum
Matt anodized
19.00″x0.12″x3.47″

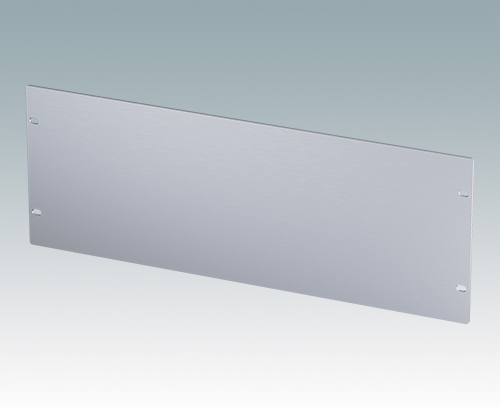

M6019040 Front panel 4Ux19"

M6019040

Front panel 4Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019040

Front panel 4Ux19"
product added to your list
Aluminum
Matt anodized
19.00″x0.12″x6.97″

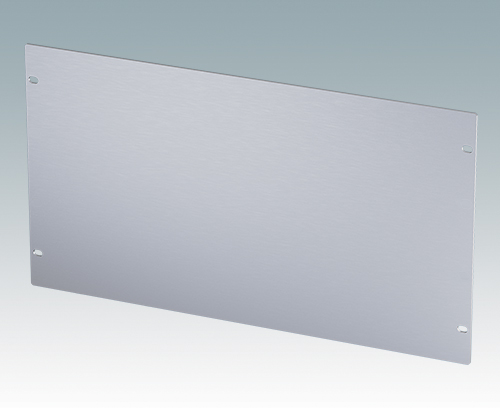

M6019060 Front panel 6Ux19"

M6019060

Front panel 6Ux19" Anodized aluminum front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019060

Front panel 6Ux19"
product added to your list
Aluminum
Matt anodized
19.00″x0.12″x10.47″
